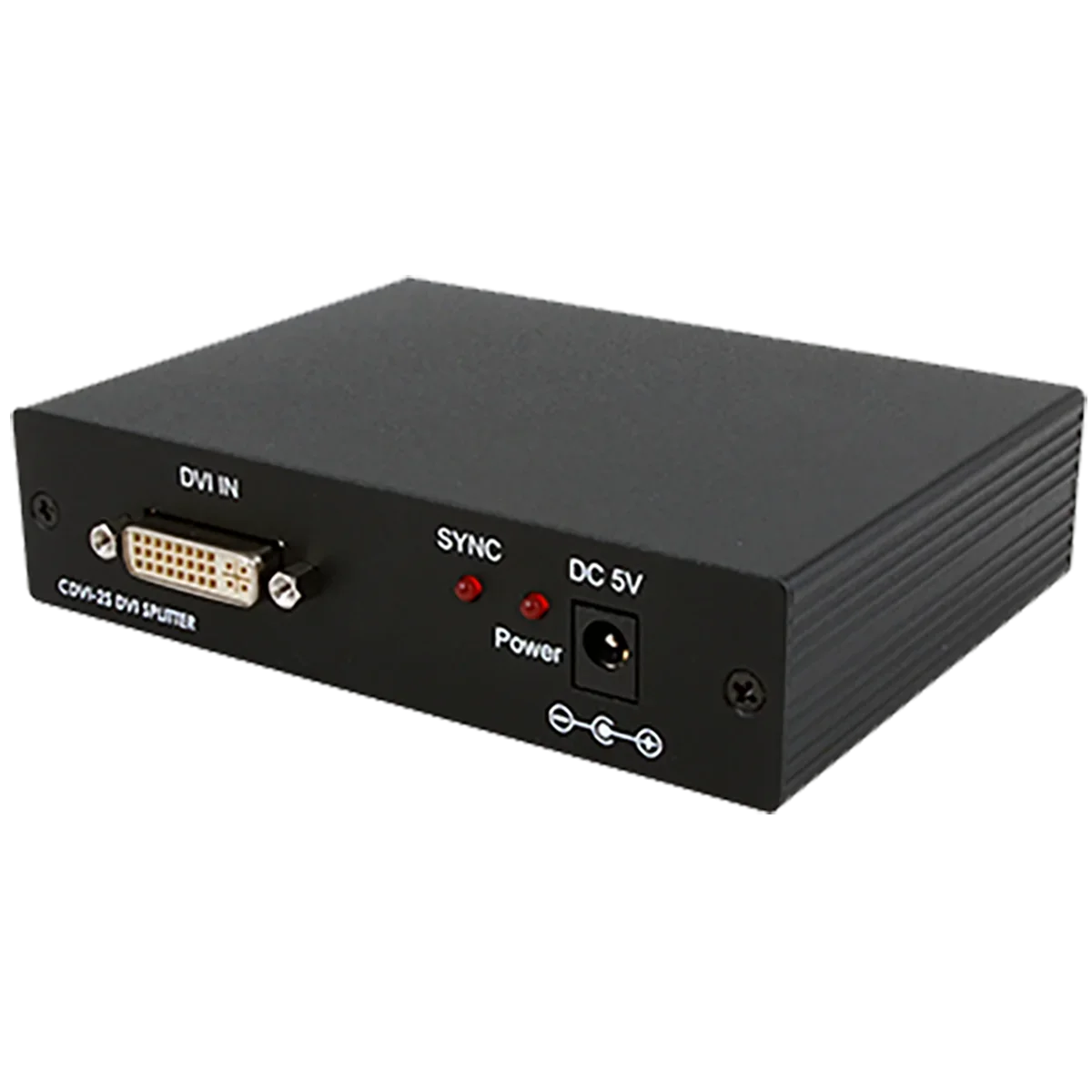

1 by 2 DVI Splitter

Compatible with HDMI signal (with adaptor cable) , Supports a wide range of PC and HDTV resolutions from VGA to WUXGA and 480p to 1080p , Can be cascaded up to 3 layers , The device will read and record the EDID of output 1 and then send it to the source device

Hersteller-Nr.	CDVI-2S
Hersteller	Cypress Technology

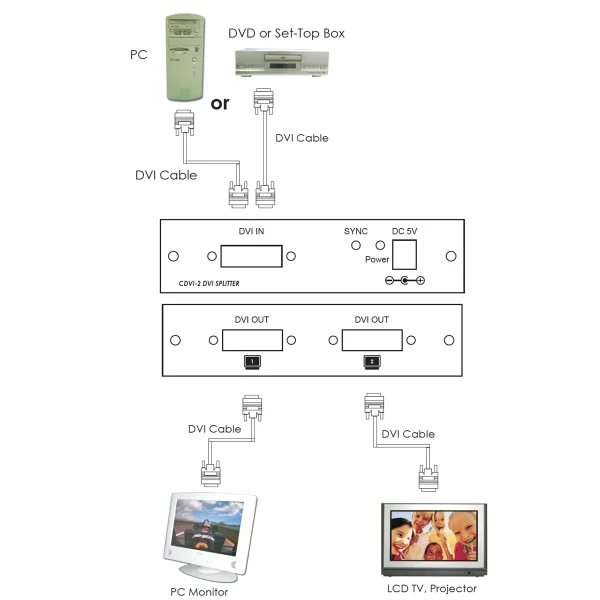

The DVI Splitter series are high performance, HDCP compliant DVI distribution amplifiers. It allows one DVI signal source to be split to two, four or eight identical buffered outputs for connecting to up to eight DVI displays simultaneously. These models can be used to transfer HDMI signal by using HDMI to DVI adaptor or cable. Each of the buffered outputs can be run up to 15 meters and can be cascaded

Interfaces

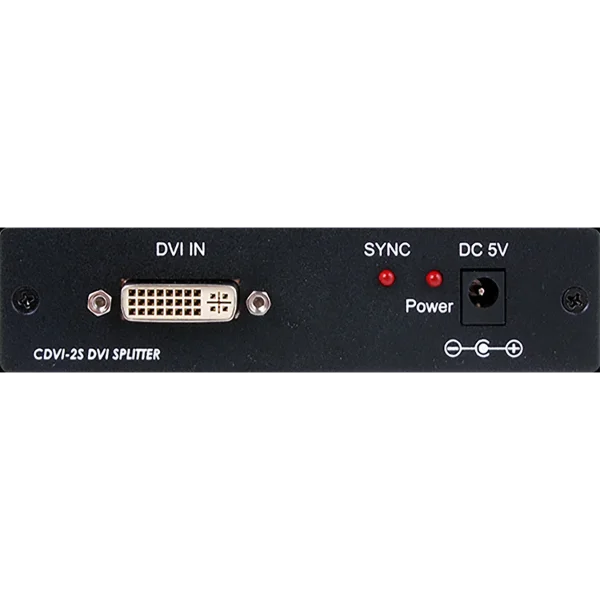

Input Port	1DVI

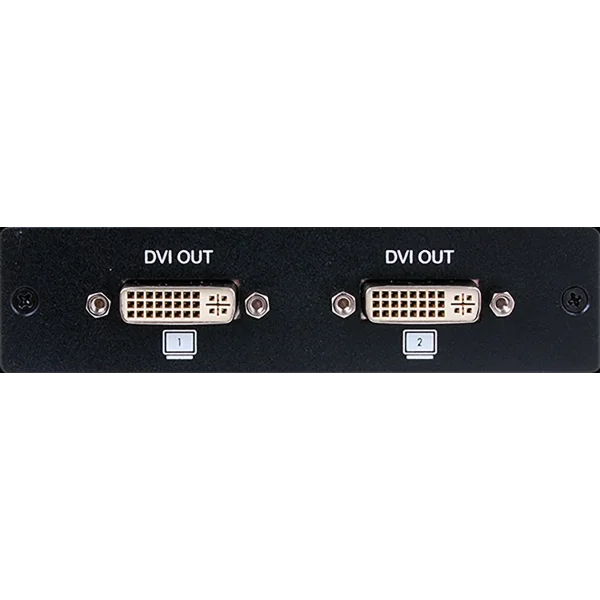

Output Port	2DVI

Video
HDMI Compliance	HDMI 1.3 (DVI 1.0)
HDCP Compliance	HDCP 1.4
Input Signal Types	1080p60 12-bit
Output Signal Type	1080p60 12-bit

Resolutions
Maximum Input	DVI	1920×1080p@60 1920×1200p@60RB
Maximum Output	DVI	1920×1080p@60 1920×1200p@60RB

Power
Power Supply	5V /2.6A DC
Power Consumption	3.5W

Enclosure
Chassis Material	Metal
Chassis Color	Black
Dimensions (W×H×D)	102 mm × 30 mm × 125 mm
Weight	280g

Field Firmware Update
Interface	PCB on board, uses RS232

Ordering Information
Model No.	Product Description
CDVI-2S	1 by 2 DVI Splitter

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
