1 by 4 Display Port Splitter

Supports DisplayPort specification V1.1a , Deep color video up to 12bit, resolution support up to 2560 x 1600 , Supports audio up to PCM 7.1(32-192kHz Fs sample rate), Supports pixel component formate with RGB; YCbCr 422; YCbCr 444, Color sapce conversion between RGB and YCbCr color space , Supports 1.62/2.7 Gbps data rate (Low/High bit rate), Supports flexible 1/2/4 lanes configurations; Full 10.8Gbps data ratesupport (4lanes at 2.7Gbps) , Supports EDID switch and setting Note: This device supports only DisplayPort mode, it cannot connect DP to HDMI level shift convert.

Hersteller-Nr.	CDP-14C
Hersteller	Cypress Technology

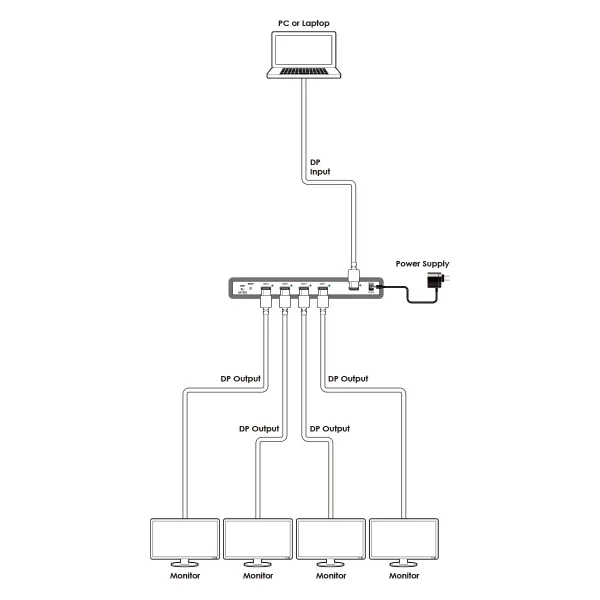

The DisplayPort (DP) 1 by 4 splitter allows single DP source to be display on four DP input monitors simultaneously. It supports video resolution up to 2560 x 1600 and audio up to PCM 7.1 switch provides a fast switch between source and display and save EDID’s reading sink time to allow image display properly. The DP 1 by 4 splitter is an ideal device for your DP source to multi display

Interfaces
Input Port	1 Displayport
Output Port	4 x DisplayPort

Video
HDCP Compliance	HDCP 1.3
Input Signal Types	2560 x 1600(Reduced Blank) 60Hz
Output Signal Type	2560 x 1600(Reduced Blank) 60Hz

Resolutions
Maximum Input	Displayport	2560 x 1600(Reduced Blank) 60Hz
Maximum Output	Displayport	2560 x 1600(Reduced Blank) 60Hz

Power
Power Supply	5V / 3A DC
Power Consumption	7W

Enclosure
Chassis Material	Aluminum
Chassis Color	Black
Dimensions (W×H×D)	270 mm x 29 mm x 124.5 mm
Weight	770g

Ordering Information
Model No.	Product Description
CDP-14C	1 by 4 Display Port Splitter

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
