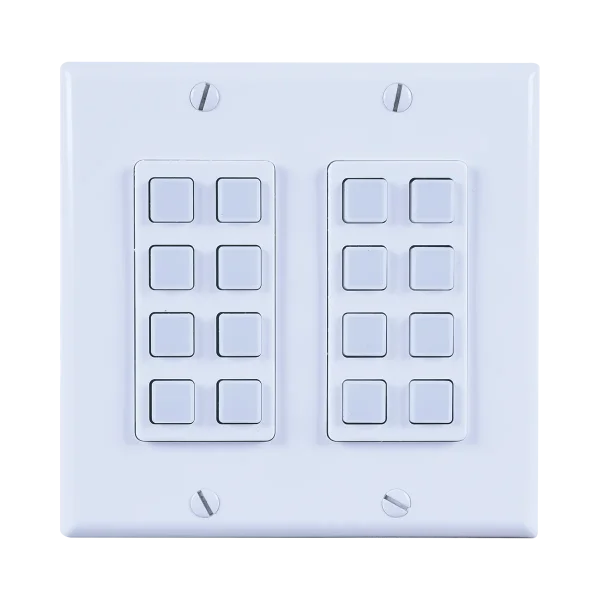

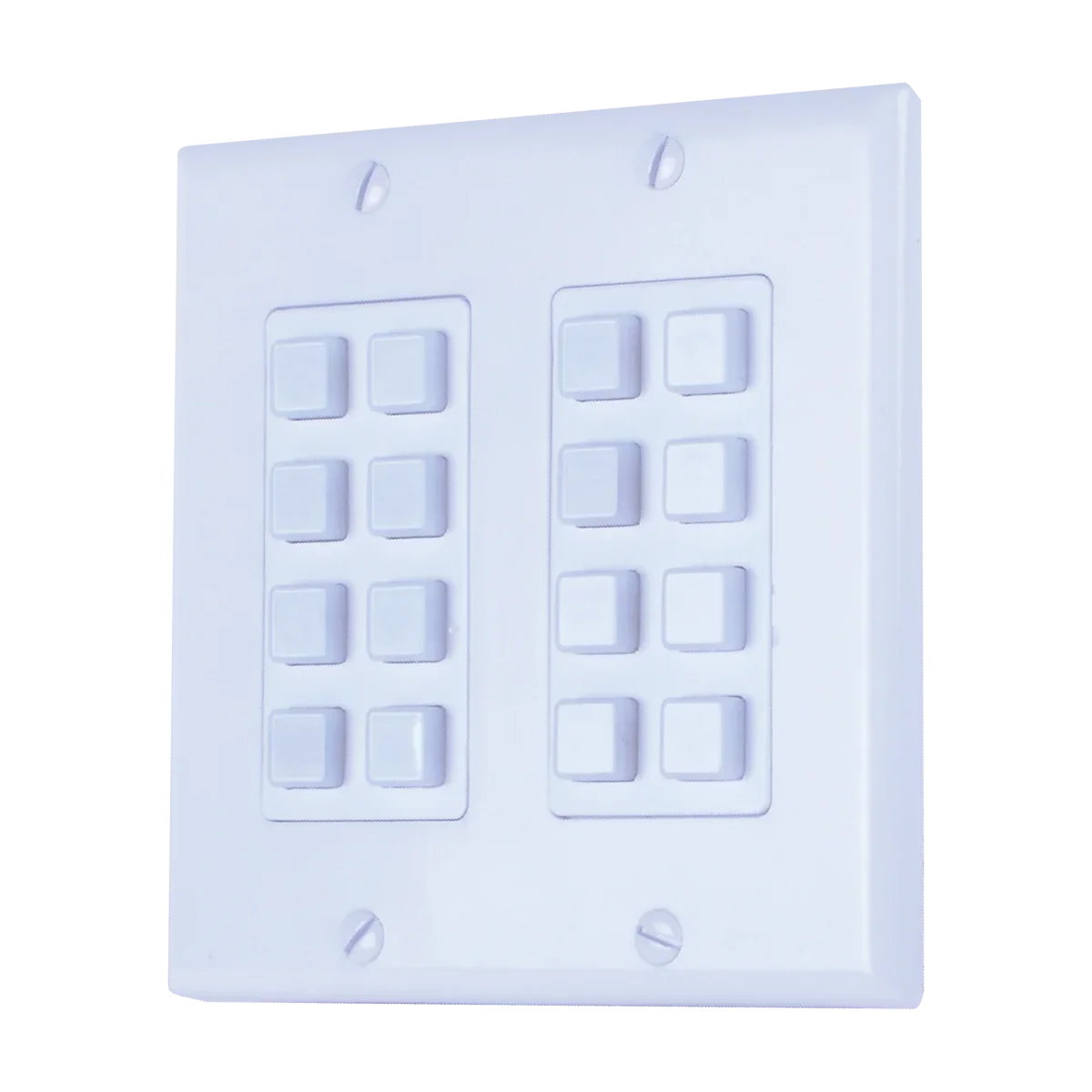

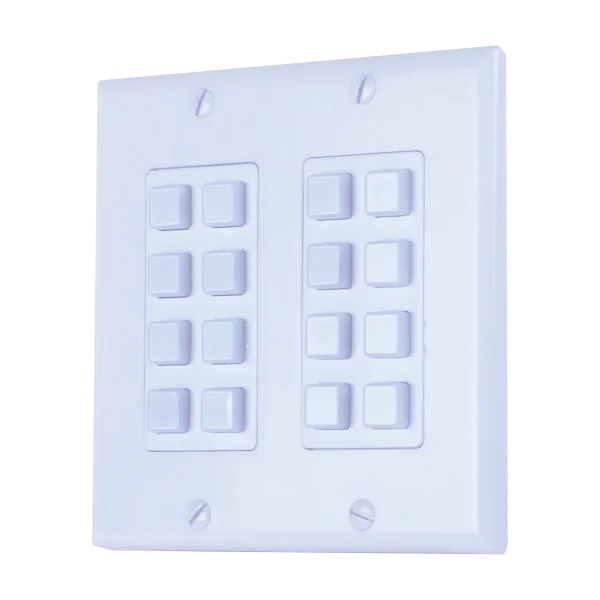

16-Button Control Keypad

US 2 or 1 gang wall plate design with adjustable LED brightness , 64 (32 on the 1 gang) macros for controlling user equipment , Up to 128 total commands can be stored and used across all macros in the system (up to 16 per macro) , Supports switchable relays to control compatible devices , Supports time and date macro scheduling (single and recurring) , Supports condition checking within macro commands for expanded macro design flexibility , Supports 48 hours of backup power for the internal clock and schedule function to protect against blackouts and temporary power loss , Supports customizable daylight savings time settings for scheduling , Can be powered by an Ethernet switch that supports the IEEE 802.3af PoE standard (Optional) , Controllable via keypad, Telnet and WebGUI

Hersteller-Nr.	CDPW-K1UD
Hersteller	Cypress Technology

These keypads are versatile and useful products for both system integrators and smart home users alike. These keypads can send commands to any Ethernet controlled or relay controllable device in your system. With up to 16 physical macro buttons and up to an additional 48 software macro buttons (8 physical and 24 software buttons on the 1 gang version) you can pre-program and recall up to 64 (32 on the 1 gang version) distinct macros providing for complete control over your audio and video environment. The soft and colorful LED buttons are suitable for all environments and PoE (Power over Ethernet) support allows for creative placement of the keypad within your space without needing to be concerned about keeping it near a live power source. Additionally, the integrated clock and calendar based scheduling feature allows you to trigger macros to control devices within your installation at a specific time, or on a recurring schedule.

Interfaces
Control Interface	16×Buttons

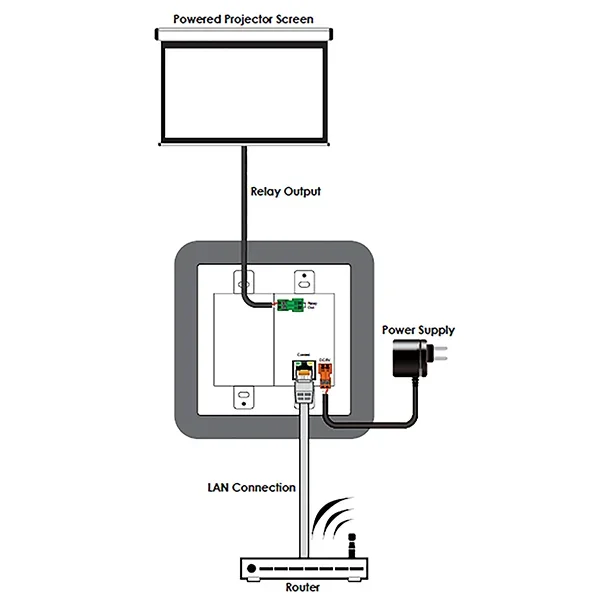

Pass-through Ports	1×Power Relay (2-pin Terminal Block)
Control Port	1×LAN (RJ-45)
Service Port	1×USB 2.0 (Mini B)

Power
Power Supply	PoE (802.3af) from LAN Port or 5V/2.6A DC
Power Consumption	6.1W

Enclosure
Chassis Material	Plastic, Metal (Steel)
Chassis Color	White
Dimensions (W×H×D)	115.9mm×114.3mm×35.5mm [Case Only] 115.9mm×114.3mm×38mm [All Inclusive]
Weight	238g

Field Firmware Update
Interface	WebGUI

Ordering Information
Model No.	Product Description
CDPW-K1UD	16-Button Control Keypad

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
