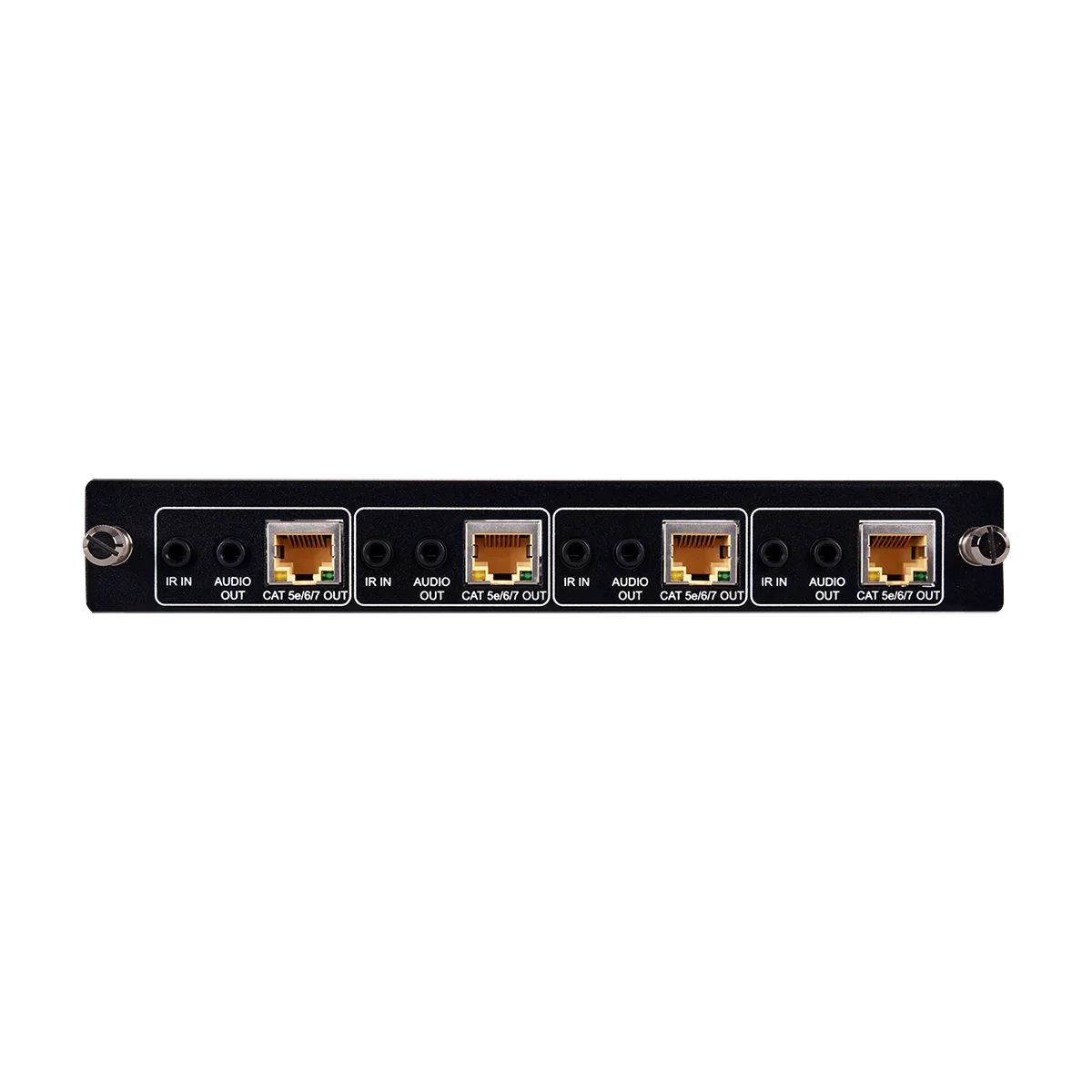

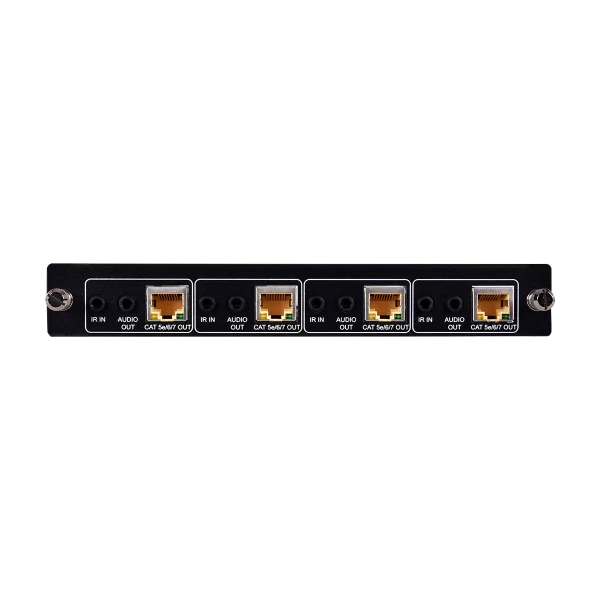

4-Port HDBT Output Card

4 HDBT output ports paired with IR output and analog stereo output ports, Supports 4K HDR at 24Hz (4:4:4) and 60Hz (YUV 4:2:0) with up to 12- bit color, Supports 12-bit Deep Color up to 1080p@60Hz, Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream, This card’s features are controlled by the modular matrix

Hersteller-Nr.	COUT-4C
Hersteller	Cypress Technology

This 4-port HDBT output Card provides 4 independent high-bandwidth HDBT outputs, paired with IR input and analog stereo outputs. Any available input on the connected modular matrix can be freely routed to each output of the card .

Interfaces

Input Port

4 HDBT (RJ-45)

4 Optical audio

Control I/O

4 IR Extender (3.5mm)

Video
HDBT Compliance	HDBT 4K@30
HDCP Compliance	2.x
Input Signal Type	4096x2160p@60 8bit YUV 4:2:0
		Resolutions
Maximum Input	HDBT	4096×2160p@60 YUV 4:2:0

Audio
HDBT	LPCM (8 Channels), Bitstream, High Bit Rate Bitstream
Optical In	LPCM (8 Channels), Bitstream, High Bit Rate Bitstream

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	187.4mm×29.1mm×344.9mm [Case Only] 197.5mm×29.1mm×364.6mm [All Inclusive]
Weight	458g
