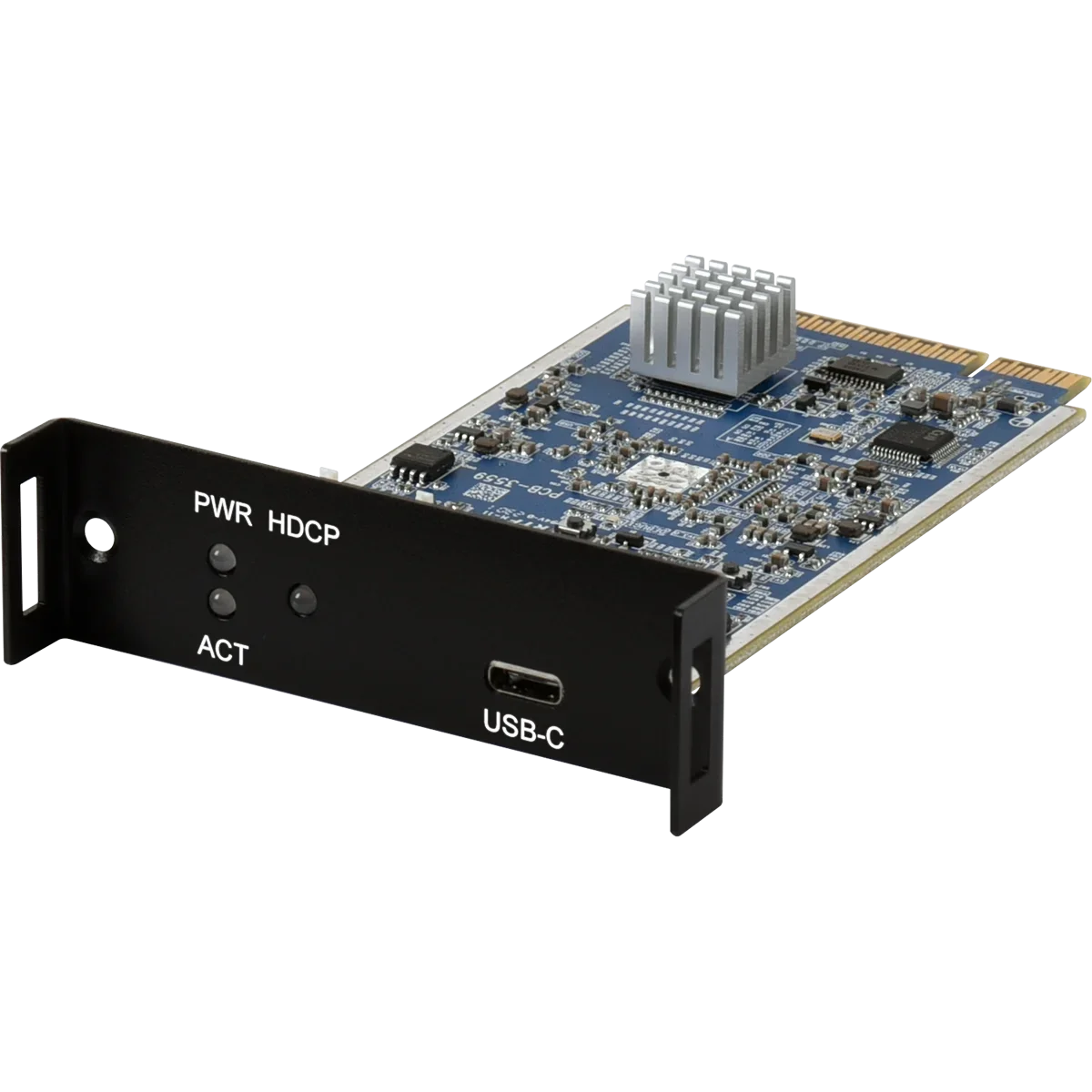

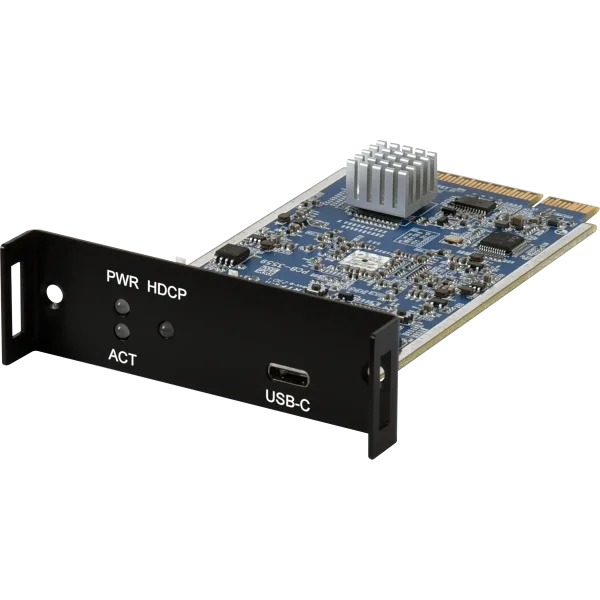

4K30 USB-C Video Capture Module Card

Supports PC video capturing for live streaming on Facebook, YouTube or Twitch channels via OBS , Supports video capturing for communication software , An useful capture tool for meeting room and classroom application

Hersteller-Nr.	SDM-U320C
Hersteller	Cypress Technology

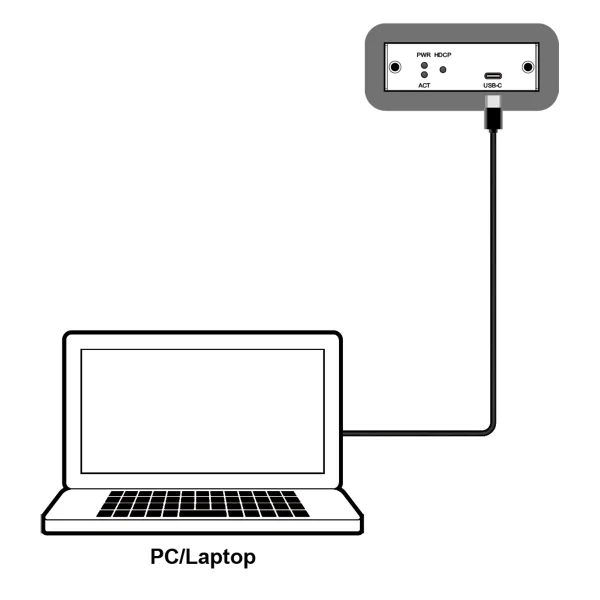

The 4K30 USB-C Video Capture Module Card is able to connect to a PC or laptop via USB-C interface for capturing or recording 4K30 video signals. The module design is compatible with CYP module slot, offering flexible options to customers. This module card supports Windows, macOS, and Linux systems.

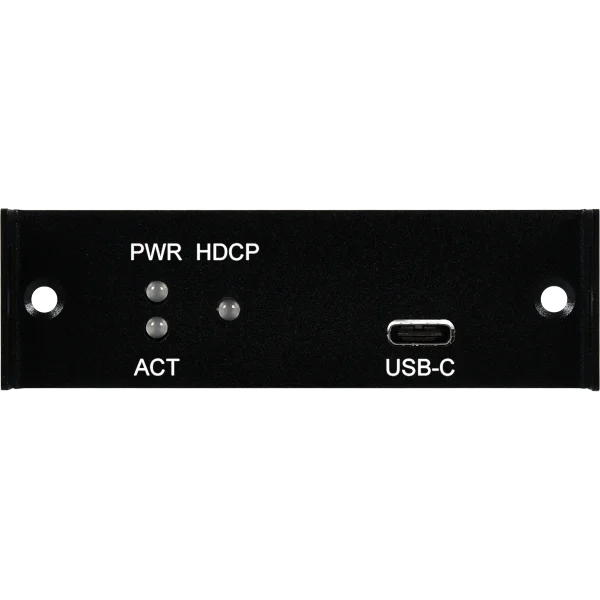

Interfaces
Input Port	1×CYP Module (Edge Connector)
Output Port	1 USB (Type-C)
Control I/O	1 USB (Type-C)

Video
HDMI Compliance	HDMI 2.0 (Edge Connector)
Input Signal Type	4K@60 YUV 4:4:4
Output Signal Type	4K@30 YUV 4:2:0
	Interface	Resolutions
Maximum Input	1×CYP Module (Edge Connector)	3840×2160p@60

Audio
Audio output	LPCM (2 Channels)

USB
Type	TypeC
Generation	USB3.2 Gen1
Transfer Rate	5Gbps

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	82mm×25mm×111mm [Case Only] 82mm×25mm×122mm [All Inclusive]
Weight	55g

Field Firmware Update

ORDERING INFORMATION
Model No.	Product Description
SDM-U320C	4K30 USB-C Video Capture Module Card
CSC-VPR-3421	UHD+ HDMI Multiview Processor with Multi-Function Extension Slot
CBL-U600-020	USB4® Type C Gen2x2 20Gbps cable
