4K60 12G-SDI to HDMI Receiver Module

1 SDI input and 1 SDI loop output, Supports up to 4K UHD+ (4K@50/60Hz 4:4:4, 8-bit) digital video input, and 4K@60 4:2:2 for output, SDI signal extension distance varies based on signal type: 70 meters (12G-SDI), 100 meters (6G-SDI), 200 meters (3G-SDI), or 260 meters (HD-SDI)Note: Tested with a Belden 1694A SDI cable. Operating distances may vary if different specifications cables were used, SDI output supports the following SMPTE standards: ST 292-1 Level A, ST 425-1, ST 2081-10, ST 2082-10, The SDI output will be blocked in the case of HDCP content, Supports pass-through of LPCM audio (up to 8 channels) from the module input

Hersteller-Nr.	SDM-I301SH
Hersteller	Cypress Technology

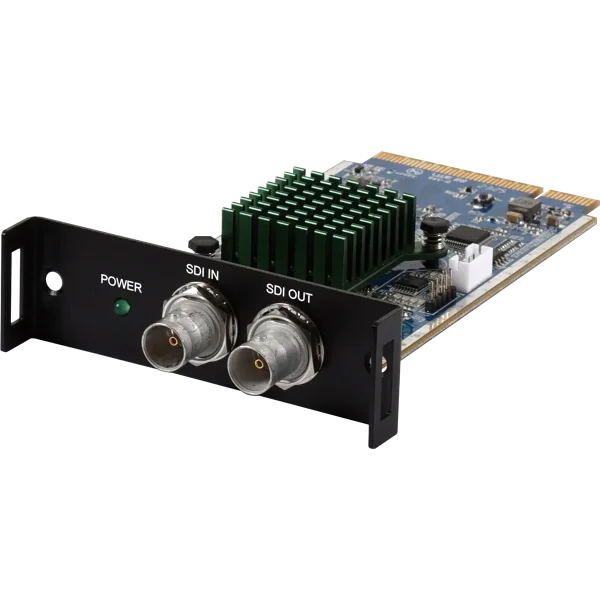

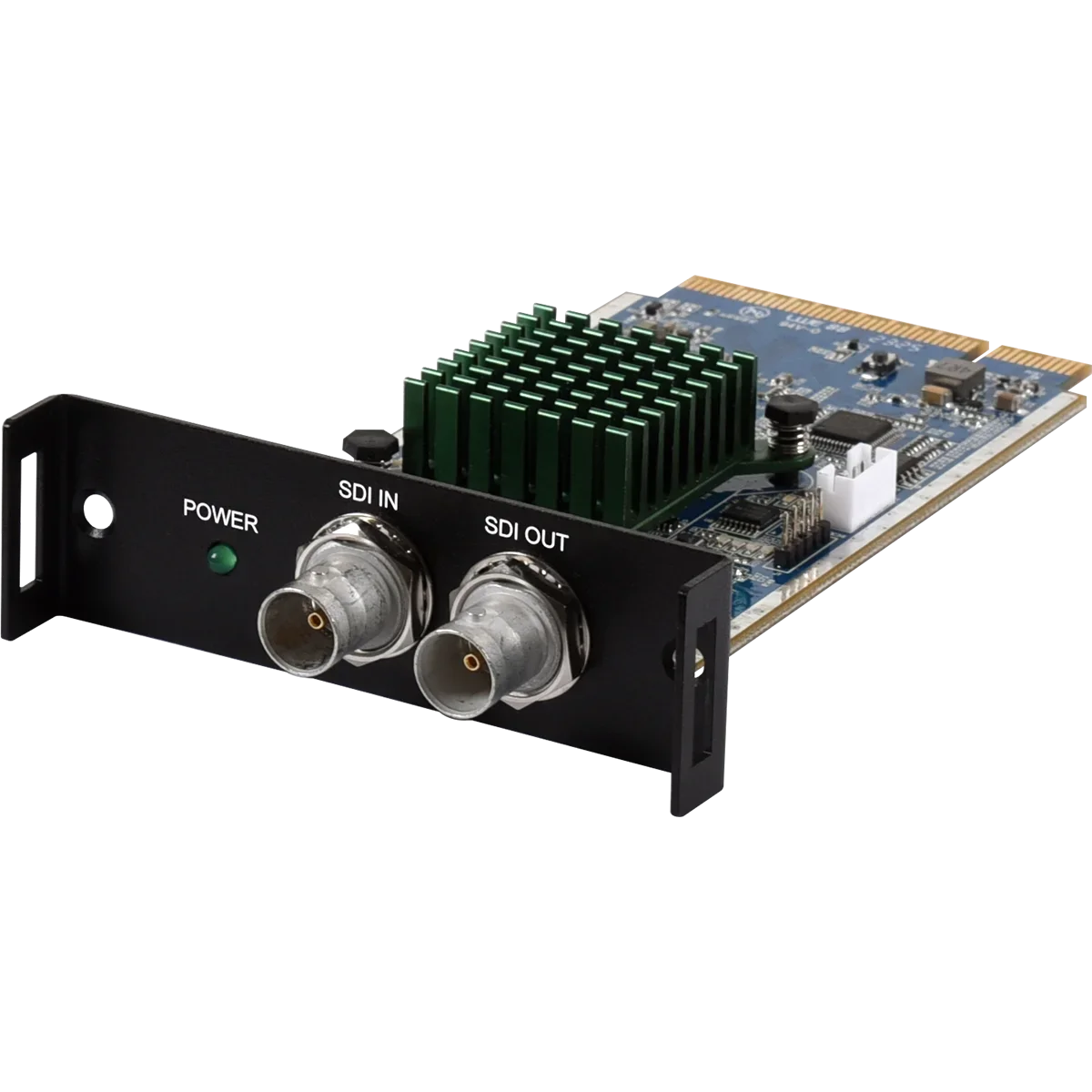

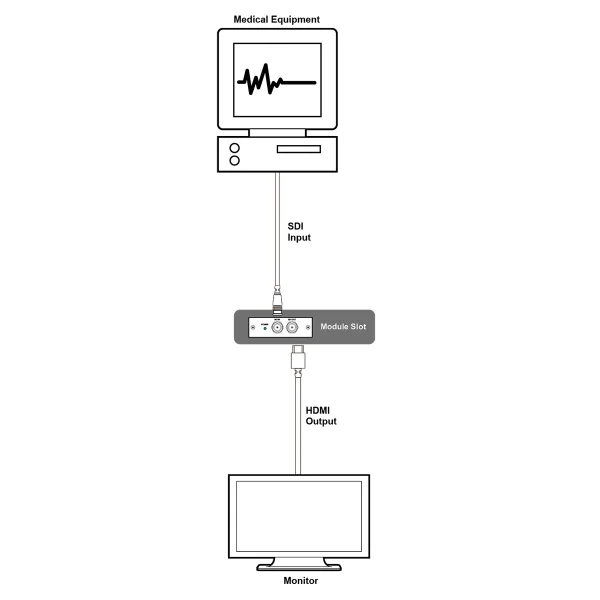

This 4K60 12G-SDI to HDMI Receiver Module allows SDI signals up to 4K60 to be converted for display on standard HDMI video displays. This makes it easier for professionals to monitor or output professional SDI video production sources on standard, relatively low-cost, HDMI displays while allowing the original SDI signal to continue to be looped on to other SDI equipment in their production environment.

The module's design is compatible with a variety of products that have a standard CYP Module Slot, offering increased flexibility to customers.

Interfaces

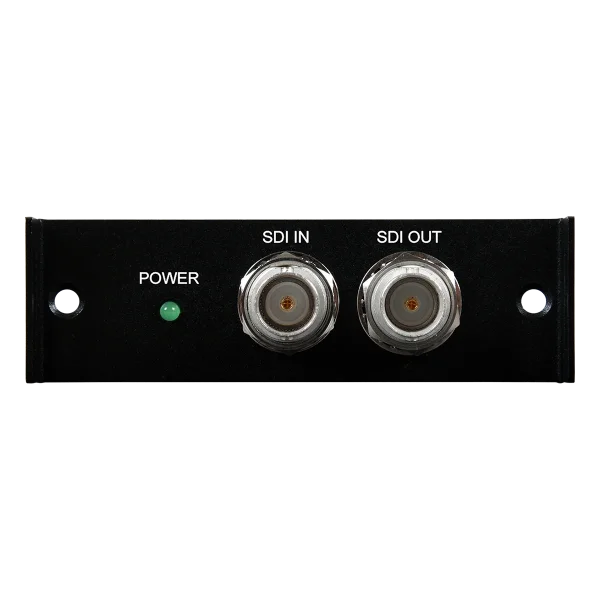

Input Port	1x 12G-SDI (BNC)
Output Port	1x 12G-SDI (BNC)
	1x CYP Module (Edge Connector)

Video
HDMI Compliance	HDMI 2.0 (Edge Connector)
HDCP Compliance	2.2
Input Signal Type	4K@60 YUV 4:2:2
Output Signal Type	4K@60 YUV 4:2:2
		Resolutions
Maximum Input	12G-SDI (BNC)	4096×2160p@60 YUV 4:2:2
Maximum Output	12G-SDI (BNC)	4096×2160p@60 YUV 4:2:2
	HDMI (Edge Connector)	4096×2160p@60 YUV 4:2:2

Audio
HDMI	Bypass

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	128mm×25mm×75mm [Case Only] 128mm×25mm×75mm [All Inclusive]
Weight	91 g

Field Firmware Update
CPLUS-V32SDM

ORDERING INFORMATION

Model No.	Product Description
SDM-I301SH	4K60 12G-SDI to HDMI Receiver Module
SDM-I301HS	4K60 HDMI to 12G-SDI Transmitter Module
CSC-VPR-3421	4K60 HDMI Multiview Processor with Multi-Function Extension Slot
CPLUS-V32SDM	4K60 Multi-format Matrix Switcher with USB Ethernet Hub
