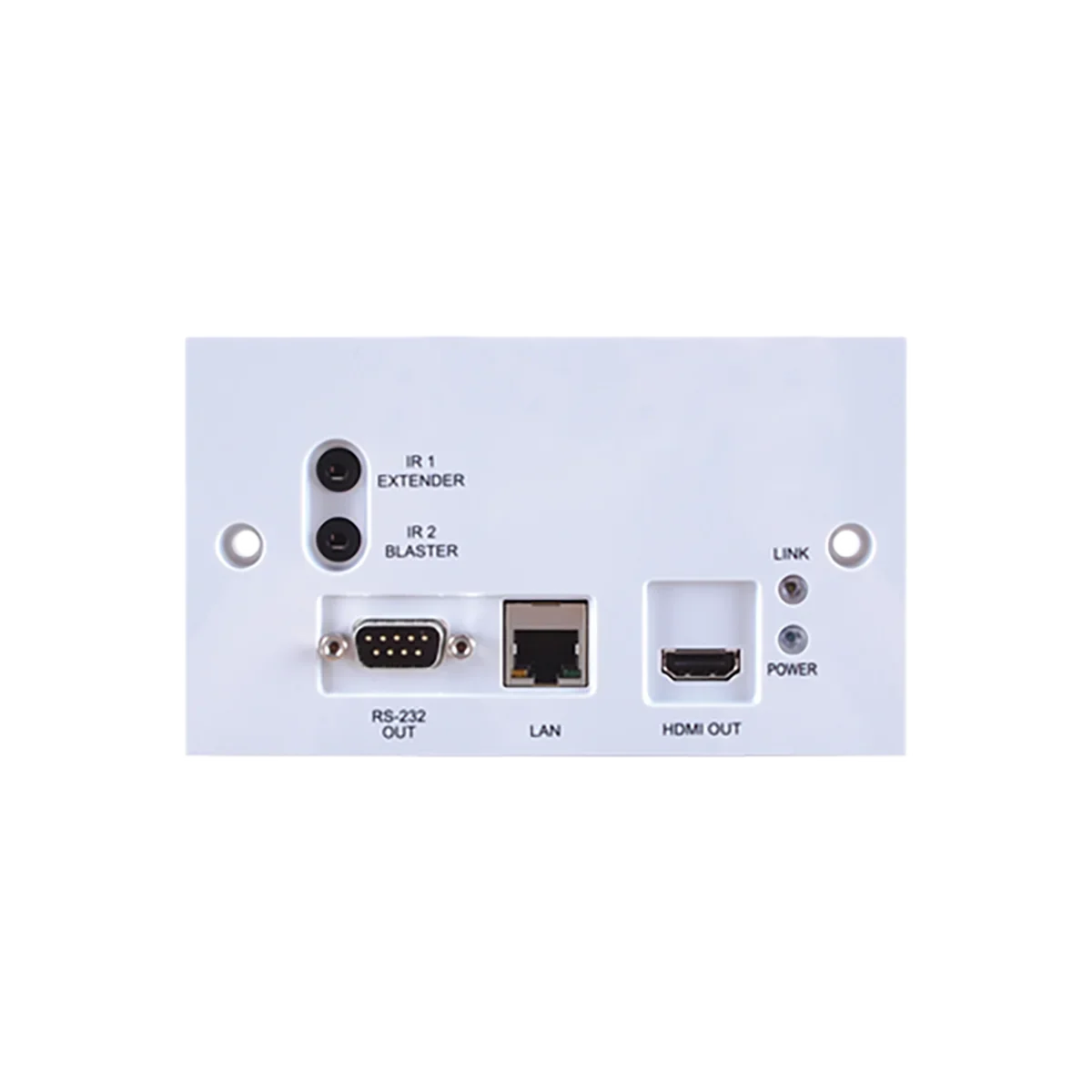

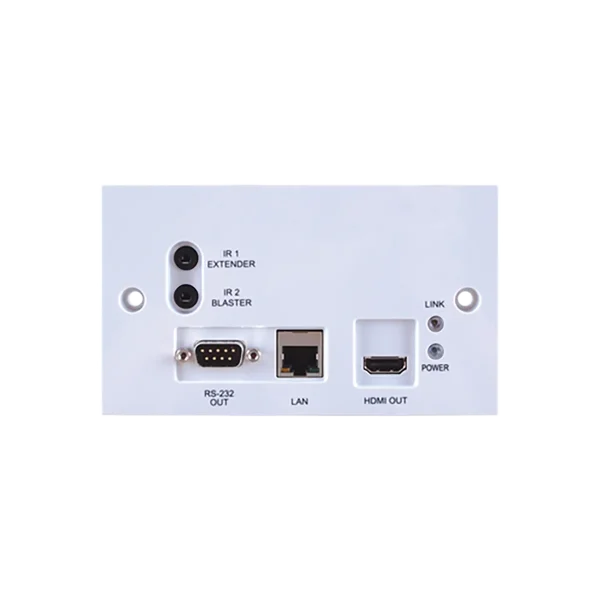

4K60 (4:2:0) HDMI over HDBaseT Wallplate Receiver with IR, RS-232, PoC (PD) & LAN (2 Gang UK)

HDMI with 3D, 4K2K support, HDCP and DVI compliant, Simultaneous tranmisson of uncompressed data over a single 100m CAT5e/6/7 cable (70m for 4K2K signals), Uncompressed video support up to 1080p@60 Hz/36-bit, High definition audio support up to LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio, HDBaseT™ 5PlayT™ convergence: uncompressed high definition Video and Audio, LAN serving, Power over Cable (PoC) and RS-232/IR control, Supports HDCP repeater and CEC bypass functions, Easy to install wall plate design

Hersteller-Nr.	CH-507RXWP
Hersteller	Cypress Technology

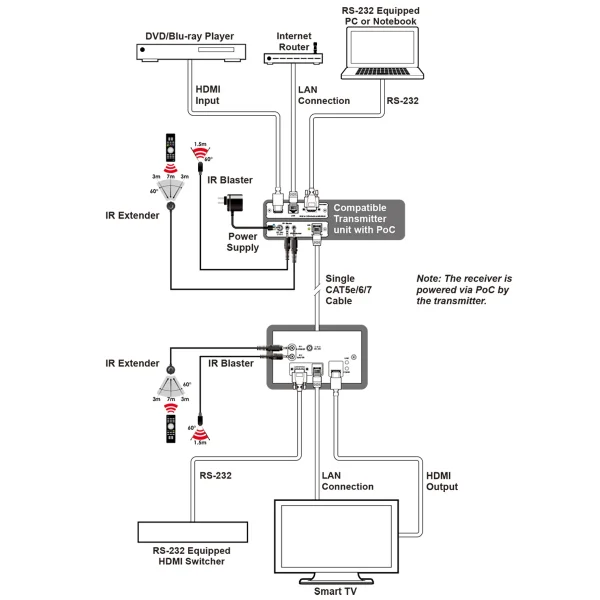

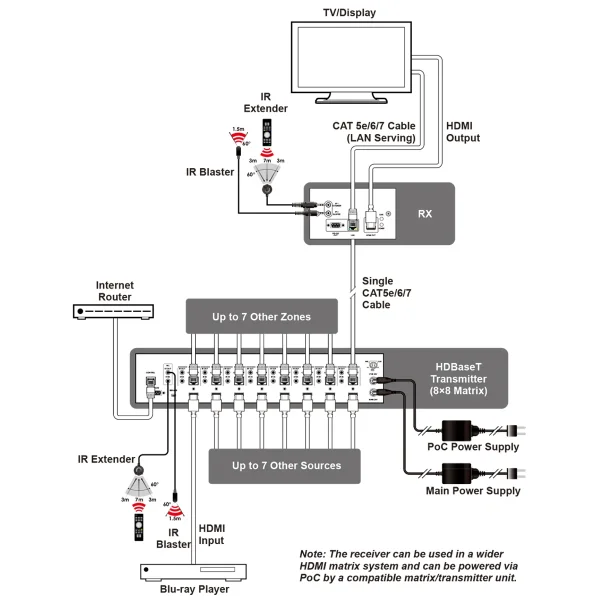

The HDMI over Single CAT5e/6/7 Wall-plate Receiver is designed to receive uncompressed video, audio and IR control data from a compatible transmitter over a single run of CAT5e/6/7 cable at a distance of up to 100 meters. It has the added benefit of control through the built-in RS-232 and IR ports and a bi-directional LAN serving connection. Additionally, it can be powered by a compatible transmitter unit via the Power over Cable (PoC) functionality allowing for greater flexibility in installations.

HDMI Bandwidth	10.2Gbps
HDBaseT Bandwidth	10.2Gbps
Input Ports	1×CAT5e/6/7, 1×LAN, 1×IR Extender
Output Ports	1×HDMI, 1×RS-232, 1×IR Blaster
IR Frequency	30 - 50kHz (30 - 60kHz under ideal conditions)
Baud Rate	Up to 115200/sec
ESD Protection	Human-body Model: ±8 kV (air-gap discharge) ±4 kV (contact discharge)
Dimensions (W×H×D)	145.7 mm (W)×85.7 mm (D)×36.5 mm (H)/ Jacks Excluded 145.7 mm (W)×85.7 mm (D)×39.5 mm (H)/ Jacks Included
Weight	160g
Chassis Material	Plastic
Silkscreen Color	White
Operating Temperature	0 °C~40 °C/32 °F~104 °F
Storage Temperature	−20 °C ~ 60 °C/−4 °F~140 °F
Relative Humidity	20~90 % RH (non-condensing)
Power Consumption	12 W (PoC), 9 W (Main)
