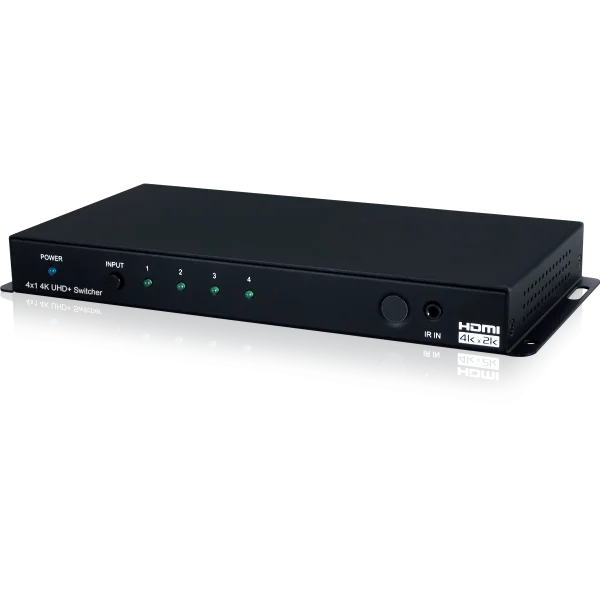

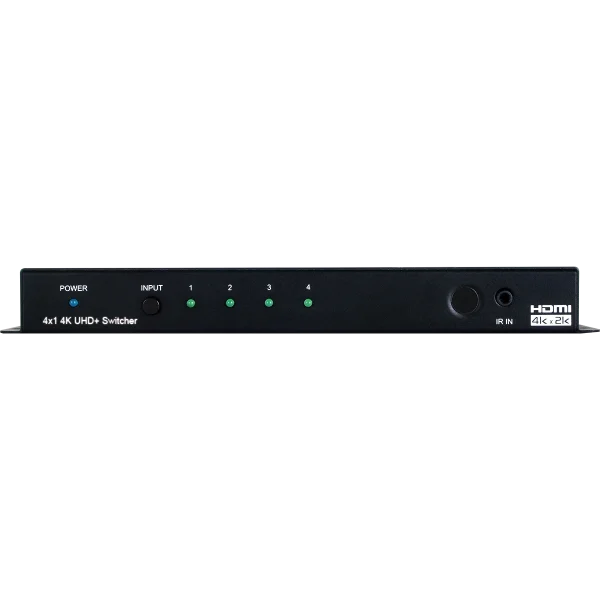

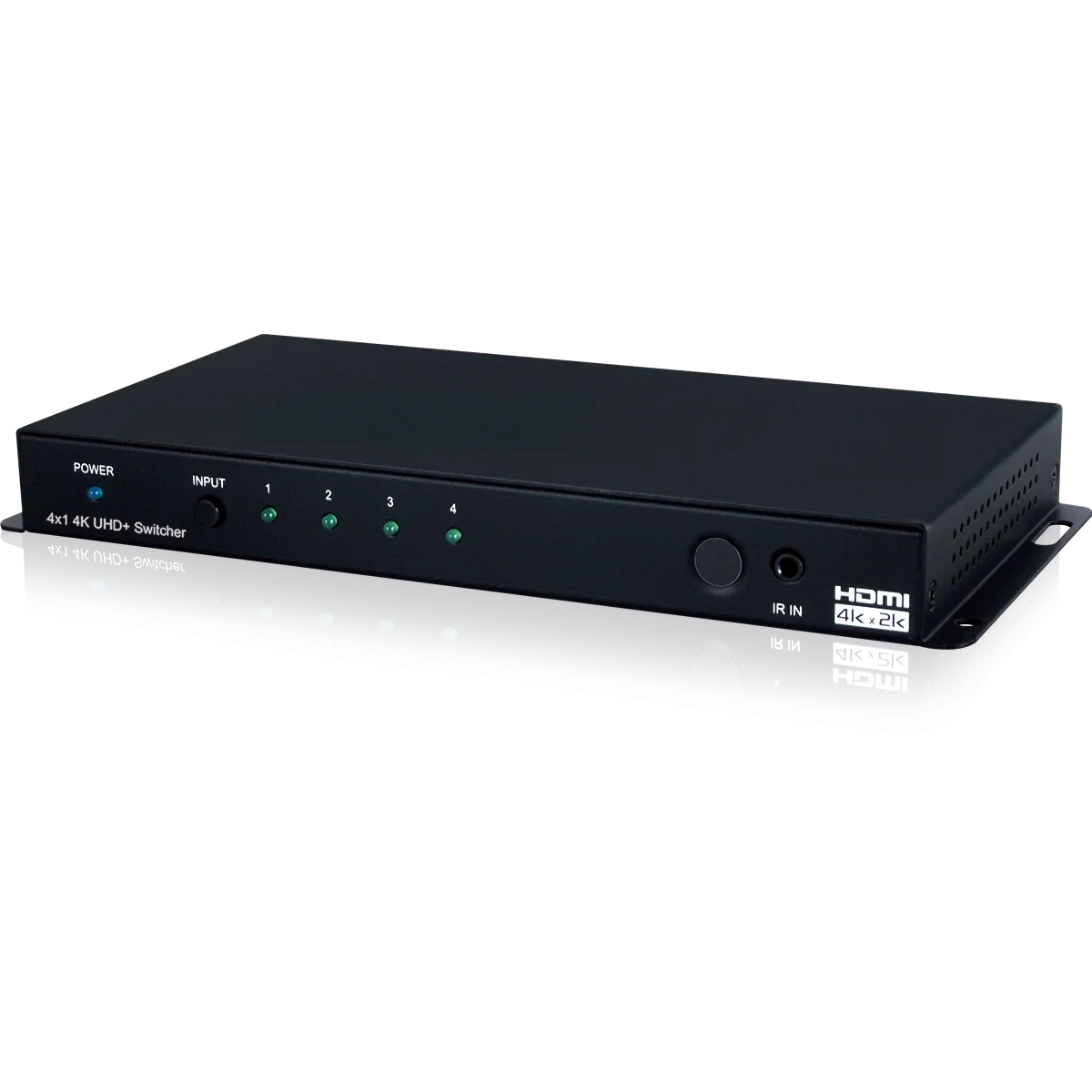

4x1 UHD+ Switcher

Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream , CEC pass-through , Support Internal/External EDID management , Controllable via front-panel buttons, RS- 232, and optional IR remote

Hersteller-Nr.	CPLUS-V4H1H
Hersteller	Cypress Technology

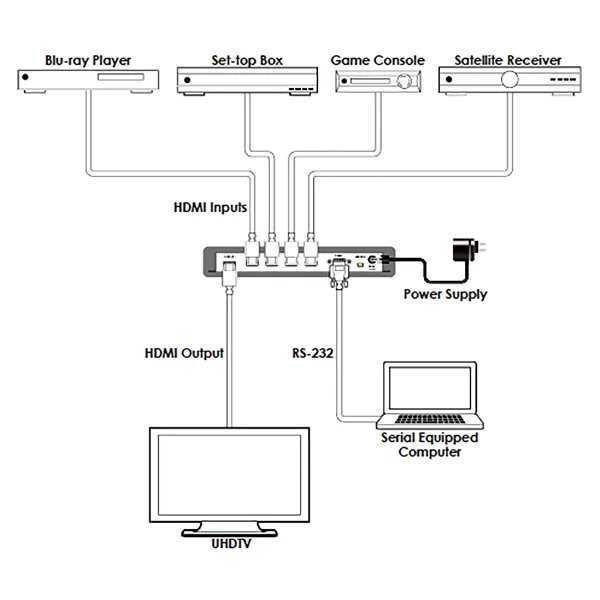

This 4 by 1 HDMI Switcher is a brand new high performance design for the next generation of audio/video equipment. It allows a single HDMI output to switch between 4 HDMI sources. This unit comes with full support for 18Gbps (600Mhz) resolutions up to, and including 4K@60Hz (4:4:4, 8-bit) as well as support for 16-bit Deep Color up to 1080p60Hz, HDR (High Dynamic Range), HD audio and other features defined by the HDMI 2.0 specification. The included auto switching functionality allows for the possibility of hands-free, user friendly, operation. Control is provided via front panel buttons, IR remote, and RS-232

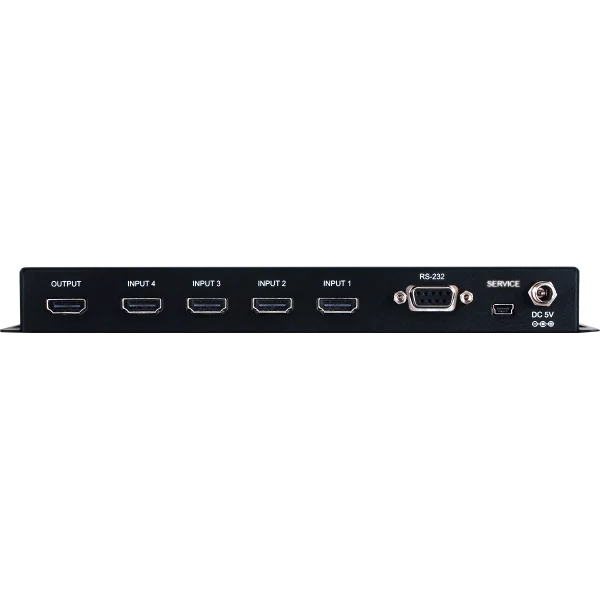

Interfaces
Input Port	4×HDMI (Type-A)
Output Port	1×HDMI (Type-A)
Control I/O	1×IR Extender (3.5mm) 1×RS-232 (DB-9)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.X
Input Signal Types	4096x2160@60Hz 8bit YUV 4:4:4, HDR 12
Output Signal Type	4096x2160@60Hz 8bit YUV 4:4:4, HDR 12

Resolutions
Maximum Input	HDMI	4096×2160p@60
Maximum Output	HDMI	4096×2160p@60

Audio
	HDMI	LPCM (8 Channels), Bitstream, HD Bitstream

Power
Power Supply	5V/2.6A DC
Power Consumption	6.6W

Enclosure
Chassis Material	Metal
Chassis Color	Black
Dimensions (W×H×D)	231.5mm×25mm×108mm [Case Only] 231.5mm×25mm×117mm [All Inclusive]
Weight	608g

Field Firmware Update
Interface	USB to PC

Ordering Information
Model No.	Product Description
CPLUS-V4H1H	4x1 UHD+ Switcher

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
