AIP-D4101- 4 Balanced In, Analog Audio to Dante; AIP-D1401- 4 Balanced Out, Dante to Analog Audio

Compatible with existing Dante and AES67 audio networks, Optional phantom power (5v or 48v) support on all inputs for ADC, Easily route audio with 3rd party units in the Dante network., May be powered directly by PoE when connected to a Gigabit Ethernet switch that provides PoE (802.3af)

Hersteller-Nr.	AIP-D4101&AIP-D1401
Hersteller	Cypress Technology

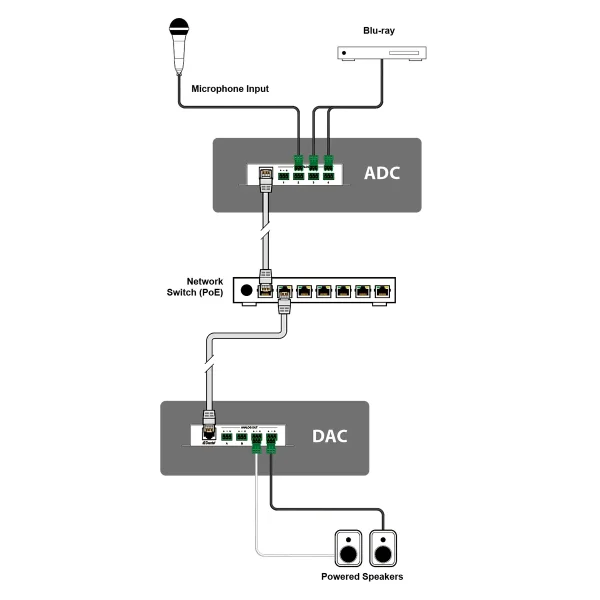

This transmitter and receiver pair are with Dante Technology and supports AES67. Because with Dante technology, it is obviously easier and more flexible than physically wiring. Dante does away with bundles of heavy expensive analog or multi-cores cables, replacing it with low cost easy available Cat. 5e or Cat. 6 cables. High quality audio is another benefit of Dante. Because it is a digital transmission method, you do not need to worry about interference and crosstalk, and worry about signal attenuation caused by constant distance transmission. These units provide flexibility for installation. Equipped with four audio inputs/outputs and one Dante port, they could transfer audio and route them easily with 3rd party units via the Dante network. On the ADC, adjustable phantom power (5v or 48v) for each port supports for microphones, and auxiliaries.

Interfaces

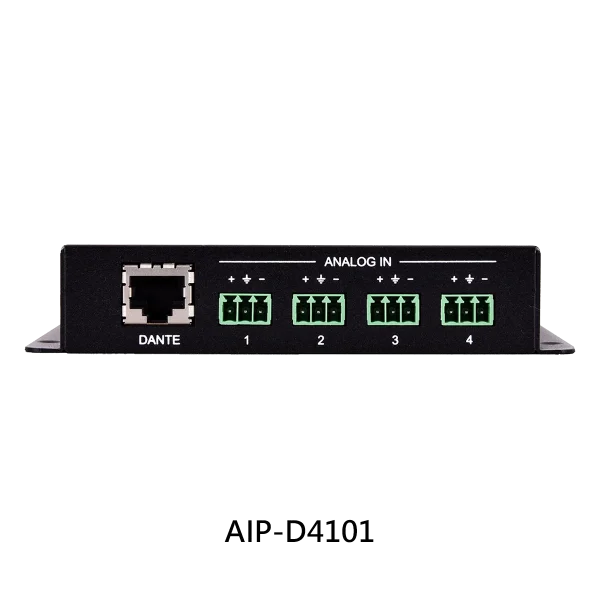

Input Port	ADC	4 ×Analog In (3-pin Terminal Block)

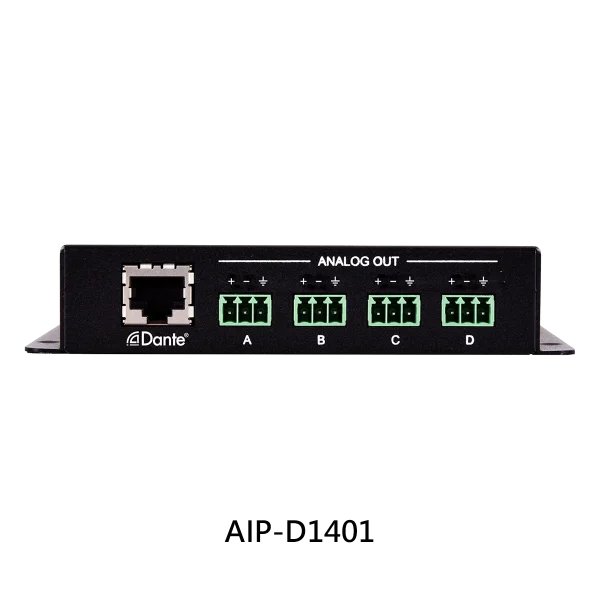

Output Port	DAC	4 ×Analog Out (3-pin Terminal Block)
Bi-direction Port	1 ×Dante (RJ-45)

Audio

Analog In

Max Audio Level: 4Vrms

Impedance: 42.3kΩ

Type: Balanced

Analog Out

Max Audio Level: 4Vrms

Impedance: 499Ω

Type: Balanced

S/N Ratio: >-87dB (1kHz with 0dBFS)

Power
Power Supply	POE
Power Consumption	6W(TX), 6W(RX)

Enclosure
Chassis Material	Aluminum
Chassis Color	Black
Dimensions (W×H×D)	110mm×25mm×108mm [Case Only] 128mm×25mm×108mm [All Inclusive]
Weight	351g (TX), 354g(RX)

ORDERING INFORMATION
Model No.	Product Description

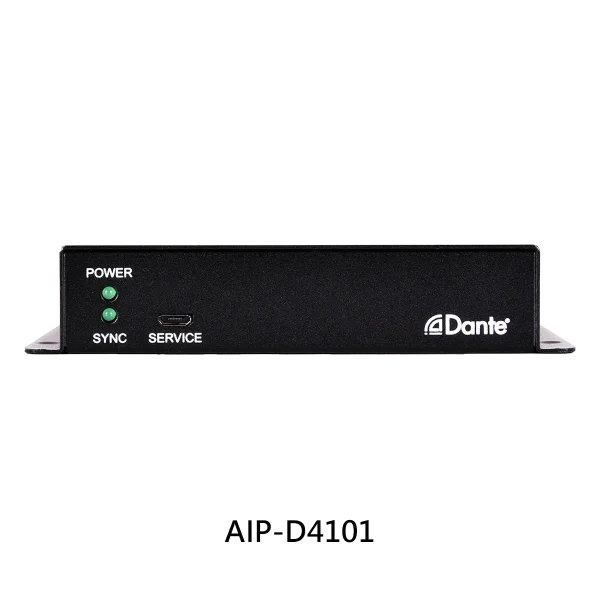

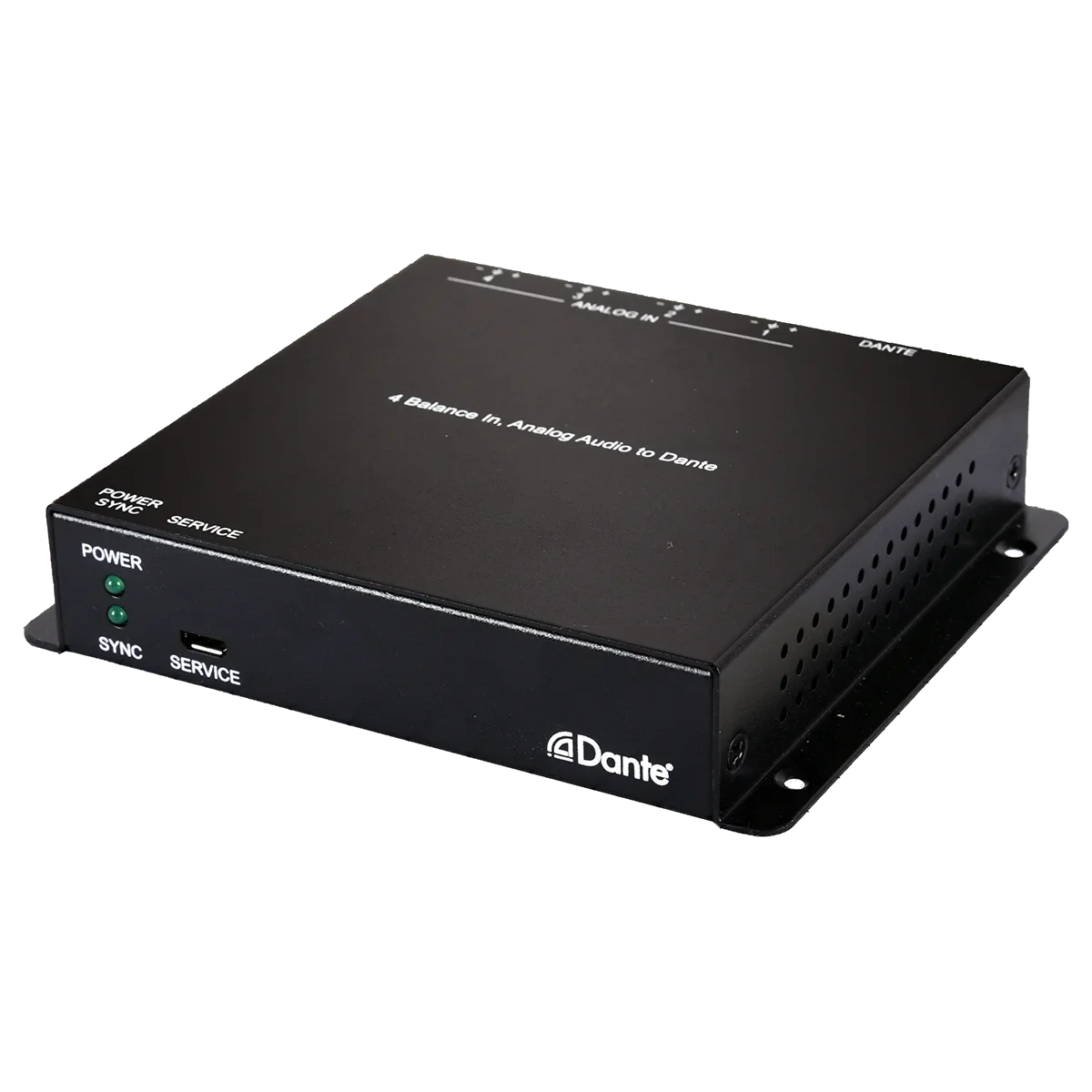

AIP-D4101	4 Balance In, Analog Audio to Dante

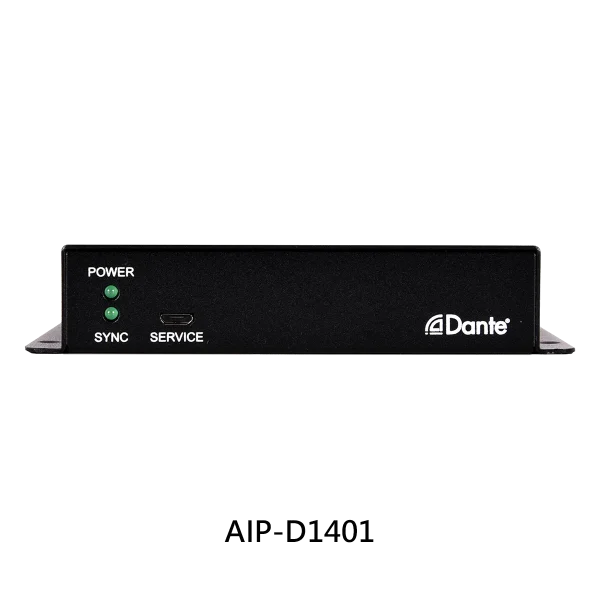

AIP-D1401	4 Balance Out, Dante to Analog Audio
ACC-XLRFM3P	XLR Female Connector
