ALLNET 4duino Küchenwaagen Sensor für 1kg Messgewicht

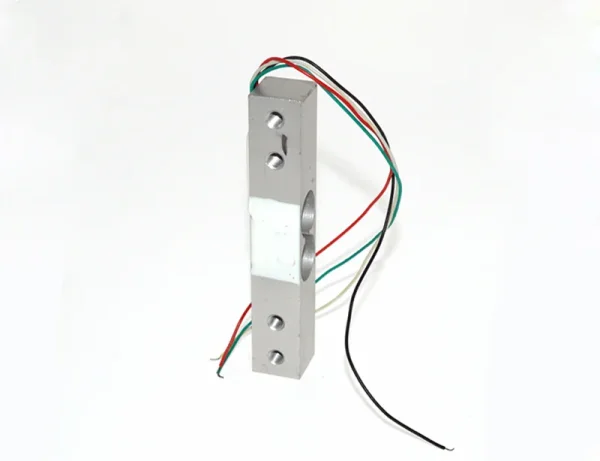

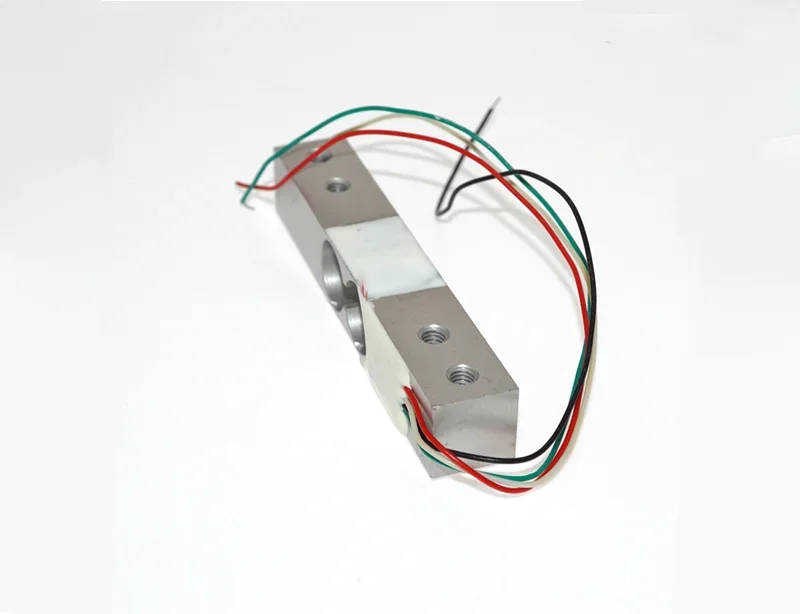

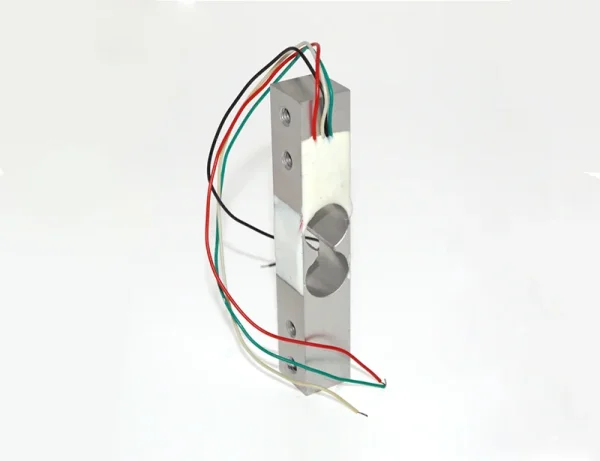

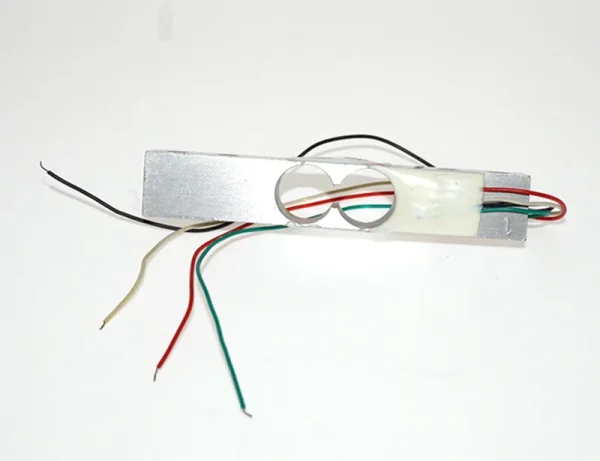

ALLNET 4duino Küchenwaagen Sensor für 1kg Messgewicht Product Model: OKY3479 1KG Scale Sensor Module Weighing Sensor Load Cell Sensor Product Description 1.Rated Load: 1Kg. 2.Rated Output: 1.0mV/V±0.15mV/V. 3.Input End: Red+ (power), Black-(power). 4.Output End: Green+(signal), White-(signal). 5.Recommended operating voltage: 3 ~ 12 VDC. 6.Maximum operating voltage: 15 VDC. 7.Input Impedance: 1115±10%O. 8.Output Impedance: 1000±10%O. 9.Weight: 30g.
