ALLNET ALL-USB-RS422/485 / USB 2.0 -> RS422/485 6er Terminal-Block, FTDI Chipset

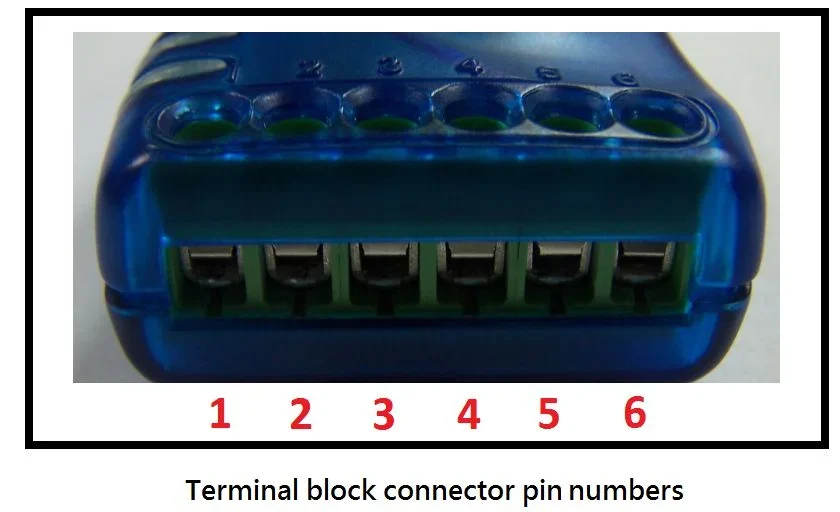

Highlights: Adapterkabel-Typ: USB 2.0 zu RS-422/485 Adapterkabel Anschluss Seite A: USB Stecker Serie A Anschluss Seite B: 6pin Terminal-Block Geschwindigkeit 256 bytes Empfangsbuffer 128 byte Sendebuffer Benötigt keine IRQ, DMA oder I/O Ports wird vom System erstellt Sende und Empfangs LED´s zur Überprüfung Datenrate 300 bps zu 1M bps RS-422 (4 wire) data signals: TxD-, TxD+, RxD+, RxD-, GND RS-485 (4 wire) data signals: TxD-, TxD+, RxD+, RxD-, GND RS-485 (2 wire) data signals: data-, data+ GND Volle USB 2.0 Geschwindigkeits kompatibel Monitor LEDs für TXD, RxD Indikator Port Status Unterstützt 15KV ESD Schutz und 600W Überspannungsschutz für alle Seriellen Signale FTDI virtual COM Port Triver für ... Windows 2000/Server 2003 / XP / Server 2008 / Server 2012 / Windows 7 / Windows 8 / Linux 2.4 und größer Erweiterter Temperaturbereich: 0°~60°C Technische Daten: General Bus USB1.1, USB2.0, USB3.0 Chipset FTDI FT232RL Interface RS-422/485 Plug & Play Supported. IRQ &IO Address Assigned by system. Power Supply Input USB bus Output 5Vdc 200mA(max.) through Terminal Block connector pin5 Driver Support Windows XP,2003, Vista,7,8. Linux. Mechanical Chassis Plastic Dimensions 39mm X 62 mm X 19mm (W x L x H) Weight 25g Environmental Operating Temperature 0°C ~ 60°C (32°F to 140°F) Operating Humidity 0% to 80% RH Storage Temperature -40°C ~ 85°C (-40°F to 185°F) Safety Approvals EN55022 Class B, EN61000-3-2, EN61000-3-3, EN55024(EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11) FCC Part 15 Class B Terminal Block Installations: RS-422/485 Full Duplex Mode Pin-out Pin Number Pin Type Description 1 Output TxD- Transmit Data, negative polarity 2 Output TxD+ Transmit Data, positive polarity 3 Input RxD+ Receive Data, positive polarity 4 Input RxD- Receive Data, negative polarity 5 Power VCC DC +5V 6 Ground GND Signal Ground RS-485 Half Duplex Mode Pin-out Pin Number Pin Type Description 1 Out/IN Data Transmit/Receive Data, negative polarity 2 Out/IN Data Transmit/Receive Data, positive polarity 3 Power VCC DC +5V 4 Ground GND Signal Ground
