Analog to Digital Audio Converter
Klicken zum Vergrößern
Cypress Technology

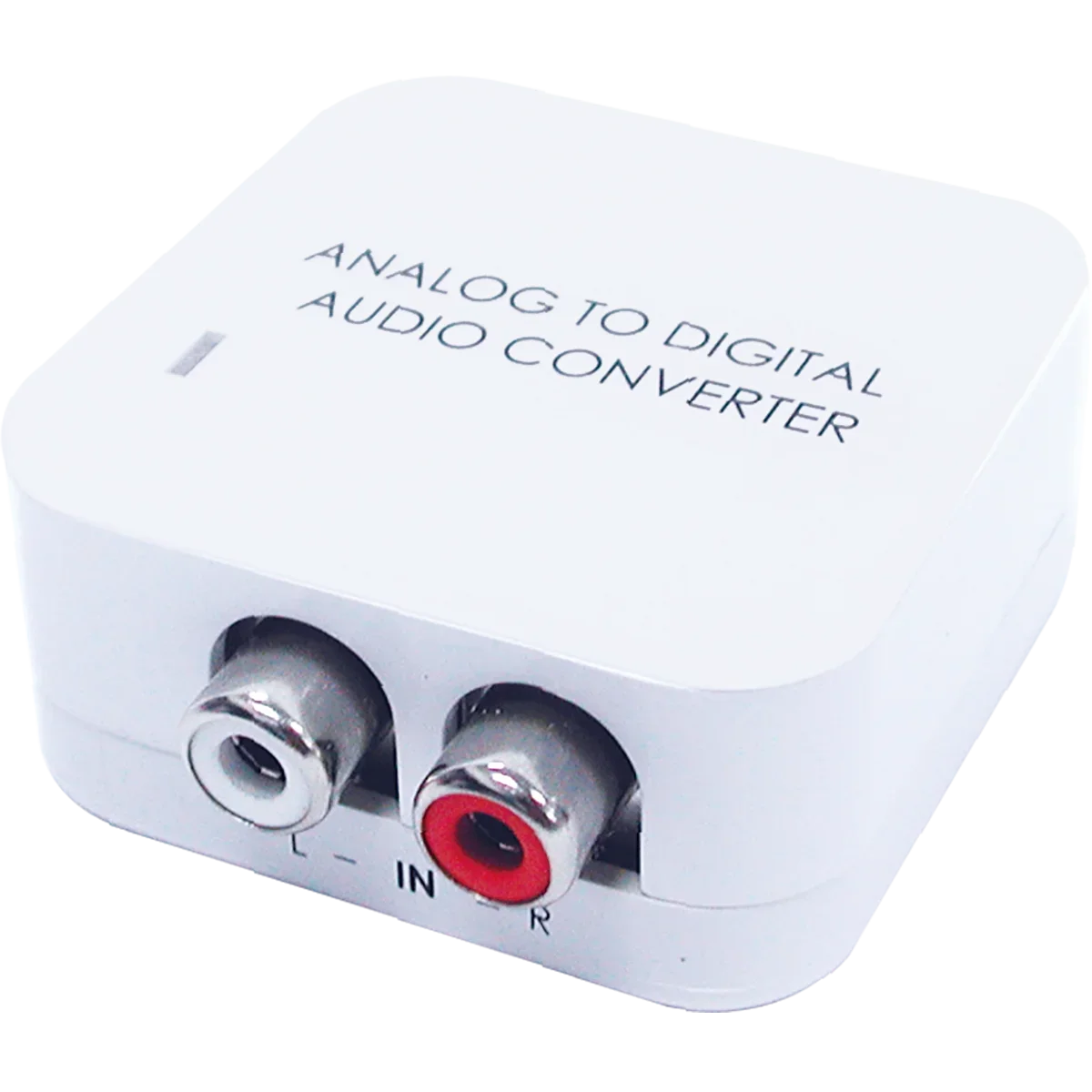

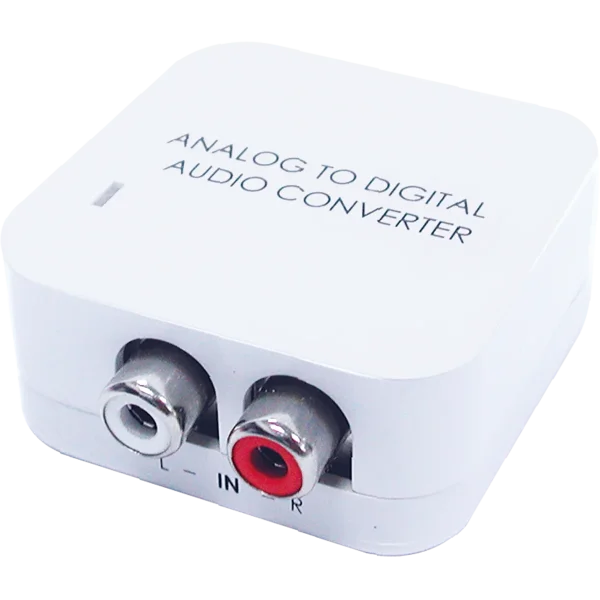

Analog to Digital Audio Converter

Supports uncompressed output of 2 channels LPCM digital audio signals , Supports an output sampling rate of 48 kHz , Provides electromagnetic-noise-free transmission , Easy to install and operate

Hersteller-Nr.DCT-4N
HerstellerCypress Technology

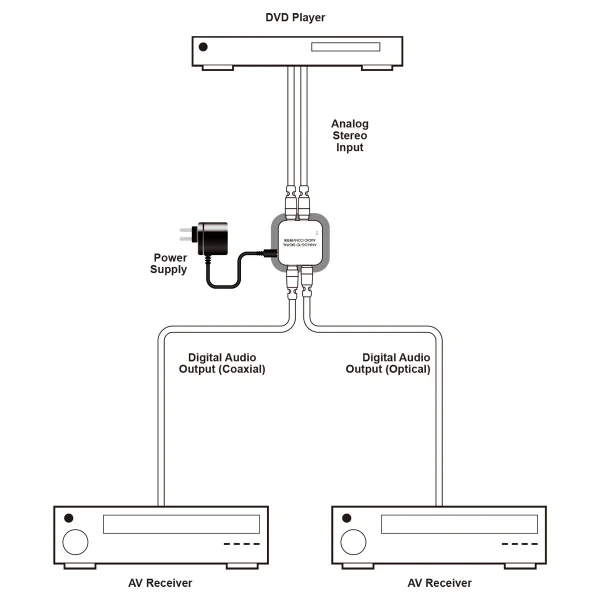

The Stereo Analog to Dual Outputs Digital Converter (ADC) is designed to convert analog stereo audio to Coaxial and TOSLINK Optical digital outputs. The digital output is 2 channels uncompressed LPCM with a sampling rate of 48 kHz. Both Optical and Coaxial cables connected to the output ports of the unit can run up to 5 meters while still providing a reliable and lossless audio signal transmission. The unit is both compact and easy to install, which makes it a very handy device, perfect for converting audio signals in the home or workplace.
Interfaces
Input Port

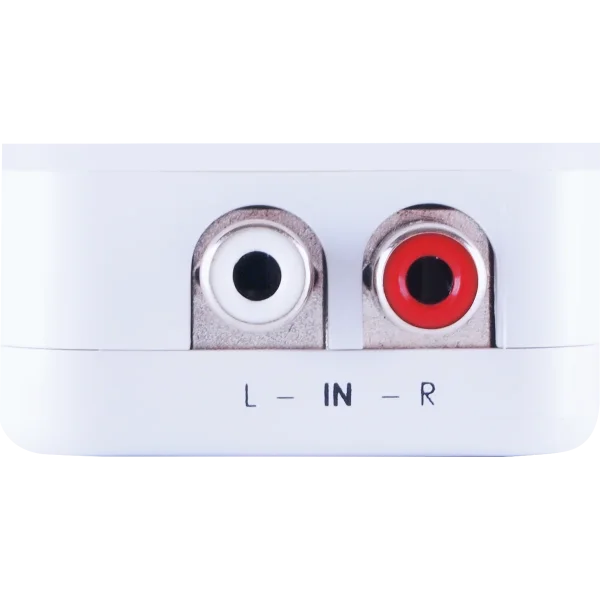

  • 1×Analog Stereo (RCA connectors
Output Port

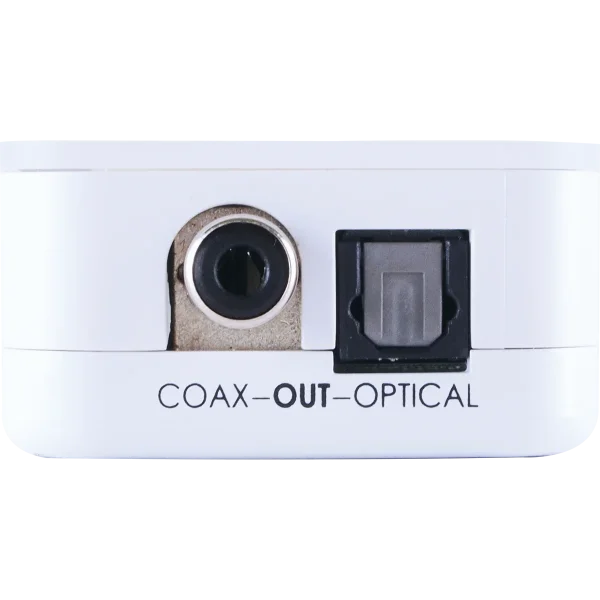

  • 1×Coaxial (Female)
  • 1×Optical (TOSLINK connector)
Power
Power Supply
  • 5V/1.2A DC
Power Consumption
  •  0.6 W
Enclosure
Chassis Material
  • Plastic
Chassis Color
  • White
Dimensions (W×H×D)
  • 57 mm × 23.5 mm × 45.5 mm
Weight
  • 30g
Ordering Information
Model No. Product Description
DCT-4N
  • Analog to Digital Audio Converter

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)
Auf Anfrage
zzgl. 10,00 € Versand • ab 500 € versandkostenfrei
Auf Bestellung
Lieferzeit: ca. 30 Tage
