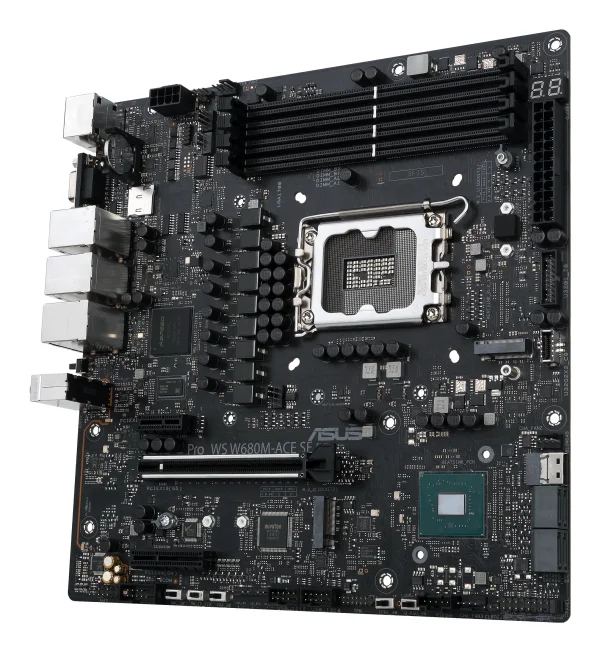

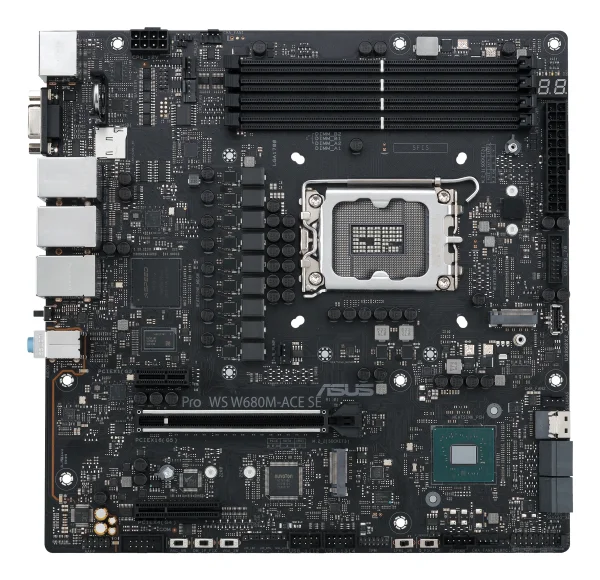

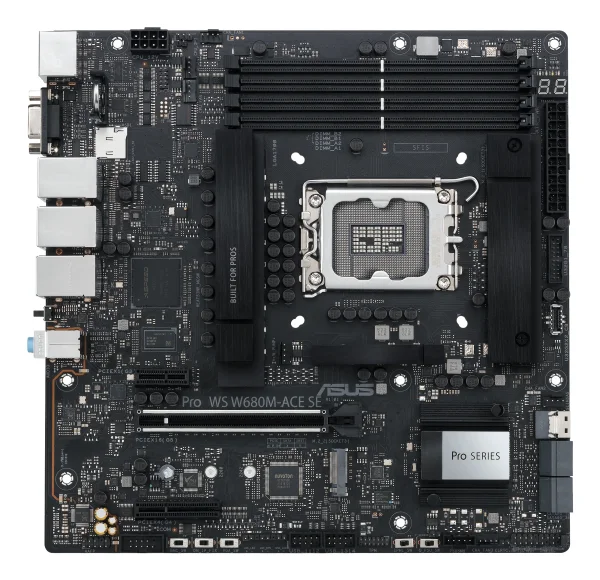

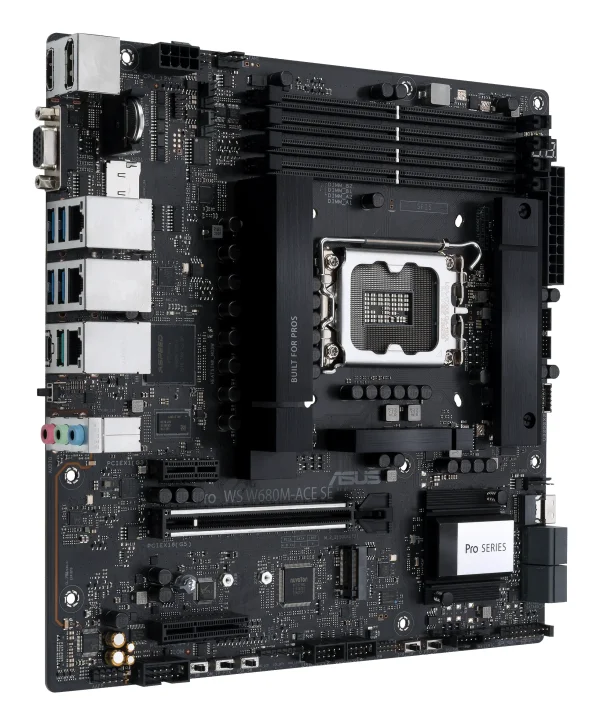

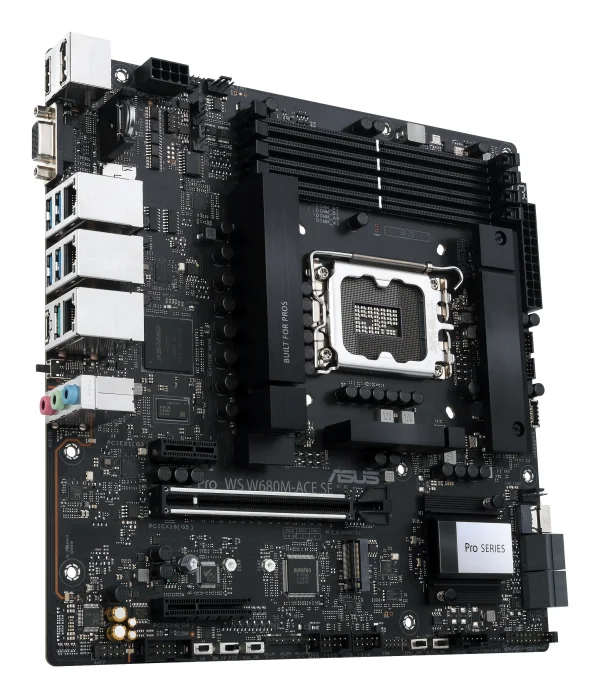

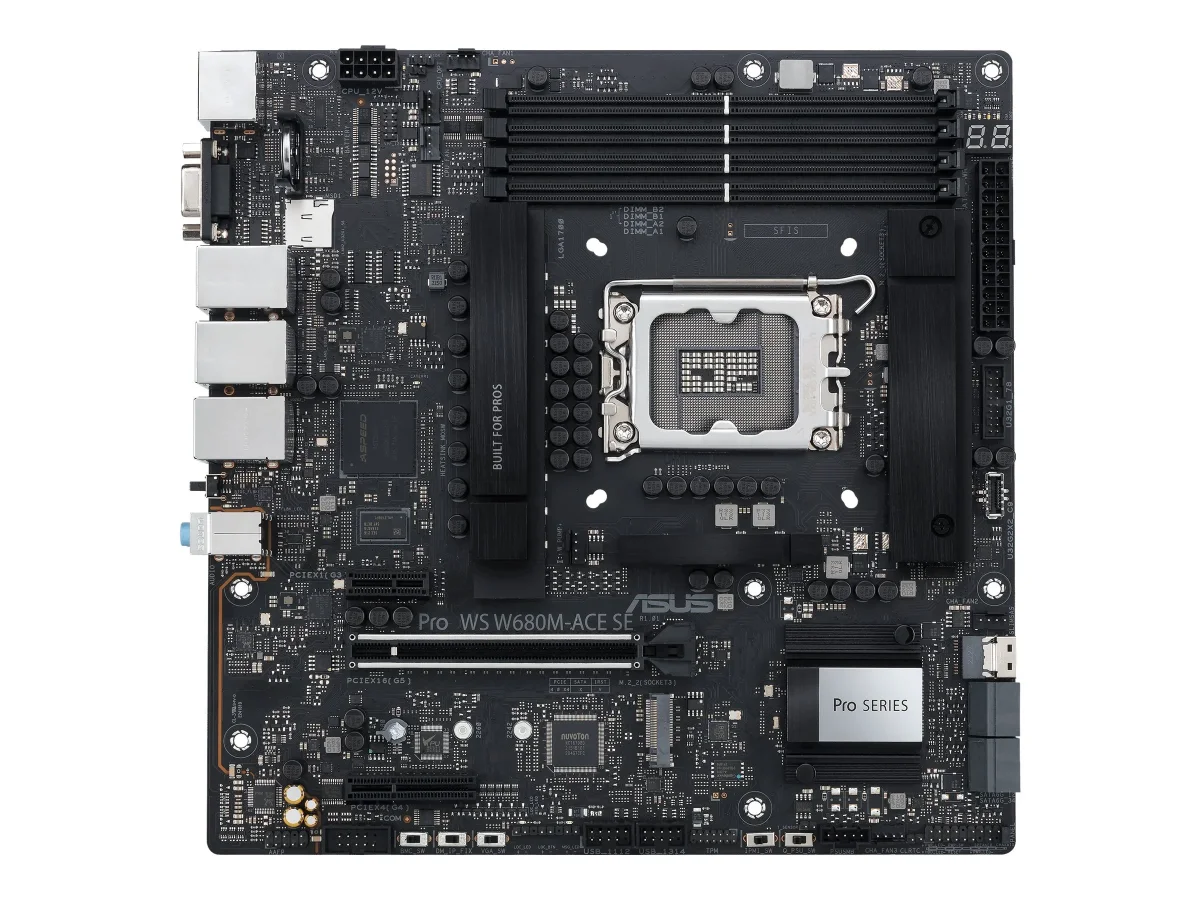

ASUS PRO WS W680M-ACE SE LGA1700 microAT
ASUS PRO WS W680M-ACE SE LGA1700 microATX 4DDR5 1xHDMI 1xDP 1xD-Sub 8xSATA 2xM.2
| EAN/GTIN | 4711387298190 |
| Hersteller-Nr. | 90MB1FA0-M0EAY0 |
| Hersteller | ASUS |
| Herkunftsland | China |
| Zolltarifnr. | 84733020 |
| Garantie | 36 Monate |
Prozessor
| Prozessorhersteller | Intel |
| Prozessorsockel | LGA 1700 |
| Kompatible Prozessoren | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Unterstützte Prozessorsteckplätze | LGA 1700 |
Speicher
| Unterstützte Arbeitsspeicher | DDR5-SDRAM |
| Anzahl der Speichersteckplätze | 4 |
| Arbeitsspeicher Typ | DIMM |
| Speicherkanäle | Zweikanalig |
| ECC-Kompatibilität | Nicht-ECC |
| RAM-Speicher maximal | 192 GB |
| Unbuffered Speicher | Ja |
Speicher-Controller
| Unterstützte Speicherlaufwerke | HDD & SSD |
| Unterstützte Speicherlaufwerk-Schnittstellen | M.2, NVMe, PCI Express 4.0, SATA III, SlimSAS |
| Maximale unterstützte Anzahl der HDD | 8 |
| Anzahl der unterstützten Speicherlaufwerke | 10 |
| RAID-Unterstützung | Ja |
| RAID Level | 0, 1, 5, 10 |
Grafik
| Parallele Verarbeitungstechnologie | Nicht unterstützt |
Interne E/A-Anschlüsse
| Anzahl USB 2.0 Schnittstellen | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anschlüsse | 1 |
| SATA III Anschlüsse | 4 |
| Audio-Anschluss | Ja |
| Frontpanel-Stecker | Ja |
| ATX Stromstecker (24-pol.) | Ja |
| CPU Ventilatorstecker | Ja |
| Zahl der Chassisventilatorstecker | 3 |
| Chassis Intrusion Stecker | Ja |
| EPS Stromstecker (8-pin) | Ja |
| Zahl der COM Stecker | 1 |
| TPM-Anschluss | Ja |
| 12-V-Stromanschluss | Ja |
E/A-Anschlüsse auf der Rückseite
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ A | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ C | 1 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 3 |
| Anzahl VGA (D-Sub) Anschlüsse | 1 |
| Anzahl HDMI-Anschlüsse | 1 |
| HDMI-Version | 2.1 |
| Anzahl DisplayPort Anschlüsse | 1 |
| DisplayPorts-Version | 1.4 |
| Kopfhörerausgänge | 1 |
| Line-in | Ja |
| Anzahl der SAS-Ports | 1 |
Netzwerk
| Ethernet/LAN | Ja |
| Ethernet Schnittstellen Typ | 2.5 Gigabit Ethernet, Gigabit Ethernet |
| WLAN | Nein |
Merkmale
| Motherboard Chipsatz | Intel W680 |
| Audio Kanäle | 7.1 Kanäle |
| Komponente für | PC |
| Motherboardformfaktor | micro ATX |
| Motherboard Chipsatz Familie | Intel |
| Kühlung | Passiv |
| Energiequelle | ATX |
| Unterstützt Windows-Betriebssysteme | Windows 10, Windows 11 |
Erweiterungssteckplätze
| PCI-Express x1 (Gen 3.x)-Anschlüsse | 1 |
| PCI Express x4-Steckplätze (Gen 4.x) | 1 |
| PCI Express x16-Steckplätze (Gen 5.x) | 1 |
| Anzahl der M.2 (M)-Steckplätze | 2 |
BIOS
| BIOS-Typ | UEFI AMI |
| BIOS-Speichergröße | 256 Mbit |
Gewicht und Abmessungen
| Breite | 244 mm |
| Tiefe | 244 mm |
Lieferumfang
| Mitgelieferte Kabel | SATA |
| Benutzerhandbuch | Ja |
Sonstige Funktionen
| Gewicht | 820 g |
| Back-to-BIOS Knopf | Ja |
Specs: Icecat.biz
| Länge | 27,50 cm |
| Breite | 27,50 cm |
| Höhe | 7,00 cm |
| Gewicht | 1,28 kg |
| 1.-11. Stk. | 458,35 € | |
| 12.-16. Stk. | 467,50 € |
