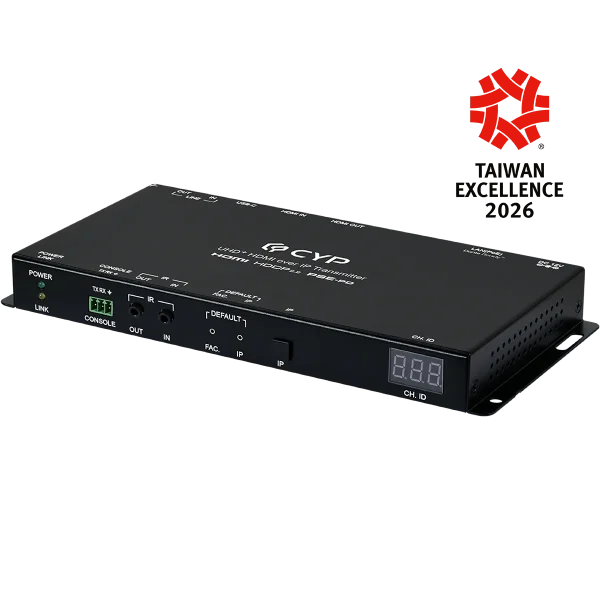

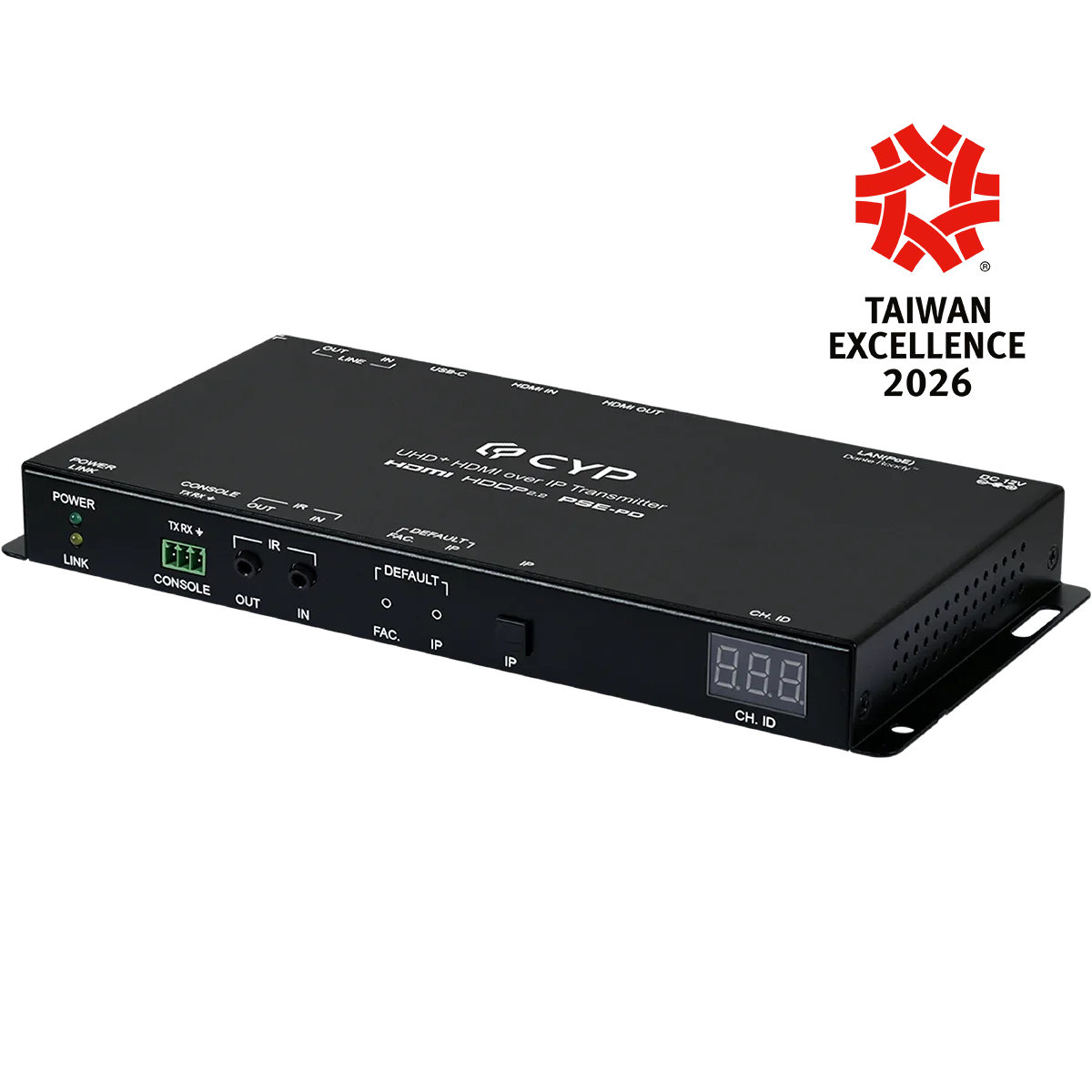

AVIP-A4601E-B1C
4K@60 1Gbps AV over IP transmitter in Unicast or Multicast mode., IP interface: RJ45, Supports comprehensive USB over IP functionality (USB flash drive, keyboard and mouse) and seamless collaboration across multiple windows, Supports PoE-PD (IEEE 802.3af)., Support IP to IR/ RS-232, converting the IP signal into IR and RS-232 commands for device control., Controlled via WebGUI, IP Master Controller, and Telnet, 1×HDMI input, 1×HDMI loopback output, Supports the use of an external control center (IP Master Controller) to provide expanded functionality (Contact your authorized dealer for more information), Supports independent breakaway A/V and control matrix routing, Supports extension of many audio formats including 8 channel LPCM and standard Bitstream, The analog Line In is automatically embedded in the streaming output and can be independently routed to any receiver, Optional Dante ReadyTM is compatible with existing Dante and AES67 audio networks, Dante Ready brings Dante functionality to products already shipping and installed in sites, Channels and features can be added as an installation grows
| Hersteller-Nr. | AVIP-A4601E-B1C |
| Hersteller | Cypress Technology |
This unit supports both Unicast and Multicast modes, enabling video wall and seamless collaboration across multiple windows in Multicast mode. It supports the transmission of Ultra High-Definition signals (up to 4K@60Hz RGB) with audio and USB 2.0 up to 100m on a single cable which allows connection of USB flash drives, keyboard, and mouse. The transmission distance can be further extended (up to 100m per segment) by using gigabit network switches, allowing the user to cascade the system without signal loss or introducing delay. Moreover, it supports IP to IR and IP to RS-232, converting the IP signal into IR and RS-232 commands for device control.
When the extension system's units are in multicast mode, a single transmitter's AV signal can be sent to a large number of receivers within the same local network without the additional receivers causing the bandwidth requirements to increase. Additionally, that same multicast signal can be used to create large multi-display video walls with amazing simplicity.

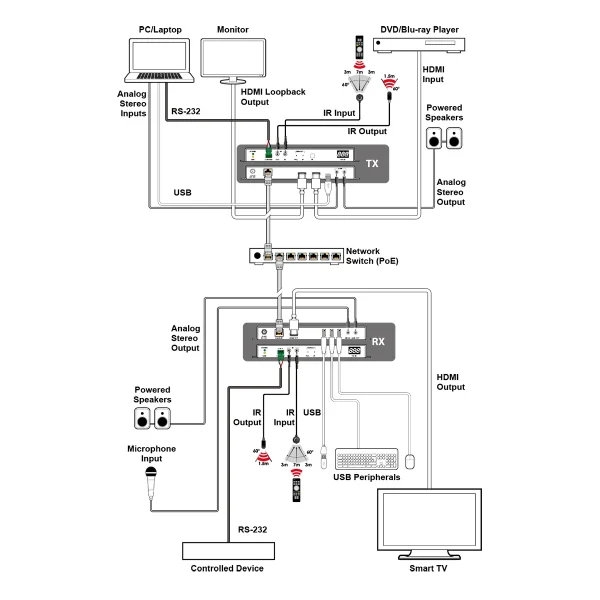

This system also features bi-directional IR and RS-232 pass-through, analog line level in/out, and a microphone input (on the receiver). The USB functionality allows the system to act like a remote USB hub. Configuration information is provided via OSD and controlled by WebGUI, IP Master Controller, and Telnet.
The unit is Dante Ready, allowing digital audio transmission and compatibility with Dante-enabled devices. Dante Ready offers secure and seamless upgrades through the Dante Controller application without complex license handling.
Product Features
Dynamic Resource Allocation
Free routing and seamless switching for continuous workflow
Centralized Video Wall Management
Create any size video wall up to 16 × 16 in multicast mode
Seamless Collaboration
Integrated with multiple computers and USB devices for real-time collaboration
Comprehensive KVM over IP
Seamless control using OSD hot key between local and remote sites
Application
Monitoring Center
Conference Room
Digital Signage

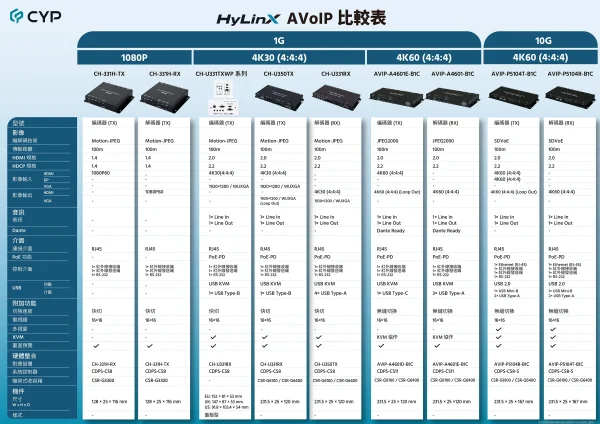

AVoIP Comparison Chart
(Click image to view high-resolution version)
|

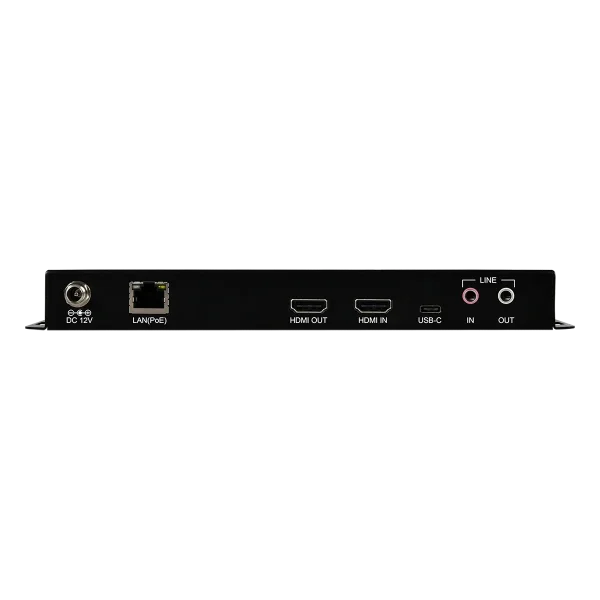

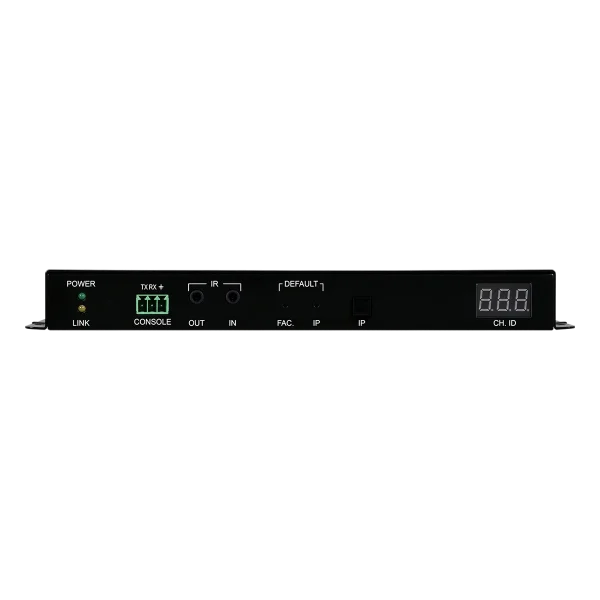

Interfaces |
|
|---|---|
|
Input Port |
1×HDMI (Type-A) 1×Stereo Audio (3.5mm) |
|
Output Port |
1×HDMI (Type-A) 1×Stereo Audio (3.5mm) |
|
Output/Control Port |
1×GbE LAN (RJ-45) |
|
Pass-through Port |
1×IR Extender (3.5mm) 1×IR Blaster (3.5mm) 1×RS-232 (3-pin Terminal Block) 1×USB 2.0 (Type-C) |
|
Video |
||
|---|---|---|
|
HDMI Compliance |
HDMI 2.0 (DVI 1.0) |
|
|
HDCP Compliance |
HDCP2.2 |
|
|
Input Signal Type |
4096x2160p@60 8bit RGB |
|
|
Output Signal Type |
4096x2160p@60 8bit RGB |
|
|
Resolutions |
||
|
Maximum Input |
HDMI |
4096x2160p@60 |
|
Maximum Output |
LAN(Streaming) |
4096x2160p@60 |
|
Audio |
||
|---|---|---|
|
Digital Format |
HDMI |
LPCM (8Channels), Bitstream, High Bit Rate Bitstream |
|
Line In/Out |
LPCM (2 Channels) |
|
|
Line Level |
Line In |
2 Vrms, S/N Ratio: > 80dB (1kHz with 0dBFS) |
|
Line Out |
2 Vrms, S/N Ratio: > 80dB (1kHz with 0dBFS) |
|
Power |
|
|---|---|
|
Power Supply |
PoE (802.3af) or 12V/1.25 A |
|
Power Consumption |
7.19W |
|
Enclosure |
|
|---|---|
|
Chassis Material |
Metal (Steel) |
|
Chassis Color |
Black |
|
Dimensions (W×H×D) |
231.5mm×25mm×108mm [Case Only] 231.5mm×25mm×120mm [All Inclusive] |
|
Weight |
660g |
|
Field Firmware Update |
|
|---|---|
|
WebGUI |
|
ORDERING INFORMATION |
|
Model No. |
Product Description |
|---|---|
|
AVIP-A4601E-B1C |
4K@60 HDMI over IP Transmitter |
|
AVIP-A4601D-B1C |
4K@60 HDMI over IP Receiver with USB 2.0 |
|
CDPS-CS11 |
4K@60 over 1G IP Master Control |
