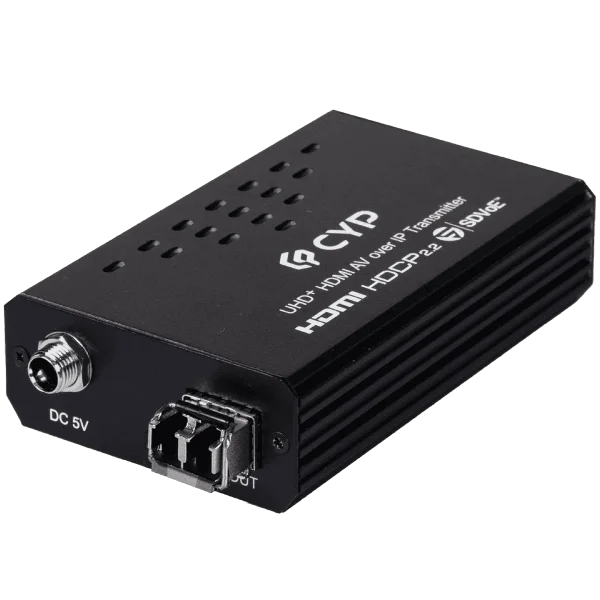

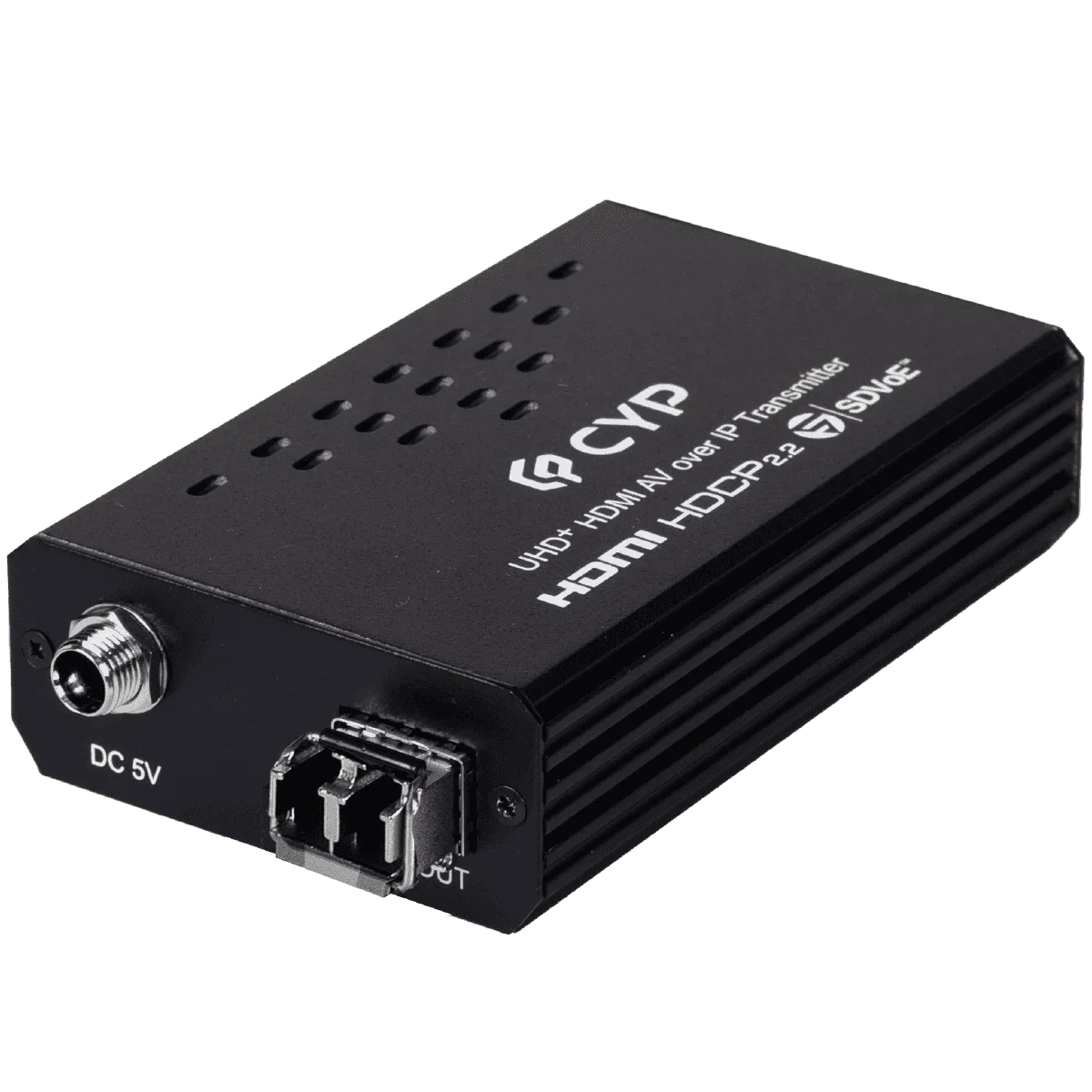

AVIP-P3101T-F
Signal transmission interfaces with 10-Gigabit Ethernet switches via XFI (IEEE 802.3ae) compatible SFP+ fiber modules, 4K@60 Extension up to 120km (maximum distance depends on the SFP+ module and type of fiber used), Supports the use of an external control center (IP Master Controller) or control software to provide expanded functionality (Contact your authorized dealer for more information), IP routable with minimum latency (requires optional IP Master Controller or control software), Supports independent breakaway A/V matrix switching with minimum latency, video wall generation, and multi-view compositing (requires optional IP Master Controller/control software), Supports pass-through of 10/12-bit HDR sources (Point-to-Point and Bypass modes only), Supports pass-through of audio formats including LPCM (up to 8 channels), Bitstream and HD Bitstream, Ultra-light compression, lossless for most content
| Hersteller-Nr. | AVIP-P3101T-F |
| Hersteller | Cypress Technology |
|

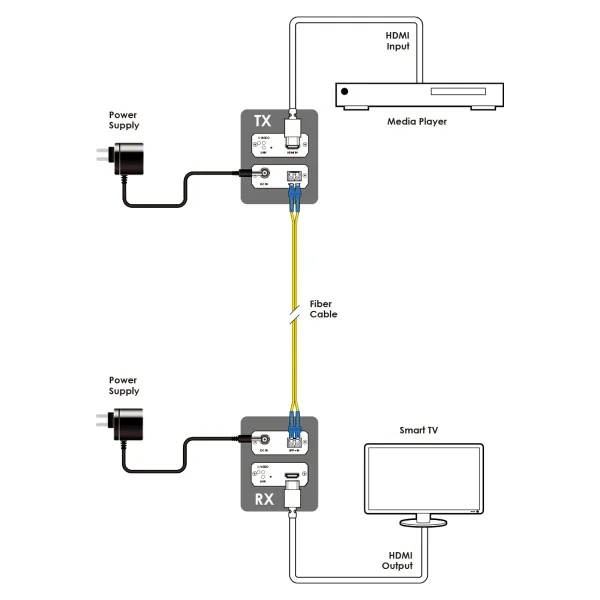

This transmitter is designed for high-quality, IP routable, AV extension up to 4K@60 4:4:4 with minimum latency. The use of interchangeable, field replaceable, SFP+ modules allows for transmission distances of up to 120km (Maximum transmission distance depends on the SFP+ modules used). Advanced HDMI content such as HDR (High Dynamic Range), 10-bit color and multi-channel HD Bitstream audio can be transmitted in pass-through mode. The small and compact size design enhances the flexibility of installation. When combined with the optional IP Master Controller or control software, the functionality of the transmitter expands exponentially. Multiple transmitters and receivers may be combined with one or more 10-Gigabit fiber Ethernet switches and the units can be used together to form a distributed video matrix, a multiviewer system, or a video wall system adding to their flexibility in large event installations. Advanced control such as firmware update can also be performed conveniently through the optional IP Master Controller or control software. |
|
TX |
|
|---|---|
|
Interfaces |
|
|

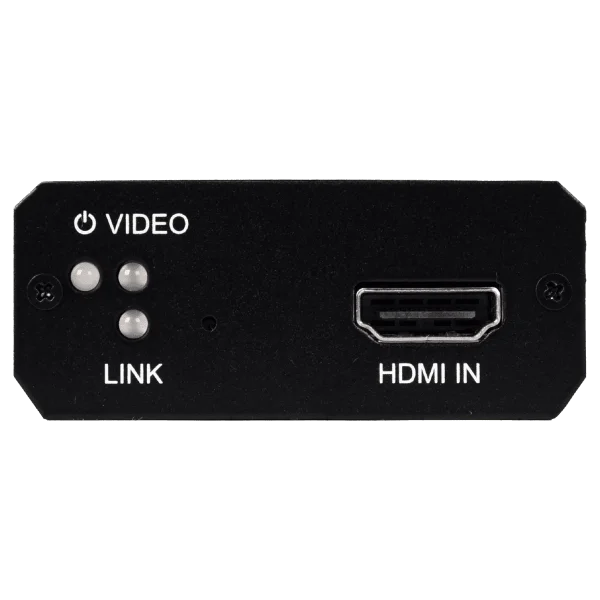

Input Port |
1×HDMI (Type A) |
|

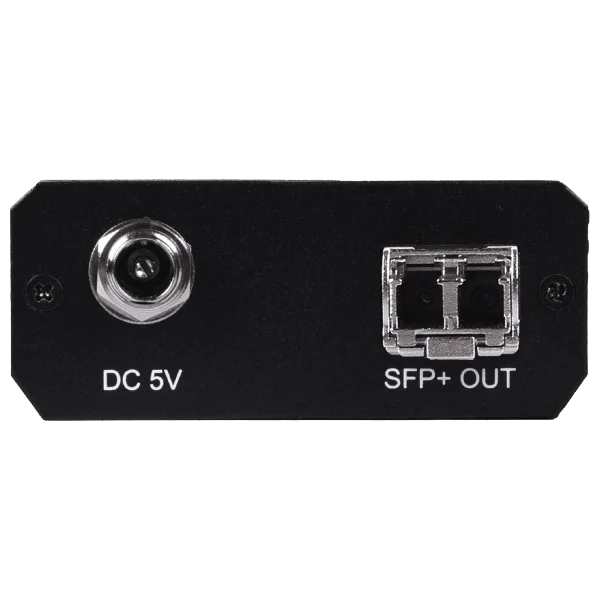

Output Port |
1×10GbE LAN (SFP+) |
|
Video |
||
|---|---|---|
|
HDMI Compliance |
HDMI 2.0 |
|
|
HDCP Compliance |
2.2 |
|
|
Input Signal Types |
4096x2160p@60 12bit YUV4:4:4 |
|
|
Output Signal Types |
4096x2160p@60 12bit YUV4:4:4 |
|
|
Resolutions |
||
|
Maximum Input |
HDMI |
4096x2160p@60 YUV4:4:4 |
|
Maximum Output |
SFP+ (Streaming) |
4096x2160p@60 YUV4:4:4 |
|
Audio |
|
|---|---|
|
HDMI |
LPCM (8 Channels), Bitstream, High Bit Rate Bitstream |
|
SFP+ |
LPCM (8 Channels), Bitstream, High Bit Rate Bitstream |
|
Power |
|
|---|---|
|
Power Supply |
5V/2.6A |
|
Power Consumption |
5.72W |
|
Enclosure |
|
|---|---|
|
Chassis Material |
Metal (Aluminum) |
|
Chassis Color |
Black |
|
Dimensions (W×H×D) |
60mmx24.75mmx95mm [Case Only] 60mmx24.75mmx103mm [All Inclusive] |
|
Weight |
186g |
|
Field Firmware Update |
|---|
|
IP Master Controller |
|
ORDERING INFORMATION |
|
Model No. |
Product Description |
|---|---|
|
AVIP-P3101R-F |
4K60 HDMI AV over IP Receiver |
|
AVIP-P3101T-F |
4K60 HDMI AV over IP Transmitter |
|
CDPS-CS8-S |
AV over IP Master Controller |
