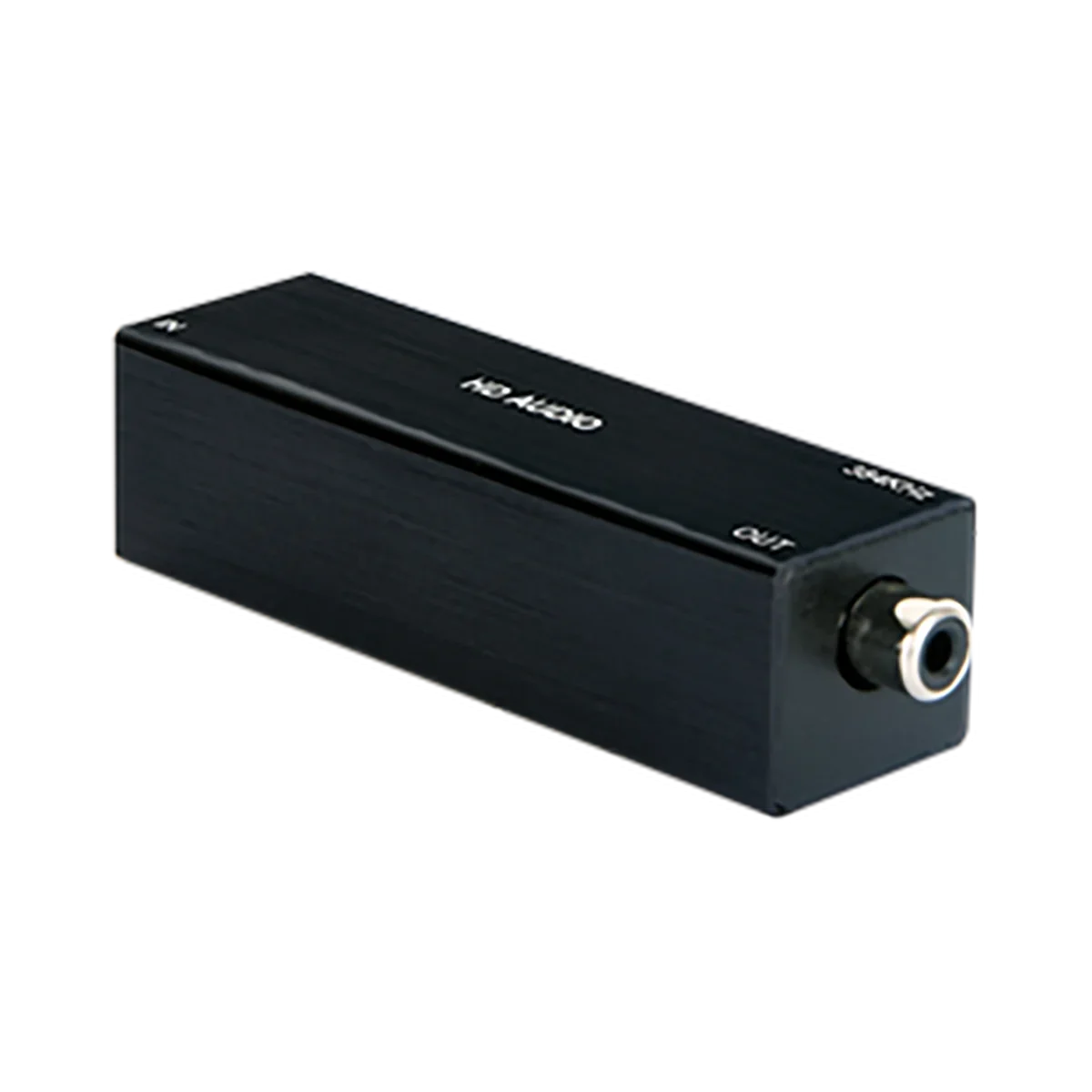

CDB-6HR

Output HD audio from your PC/laptop to an audio amplifier, Superior USB audio processor (XMOS U8A) which supports up to 384kHz/24bits sample rate , Superior coaxial module supporting up to 384kHz audio , Simple operation and compact design, No external power required

Hersteller-Nr.	CDB-6HR
Hersteller	Cypress Technology

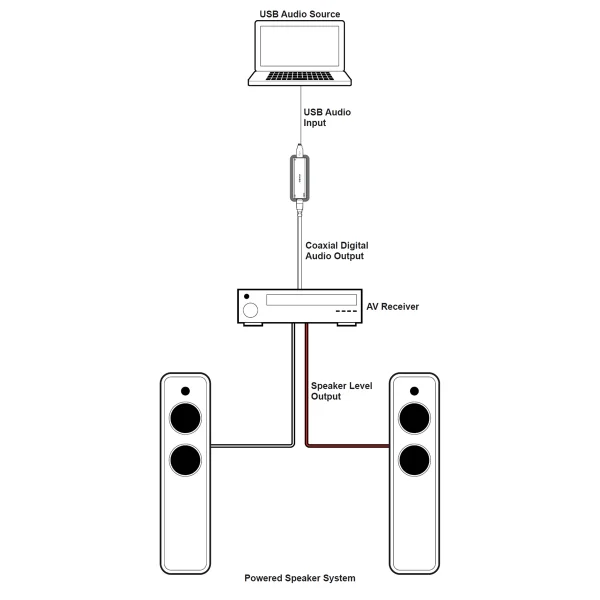

This unit is a simple but smart device and no external power is required. It allows you to connect your PC/laptop to an audio amplifier or other audio destination that has an S/PDIF input without needing a dedicated audio card. This compact HD audio product supports LPCM 2.0 audio with a maximum sampling rate of 384kHz at 24bits. This unit connects to your PC/laptop using any available USB 2.0 (or higher) port (Windows and Mac OSX compatible).

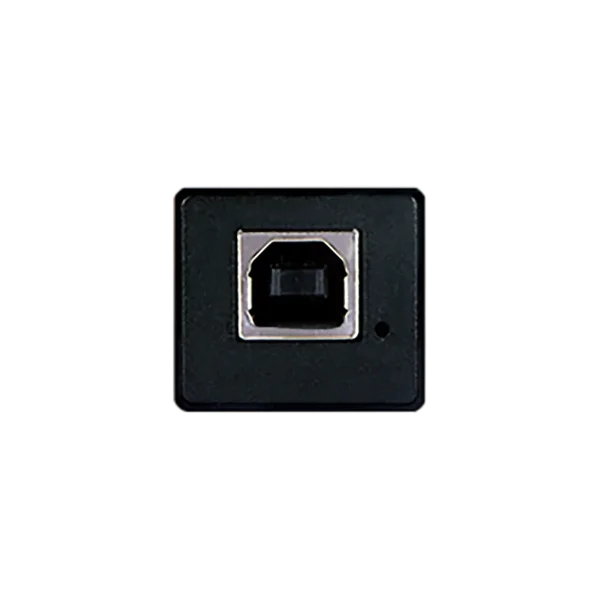

Input Port	1×USB Type-B

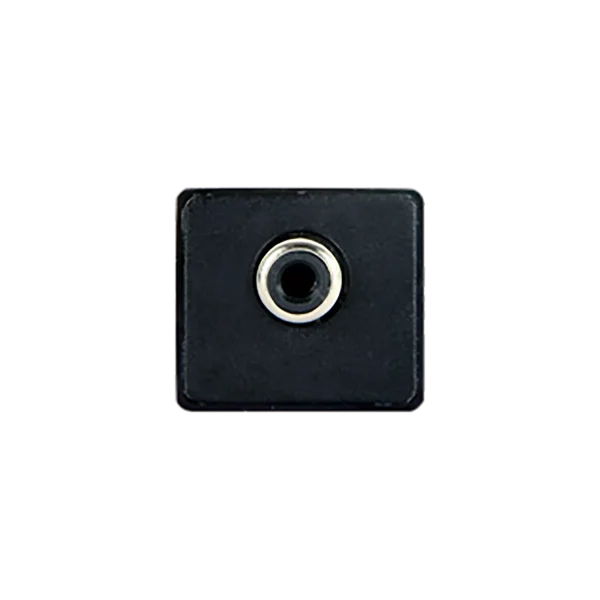

Output Port	1×RCA
Input Audio Format	USB Audio 2.0
Output Audio Format	LPCM 2.0
Audio Sample Rates	44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384kHz
ESD Protection	Human Body Model: ±12kV (Air Discharge) ±8kV (Contact Discharge)
Dimensions	77.5mm×22.5mm×25mm (W×H×D) [Case Only] 86.5m×22.5mm×25mm (W×H×D) [All Inclusive]
Weight	48g
Chassis Material	Aluminum
Silkscreen Color	Black
Operating Temperature	0˚C - 40˚C/32˚F - 104˚F
Storage Temperature	−20˚C - 60˚C/−4˚F - 140˚F
Relative Humidity	20 - 90% RH (Non-condensing)

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
