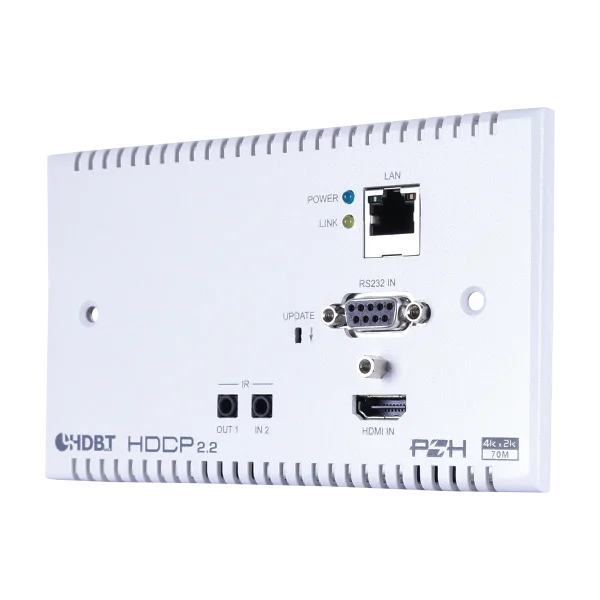

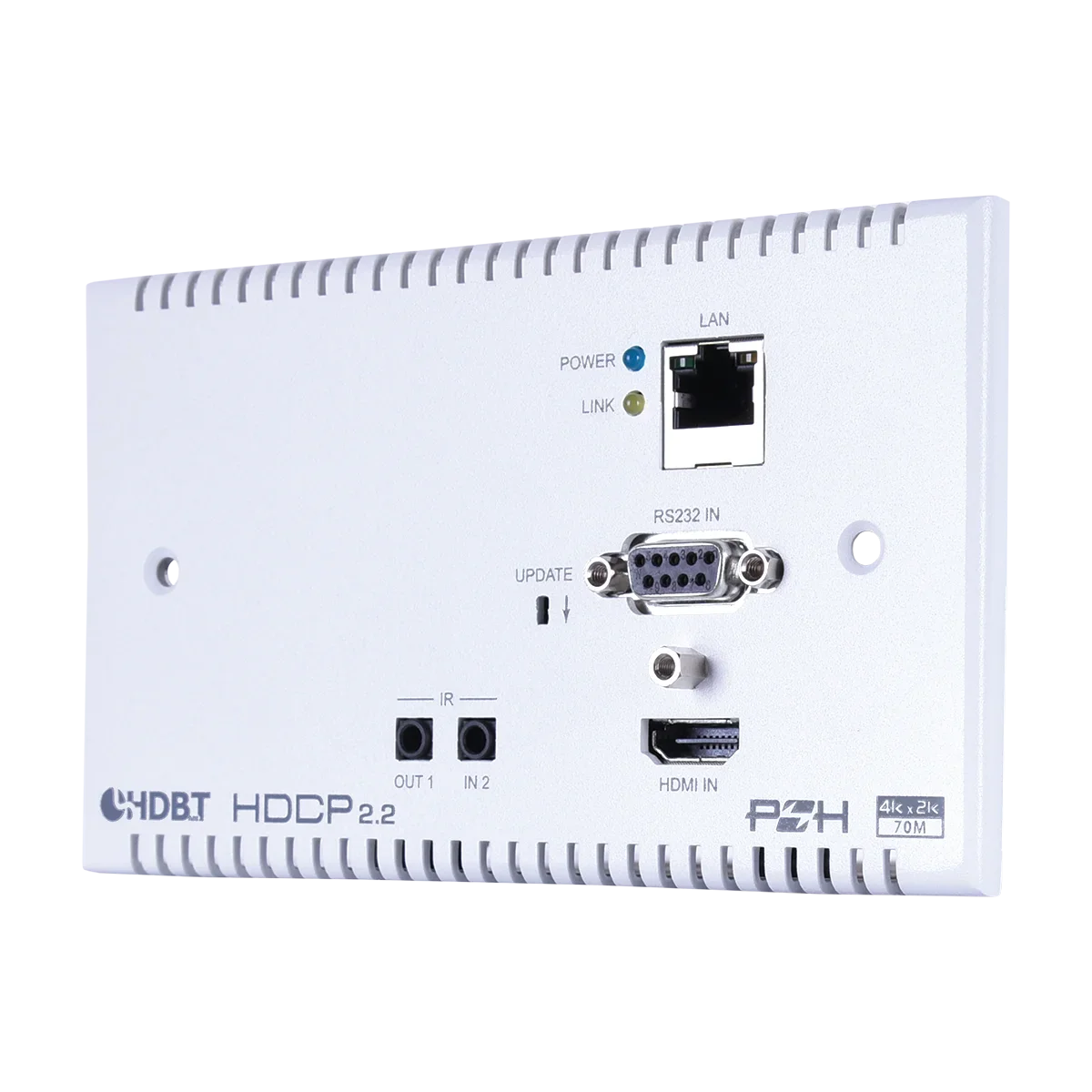

CH-1527TXWPUK

HDMI with 3D & 4K support. DVI signal compliant, Supports CEC bypass, Simultaneous transmission of uncompressed video, audio and data over a single 100m/328ft Cat5e/6/7 cable, 5Play™ convergence: HDMI, LAN, PoH & Control (IR & RS-2232), Supports resolutions up to 4K@50/60Hz (YUV 4:2:0), Supports standard 48V PoH from Transmitter (PSE) to Receiver (PD), Supports HDMI I/O cable distance up to 5m at 4K@50/60Hz (YUV4:2:0), Installation friendly wall/table mount case design

Hersteller-Nr.	CH-1527TXWPUK
Hersteller	Cypress Technology

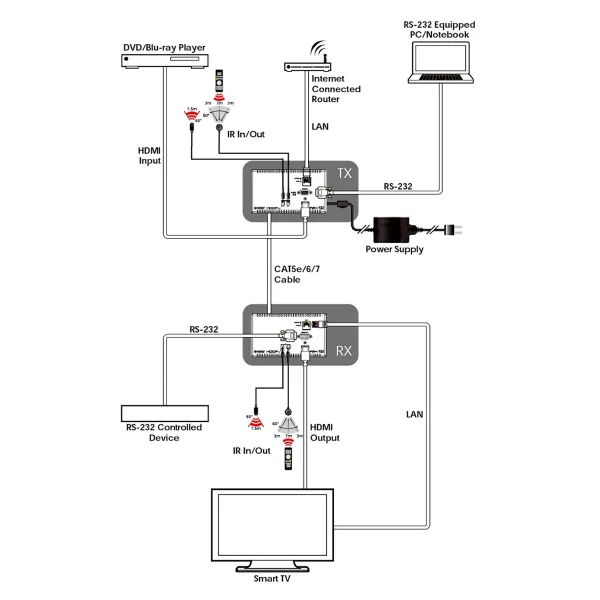

This HDMI over single Cat5e/6/7 Transmitter and Receiver set can send uncompressed, high resolution, video/audio over a single cable up to a distance of 100 meters. In addition to the audio and video capabilities, it can also bidirectionally transmit RS-232 and IR control signals as well as extending your local LAN to the display device UK 2 gang design allowing install on AC outlet.

The Receiver (PD) is powered by the 48V PoH (Power over Ethernet) function of the Transmitter (PSE), allowing for greater flexibility in installations.

Interfaces

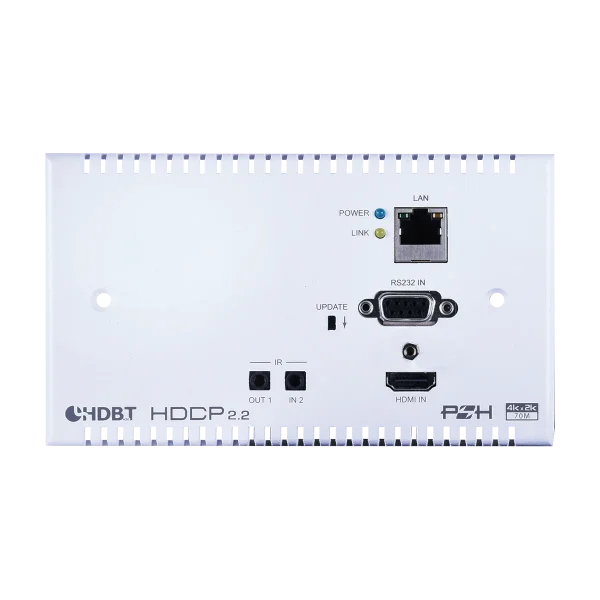

Input Port	1 x HDMI(Type-A) 1 x IR In(3.5mm) 1 x RS-232(DE-9) 1 x LAN(RJ-45)

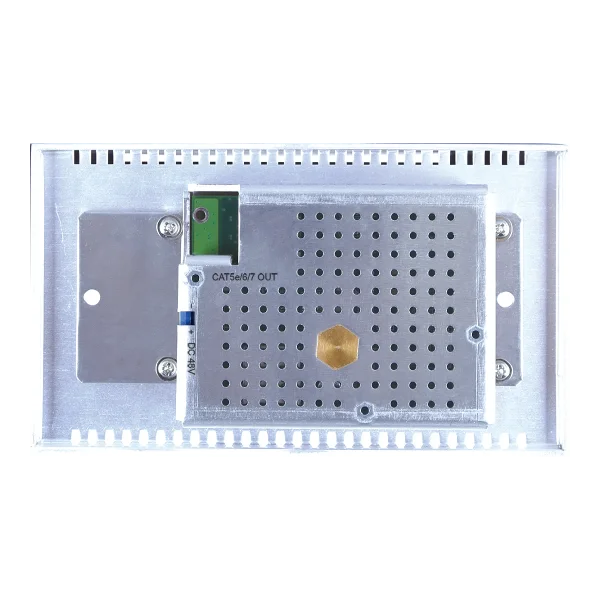

Output Port	1 x CAT5e/6/7 (RJ-45) 1 x IR Out (3.5mm)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.X
Input Signal Types	4K@60 YUV 4:2:0
Output Signal Type	4K@60 YUV 4:2:0

Resolutions
Maximum Input	HDMI	4096x2160p@60 YUV 4:2:0
Maximum Output	HDBaseT	4096x2160p@60 YUV 4:2:0

Power
Power Supply	48 V/0.83 A DC (US/EU standards, CE/FCC/UL certified)
Power Consumption	12.87 W (Include Receiver

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	White
Dimensions (W×H×D)	156mm (L) x 90mm (W) x 38mm (D) Jacks Excluded 156mm (L) x 90mm (W) x 44mm (D) Jacks Included
Weight	312 g

Field Firmware Update
Interface	RS232

Ordering Information
Model No.	Product Description
CH-1527TXWPUK	HDMI over Cat5e/6/7 Wall-Plate Extender with LAN/IR/RS-232/PoH
CH-1527RXWPUK	HDMI over Cat5e/6/7 Wall-Plate Extender with LAN/IR/RS- 232/PoH

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
