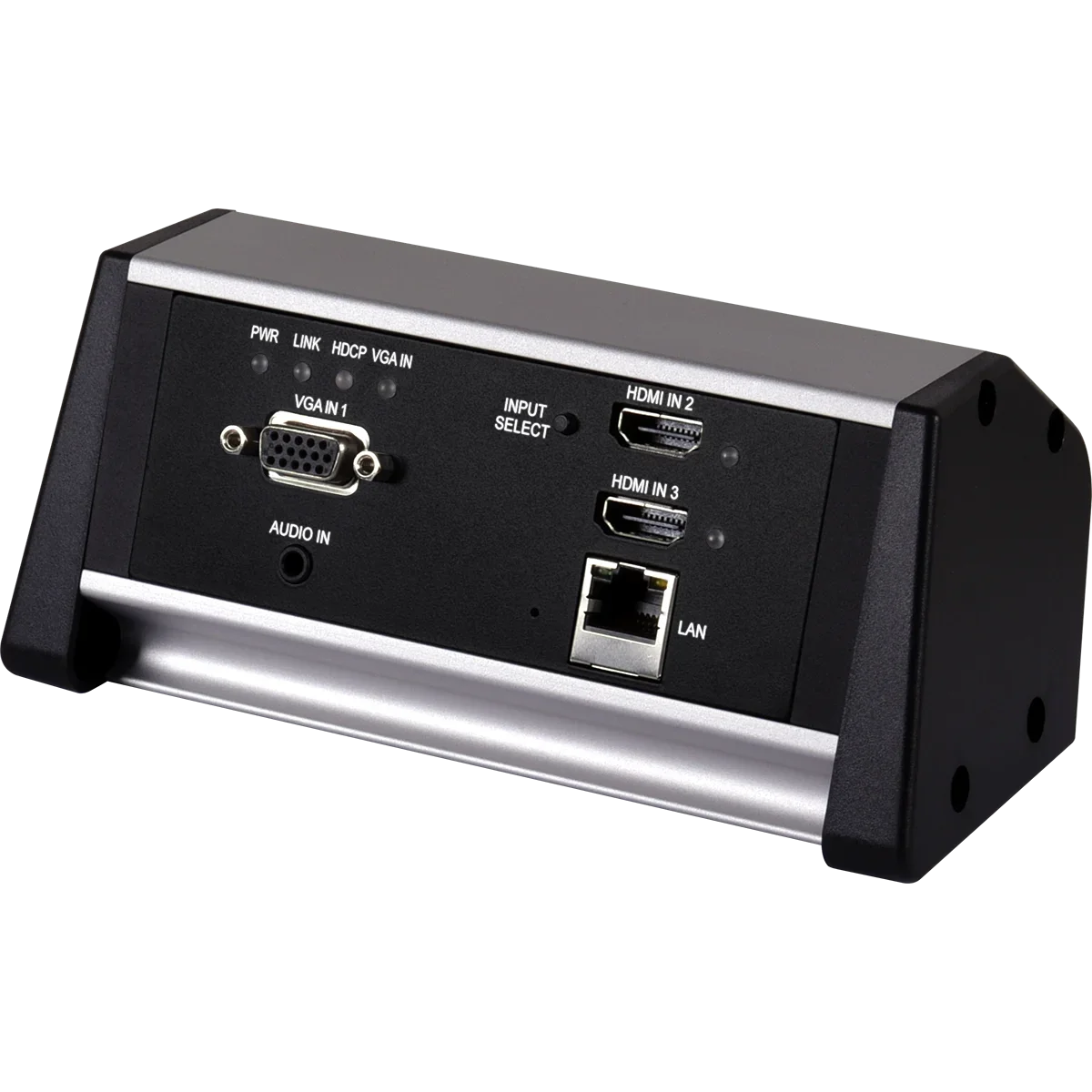

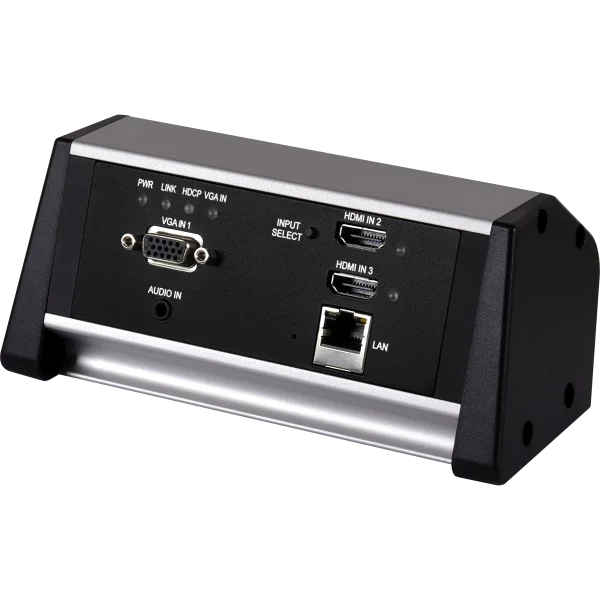

CH-2537TXM-TB

Supports CEC bypass, Supports Auto Source Switching, Front panel push button control, HDBaseT feature support: HD Video and Audio, 100BaseT Ethernet, and 48V PoH (PD), Basic signal event automation (via RS-232 or CEC w/ compatible Receiver), Unit may be powered via 48V PoH from a compatible HDBaseT Receiver, Controllable via a multi-function front panel button with OSD, or via WebGUI, Telnet, and RS-232 (w/ compatible Receiver only)

Hersteller-Nr.	CH-2537TXM-TB
Hersteller	Cypress Technology

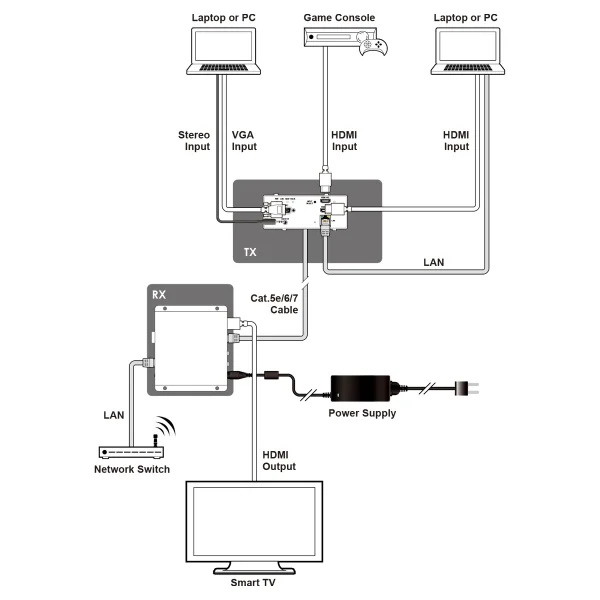

The CH-2537TXM-TB is a brand new AV concept for the commercial & corporate-market segments. Presentation equipment in corporate meeting rooms can be difficult to operate and provide the user with challenges when connecting their source to the installed AV system. Flexible meeting rooms are also becoming more commonplace, which is where the CH-2537TXM-TB provides the perfect balance between ease of use and portability.Providing the user with a flexible AV solution that removes the boundaries of how a meeting space can be used. When a device is connected to the CH-2537TXM-TB, CEC control can be applied to “power up” the connected display and select the correct HDMI input channel (programmed via the WebGUI).

This unit also supports automatic input detection between the HDMI and the VGA inputs using hot plug detection, offering the user ‘hands free’ control of the device. Despite the 10.2Gbps bandwidth limitation of HDBaseT this clever transmitter will automatically convert signals of higher bandwidths ensuring any HDMI 4KUHD signal can be passed through the HDBaseT system. The unit also features push button control on the front of the panel. The unit is powered by PoH supplied by a compatible receiver.

Interfaces

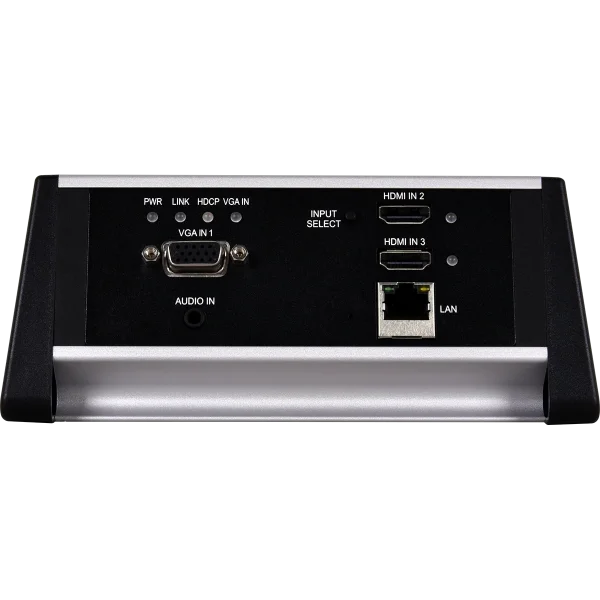

Input Port	2 HDMI (Type-A) 1 VGA (HD-15) 1 Stereo Audio(3.5mm)

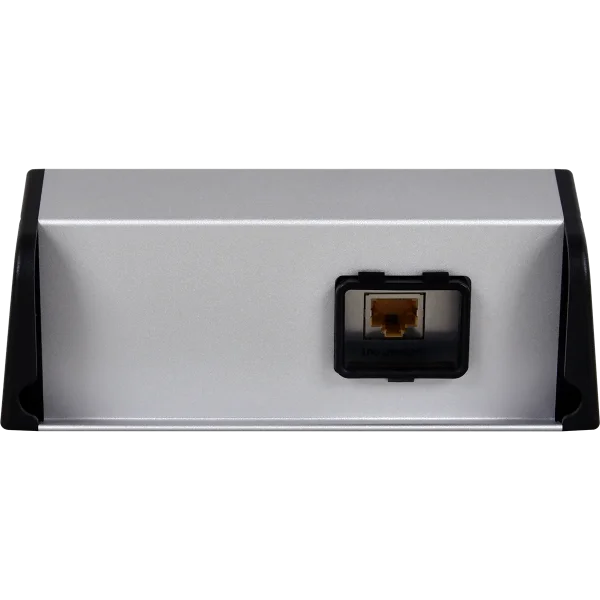

Output Port	1 HDBaseT(RJ-45)
Control I/O	1 LAN (RJ-45)
Service Port	1 USB (Type-A)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.X
Input Signal Types	HDMI	4K@60 12bit YUV 4:4:4, HDR
Output Signal Type	HDBT	4K@60 8bit YUV 4:4:4, HDR

Resolutions
Maximum Input	HDMI	4096×2160p@60
	VGA	1920x1200@60
Maximum Output	HDMI	4096×2160p@30

Power
Power Consumption	22.75W

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	201mm× 82mm× 60mm [Case Only] 201mm× 82mm× 65mm [All Inclusive]
Weight	467g

Ordering Information
Model No.	Product Description
CH-2537TXM-TB	UHD+ 3×1 HDMI/VGA over HDBaseT Table Box with PoH (PD)
CH-2527RX	UHD HDMI over HDBaseT Receiver with IR, RS-232, LAN & PoH (PSE)

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
