CH-2538STXWPEUK

Supports VGA input resolutions up to WUXGA (RB), Simultaneous transmission of uncompressed video, audio and data over a single 100m Cat.5e/6/7 cable at 1080p and 70m at 4K, Automatic input selection with hot plug detection enabling hands- free operation, Unit may be powered locally or via 48V PoH (PD) from a compatible HDBaseT Receiver (PSE), Wall plate is designed for EU two-gang sized enclosures, Front panel LEDs indicate input selection, power and link status

Hersteller-Nr.	CH-2538STXWPEUK
Hersteller	Cypress Technology

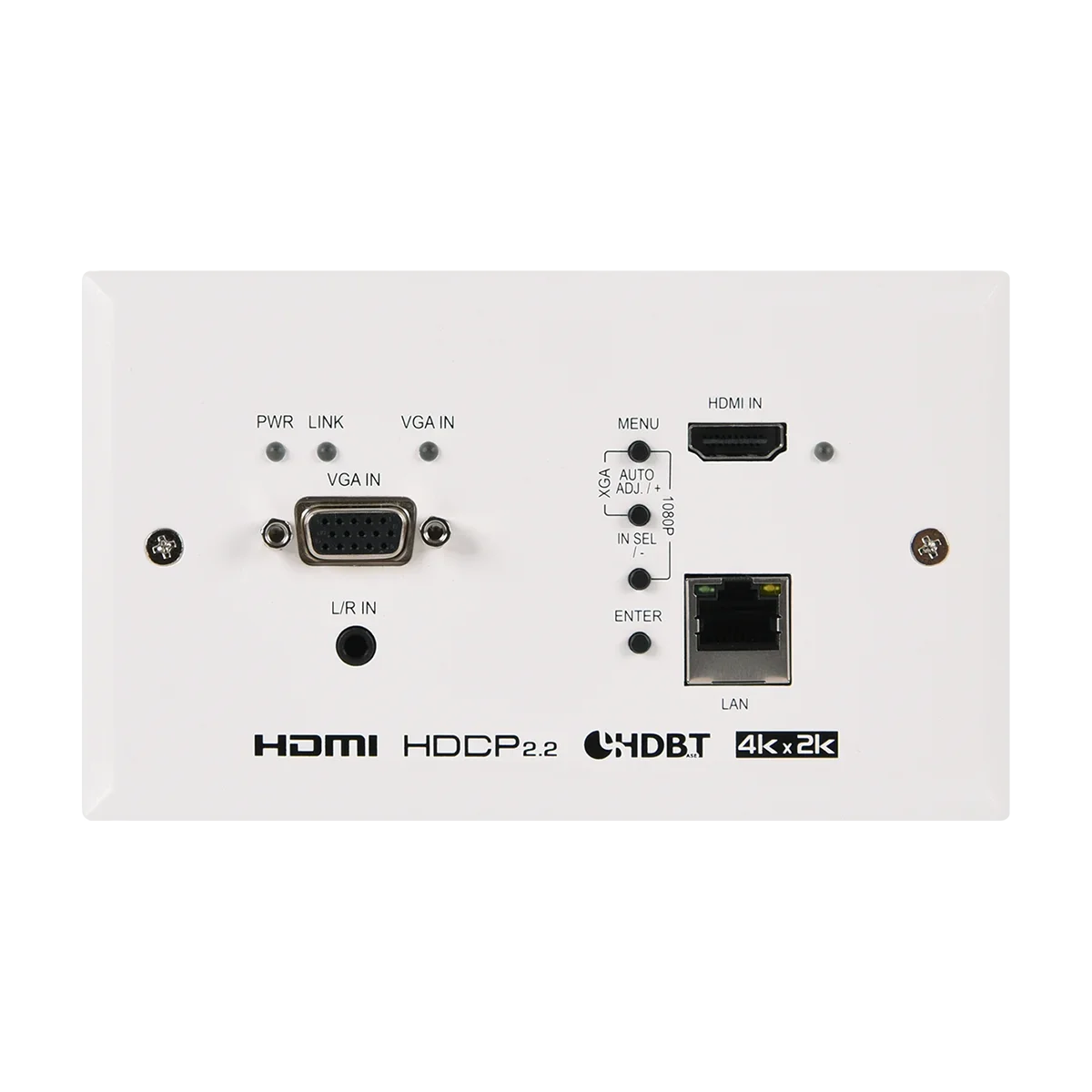

This UHD Wallplate Scaler is an HDMI/VGA switch with audio embedding and scaled HDBaseT output. The wall plate is designed for use with EU or UK twogang sized enclosures. It is suitable for various installation requirements with aesthetic considerations. The HDMI input supports resolutions up to 4K@60Hz (4:4:4, 8-bit). The VGA input supports resolutions up to WUXGA (RB) and with the use of the associated 3.5mm audio input, stereo audio may be embedded as well. To provide maximum compatibility with a wide range of display types, all sources are scaled to a user-selected resolution and timing (up to 4K@30Hz) for transmission over HDBaseT. This unit also supports automatic input selection between the HDMI and VGA inputs, with hot plug detection, enabling hands-free operation. Additionally, the unit may be powered locally or via 48V PoH (Power over HDBaseT) from a compatible HDBaseT Receiver, which allows for greater flexibility in installations. The unit is controllable via front panel controls with an OSD or RS-232 (via the RS-232 port on a compatible Receiver).

Interfaces
Input Port	1 HDMI (Type-A) 1 VGA (HD-15) 1 Stereo Audio (3.5mm)
Output Port	1 HDBaseT (RJ45)
Control I/O	1 LAN (RJ-45)
Service Port	1 USB 2.0 (Type-A)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.X
Input Signal Types	HDMI	4K@60 8-bit YUV 4:4:4
	VGA	1920x1080p@60Hz(RB)
Output Signal Type	HDBaseT	4K@60 8-bit YUV 4:2:0

Resolutions
Maximum Input	HDMI	4096×2160p@60
	VGA	1920x1200@60
Maximum Output	HDBaseT	4096×2160p@30

Power
Power Consumption	22W

Enclosure
Chassis Material	Aluminum
Chassis Color	White
Dimensions (W×H×D)	147mm× 87mm× 42mm [Case Only] 147mm× 87mm× 53mm [All Inclusive]
Weight	264g

Field Firmware Update
Interfaces	USB Flash Drive

Ordering Information
Model No.	Product Description
CH-2538STXWPEUK	UHD 2x1 HDMI/VGA over HDBaseT Wallplate Scaler (EU 2-Gang Box, UK Faceplate)
CH-2527RX	UHD HDMI over HDBaseT RECEIVER with IR, RS- 232, LAN & PoH (PSE)

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
