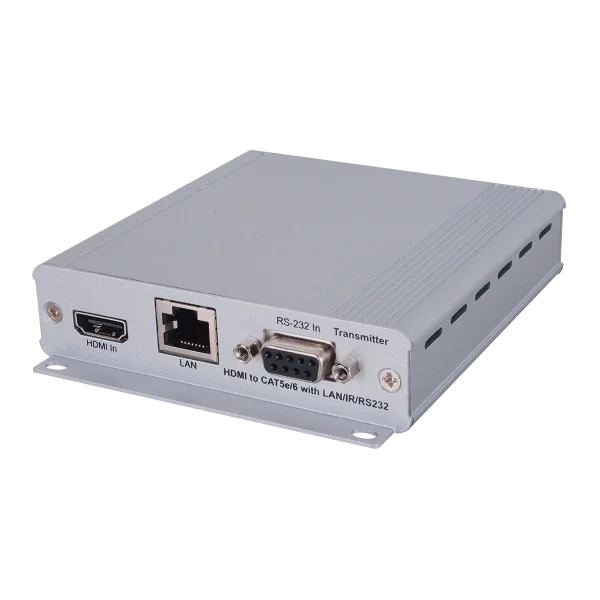

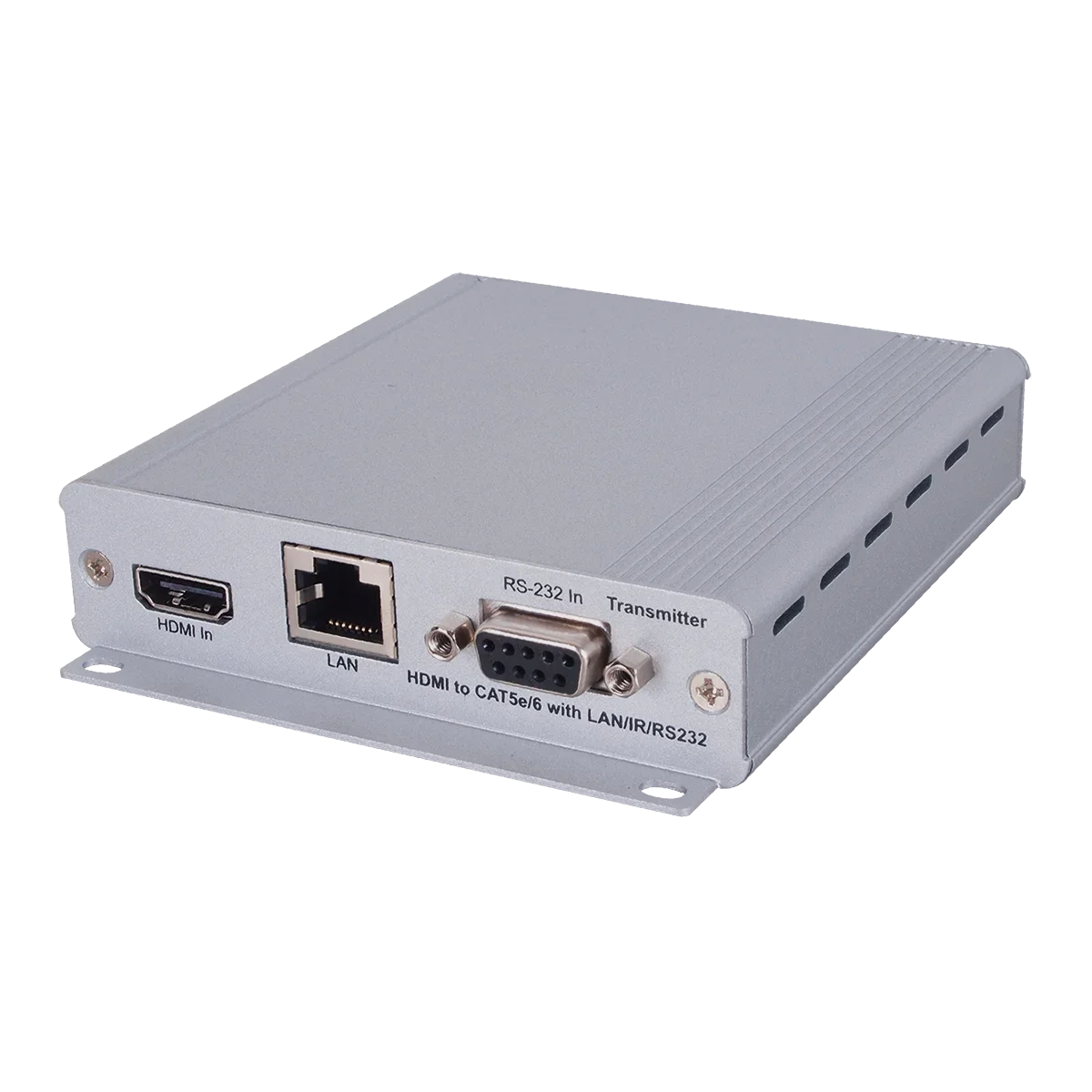

CH-507TXWBD

Supports HDMI 3D and 4K x 2K features, Supports HDCP repeater and CEC bypass, Supports distance up to 100m/328ft at 1080p and 70m/229ft at 4K through CAT5e/6/7 cable, Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, and Bitstream over HDMI, HDBaseT™ convergence: uncompressed high-defi nition Video and Audio, LAN serving, Bi-directionlal Power over Cable (PoC) and IR/RS-232 Control pass-through, Installation friendly

Hersteller-Nr.	CH-507TXWBD
Hersteller	Cypress Technology

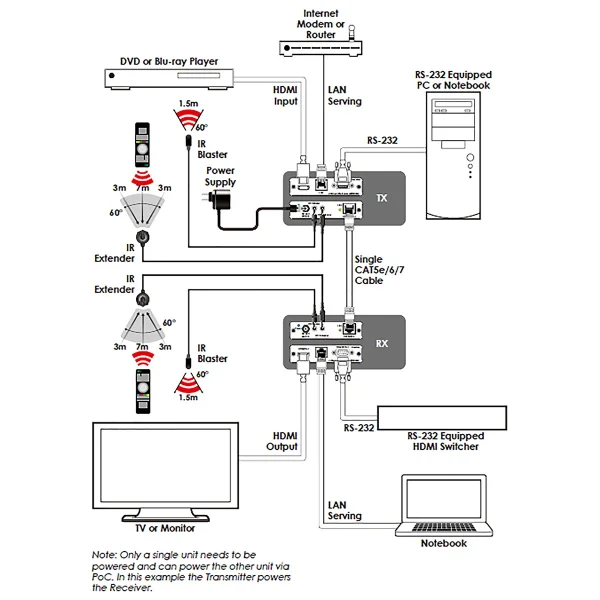

The HDMI over CAT5e/6/7 Transmitter and Receiver set can send uncompressed video/audio and IP data over an single run of CAT5e/6/7 cable up to 100m/328ft at 1080p and 70m/229ft at 4K. It has the added benefi t of control through the built-in RS-232 pass-through and 2-way IR control and a LAN serving connection. Additionally, it has bi-directional Power over Cable (PoC) functionality that allows for greater fl exibility in installations.

Interfaces

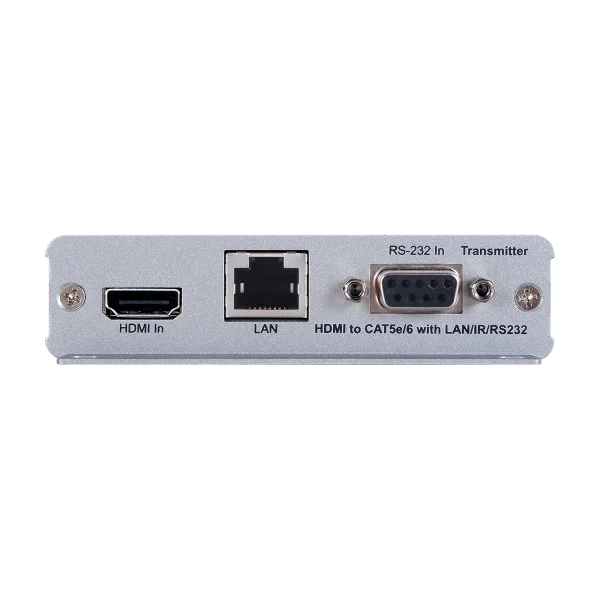

Input Port	1×HDMI 1×LAN 1×IR Extender 1×RS-232
Output Port	1×CAT5e/6/7 1×IR Blaster

Video
HDMI Compliance	HDMI2.0 (DVI 1.0)
HDCP Compliance	HDCP2.2
Input Signal Types	4K@60 YUV 4:2:0
Output Signal Type	4K@60 YUV 4:2:0

Resolutions
Maximum Input	HDMI	4096×2160p@60 YUV 4:2:0 4096×2160p@30 YUV 4:4:4
Maximum Output	CAT5e/6/7	4096×2160p@60 YUV 4:2:0

Power
Power Supply	24 V/1.25 A DC (US/EU Standards, CE/FCC/UL certifi ed)
Power Consumption	13 W

Enclosure
Chassis Material	Aluminum
Chassis Color	White
Dimensions (W×H×D)	102 mm × 25 mm × 120 mm
Weight	252g

Field Firmware Update
Interface	PCB on board, uses RS232

Ordering Information
Model No.	Product Description
CH-507TXWBD	HDMI over Single CAT6 Transmitter
CH-507RXWBD	CAT5e/6 to HDMI with LAN/IR/RS-232

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
