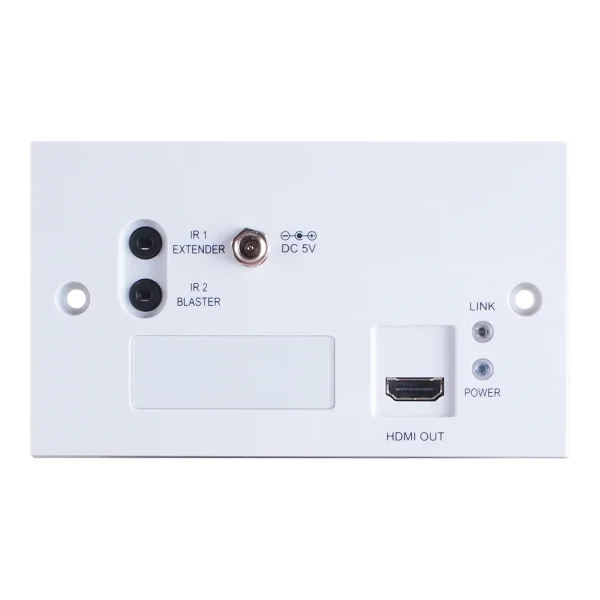

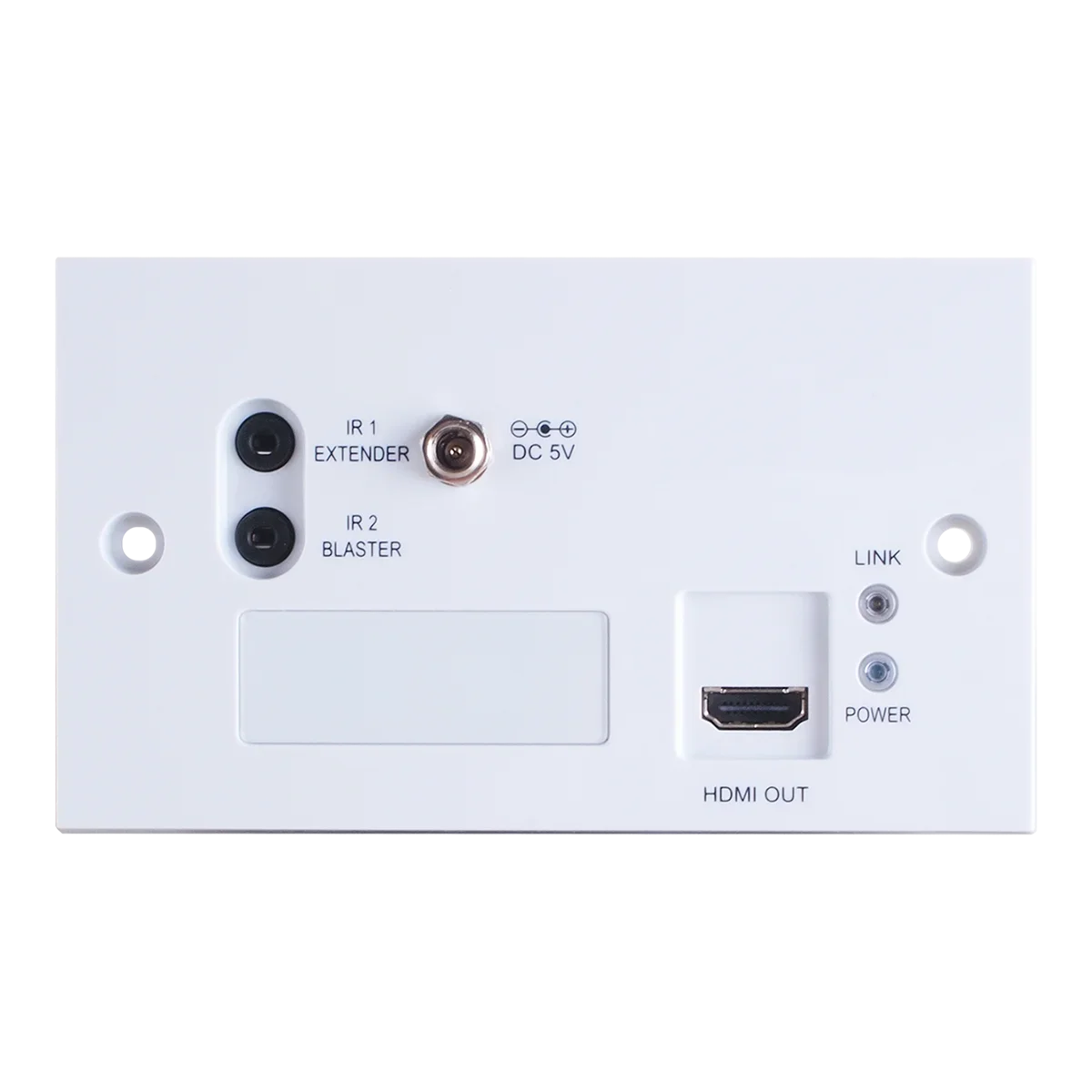

CH-514RXWPL

HDMI with 3D & 4Kx2K supported, HDCP and DVI compliant, Supports data rate from 250Mbps up to 3Gbps, Supports wide range of PC resolutions from VGA to WUXGA and HDTV resolutions up to 4Kx2K (3840x2160@30Hz and 4096x2160@24Hz), Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission (32-192kHz sample rate), Supports distance up to 60 meters through HDMI to CAT5e/6/7 Transmitter, Supports Bi-directional IR control, Wall plate design and installation friendly

Hersteller-Nr.	CH-514RXWPL
Hersteller	Cypress Technology

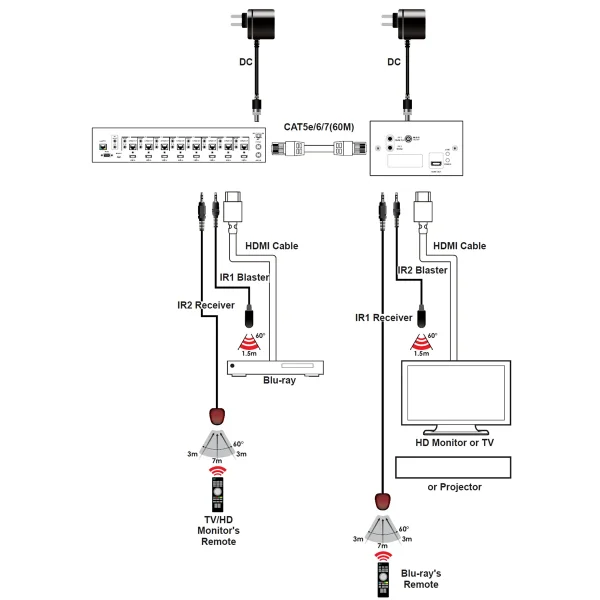

The HDMI over CAT5e/6/7 Wall plate Receiver make your home or office more efficient. This Receiver can receive uncompressed Video/Audio and Bi-directional IR over 60 meters from Transmitter. It is freely to connect with compatible Transmitter through CAT5e/6/7 for data transmission.

Video Bandwidth	300Mbps/10.2Gbps
Input ports	1 x CAT5e/6/7 1 x IR Extender
CAT5e/6/7 Input Cable Distance	Up to 60 meters
Output port	1 x HDMI, 1 x IR Blaster
Resolution	Up to 4Kx2K (3840x2160@30Hz/4096x2160@24Hz)
IR Frequency	30 ~50kHz
Power Supply	5V / 2.6A DC (US/EU standards, CE/FCC/ UL certified)
ESD Protection	Human-body Model: ±8kV (air-gap discharge) ±4kV (contact discharge)
IR Frequency	30~50 kHz
Dimensions (mm)	145.5 (W) x 85.5 (D) x 36.5 (H)
Weight (g)	154
Chassis Material	Plastic
Silkscreen Color	White
Operating Temperature	0 °C~40 °C
Storage Temperature	−20 °C ~ 60 °C/−4 °F~140 °F
Relative Humidity	20~90 % RH (non-condensing)
Power Consumption	5W

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
