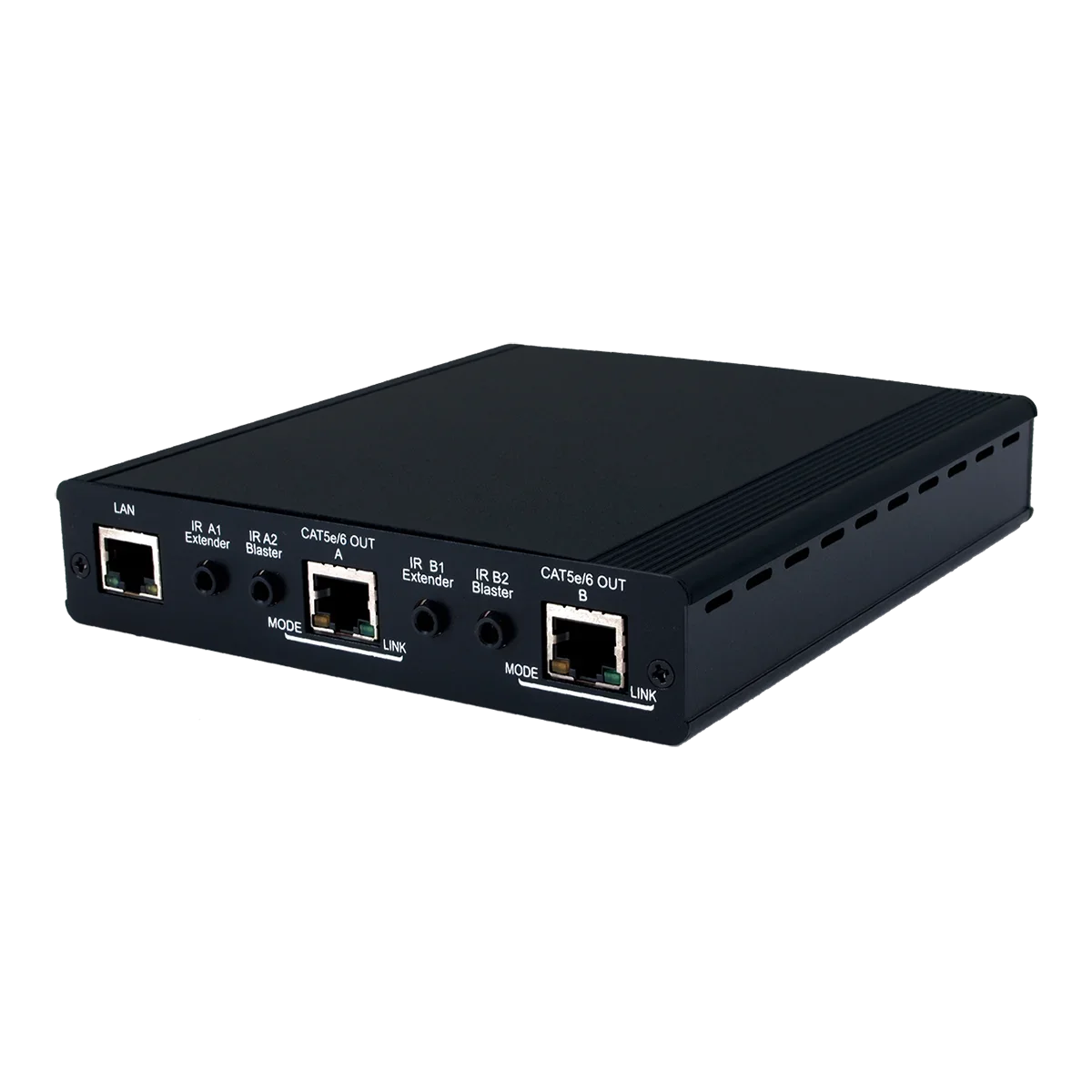

CHDBT-1H2CE

The HDMI and HDBaseT output are playing the same source simultaneously , Supports up to 4096x2160@60Hz YUV 4:2:0 8bit , Supports LPCM 7.1CH, Bitstream, HD Bitstream transmission (32-192kHz Fs sample rate) , Supports distances up to 100 meters through CAT5e/6/7 cables , Supports PoC (Power over Cable) with capable Receiver units

Hersteller-Nr.	CHDBT-1H2CE
Hersteller	Cypress Technology

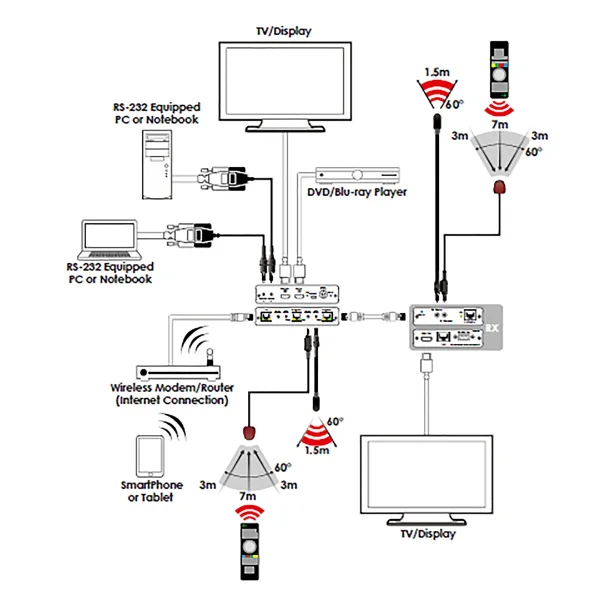

The HDMI over HDMI & CAT5e/6/7 Transmitter can supports resolutions up to 4Kx2K timing, 3D and multichannel digital audio formats such as LPCM 7.1CH, Bitstream, HD Bitstream from Hi-Def sources to one HDTV and CAT5e/6/7 outputs. This Transmitter has the ability to provide you with 1 HDMI and 2 HDBaseT outputs where the HDMI can be connected to HDMI display for instant display or cascading with another Transmitter and the HDBaseT can be connected to CAT5e/6/7 to HDMI Receivers for distance up to 100 meters.

Interfaces

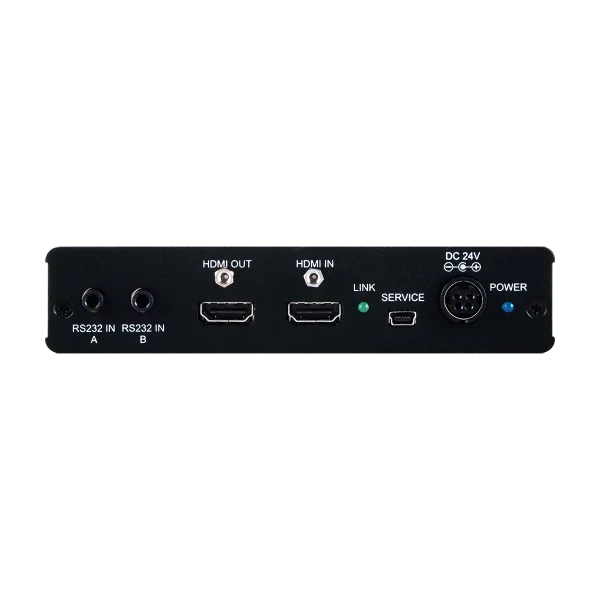

Input Port	1 HDMI (Type-A)

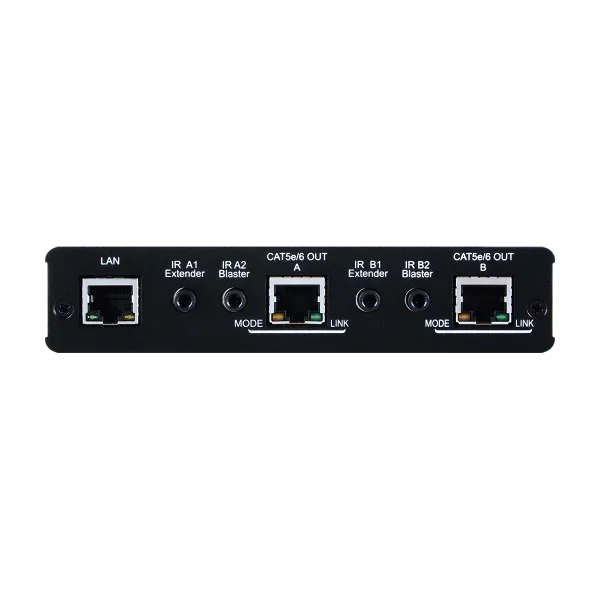

Output Port	1 HDMI (Type-A) 2 HDBaseT (RJ-45)
Pass-through Port	2 RS-232 (3.5mm) 2 IR IN (3.5mm) 2 IR OUT (3.5mm) 1 LAN(RJ-45)
Service Port	1 USB(Mini-B)

Video
HDMI Compliance	HDMI 2.0a (DVI 1.0)
HDCP Compliance	HDCP 2.x
Input Signal Types	4096x2160@60Hz YUV 4:2:0 8bit
Output Saignal Type	4096x2160@60Hz YUV 4:2:0 8bit

Resolutions
Maximum Input	HDMI	4096×2160p@60 4:2:0
Maximum Output	HDMI	4096×2160p@60 4:2:0
	HDBaseT	4096×2160p@60 4:2:0

Audio
HDMI	LPCM(8CH), Bitstream, HD Bitstream
HDBase T	LPCM(8CH), Bitstream, HD Bitstream

Power
Power Supply	24V/2.7A DC
Power Consumption	23.1W

Enclosure
Chassis Material	Aluminum
Chassis Color	Black
Dimensions (W×H×D)	145 mm x 178 mm x 30 mm
Weight	528g

Field Firmware Update
Interface	USB to PC

Ordering Information
Model No.	Product Description
CHDBT-1H2CE	1 by 3 HDMI to HDMI & CAT5e/6/7 with LAN/IR/RS-232 Transmitter
CH-1109RXC	CAT5e/6 to HDMI with LAN/IR/RS232
CH-501RX	CAT5e/6 to HDMI with IR
CH-506RX H	HDMI over CAT5e/6/7 Receiver
CH-507RX H	HDMI over CAT5e/6/7 Receiver
