CHDBT-1H7CE

HDMI and HDBaseT outputting mirrored content , Supports data rate up to 10.2 Gbps , Supports LPCM 7.1CH, Bitstream, HD Bitstream transmission (32-192kHz sample rate) , Supports distances up to 100 meters through CAT5e/6/7 cables , Supports Ethernet transmission rate up to 100Mbps , EDID selection between internal EDID or EDID form output monitor , Support 3D signal content with 3D equipped output monitor , Supports 24V POC with capable Receiver units

Hersteller-Nr.	CHDBT-1H7CE
Hersteller	Cypress Technology

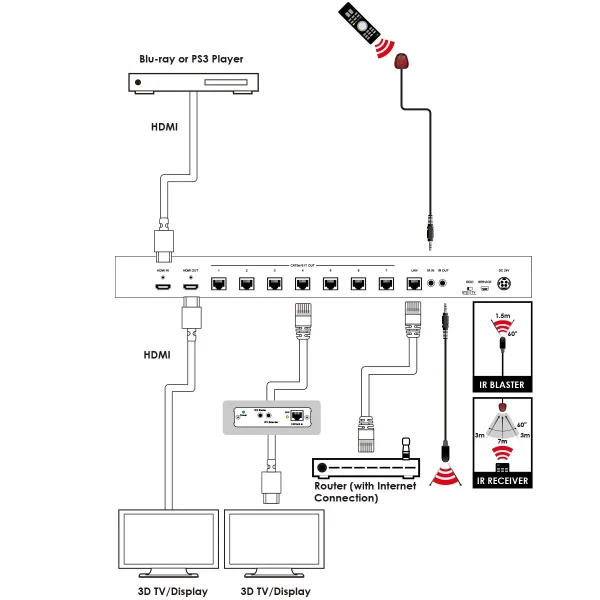

The HDMI over HDMI and CAT5e/6/7 Transmitter can support resolutions up to 4K@60 4:2:0 timing, 3D and 7.1 channel digital audio formats to one HDTV and seven HDBaseT outputs. The HDMI can be connected to HDMI display mirrored output as local monitoring and the HDBaseT can be connected to CAT5e/6/7 to HDMI Receivers for distance up to 100 meters. Further, a total of 100Mbps Ethernet transmission rate allows all connected device to share the Ethernet service and the POC function free the power shortage issue from the Receiver end.

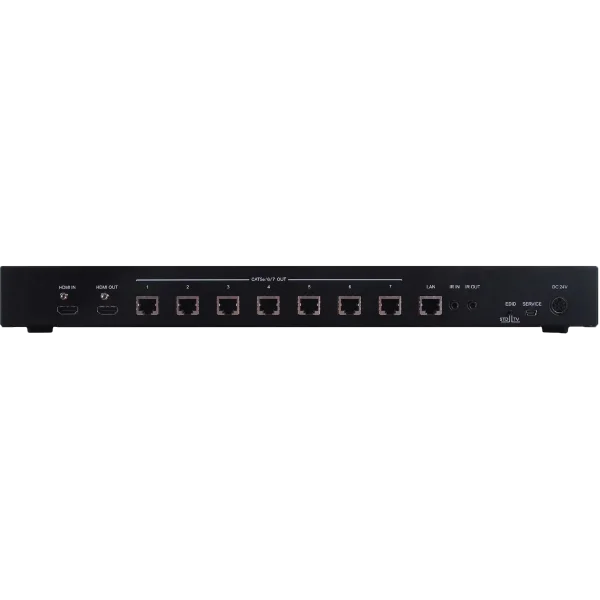

Interfaces
Input Port	1×HDMI (Type-A)
Output Port	7×HDBaseT (RJ-45) 1×HDMI
Pass-through Port	1×IR Extender (3.5mm) 1×IR Blaster (3.5mm) 1xLAN (RJ-45)
Service Port	1×USB (Mini B)

Video
HDMI Compliance	2.0
HDCP Compliance	2.X
Input Signal Types	4096x2160@60Hz YUV 4:2:0 8bit
Output Signal Type	4096x2160@60Hz YUV 4:2:0 8bit

Resolutions
Maximum Input	HDMI	4096x2160@60 4:2:0
Maximum Output	HDMI	4096x2160@60 4:2:0
	HDBT	4096x2160@60 4:2:0

Audio
HDMI	LPCM (8 Channels), Bitstream, HD Bitstream
HDBaseT	LPCM (8CH), Bitstream, HD Bitstream

Power
Power Supply	24V/6.25A
Power Consumption	85W

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	432mm×49mm×179mm
Weight	2140 g

Field Firmware Update
Interface	Mini-USB to PC

Ordering Information
Model No.	Product Description
CHDBT-1H7CE	1 by 8 HDMI over HDMI & CAT5e/6/7 with PoE and Ethernet Transmitter

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
