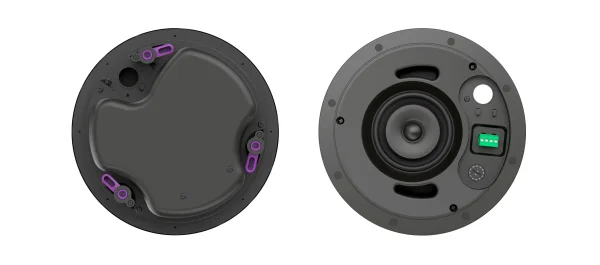

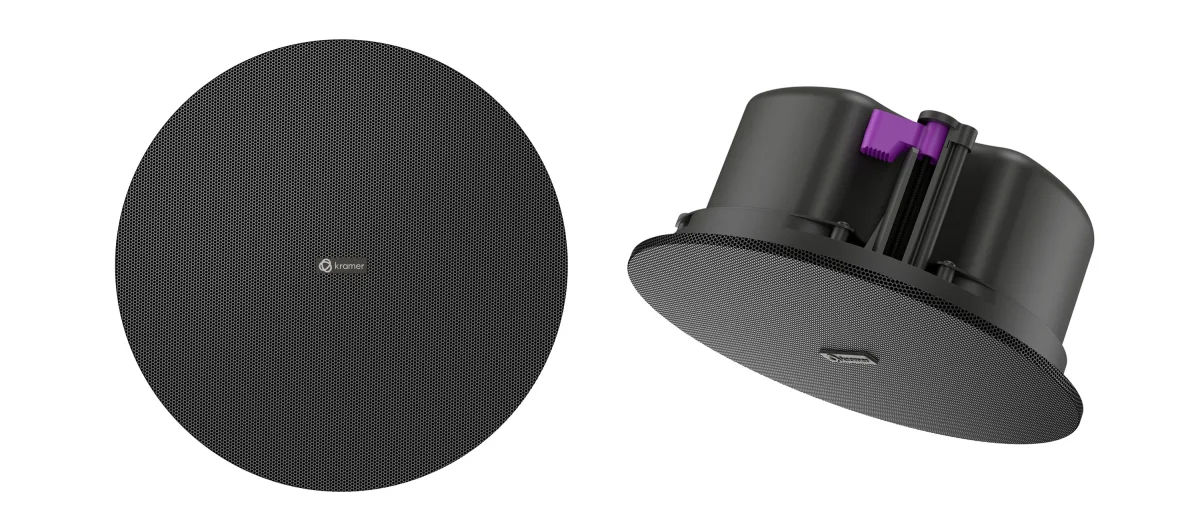

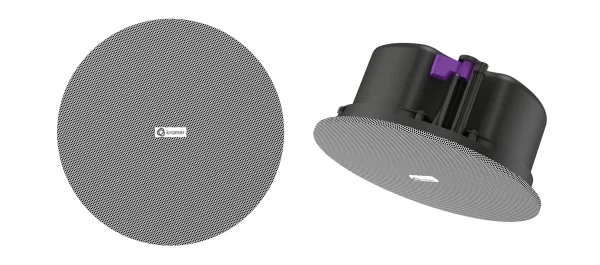

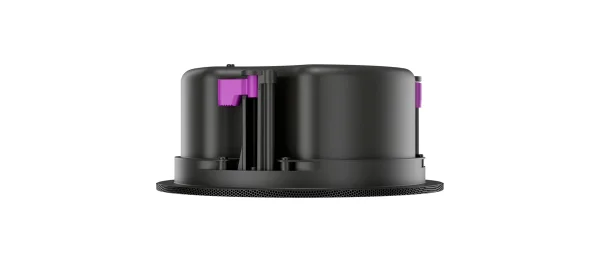

CL-4P – 4”, In−ceiling, two−way, closed back co−axial passive speaker

The CL−4P – low−profile high performance, 2−way passive in−ceiling speaker
The CL−4P is a plenum rated low−profile high−performance ceiling speaker that provides exceptional sound with high SPL. The speaker was designed with present mid−range optimized for speech clarity and background music. The speaker supports both 8Ω low impedance as well as several 70V/100V high impedance modes. The speaker’s low profile and light weight make it ideal for light ceilings with low clearance without compromising on the sound quality. Features front−access wiring for easy installation and troubleshooting. Both black & white magnetic grills are included in the box.

• Premium sound with low profile & small form factor
• Plenum rated UL2043 & UL1480A
• Low–impedance (8Ω) / high–impedance (70V/100V)
• Power ratings: 20 W continuous / 30 W peak
• Sensitivity (1W@1m, free field): 87dB SPL
• Maximum SPL (@1m): Continuous: 100dB SPL / Peak: 102dB SPL
• Industrial design: black & white bezel–less magnetic grills included in the box, Low profile — light weight, front–access wiring
• Eco–friendly mono–material packaging
• Included in the box — 1 speaker (single unit), 2 speakers are packed in a single master box
  Installation kit including and C–ring and bolts (mounting rails are not included and should be purchased separately)
  2 magnetic grills (1 white and 1 black per speaker)
  4–pin pluggable Euroblock connector, 28–12AWG
  Cutout template
  Accessories (bracket bolts, UL cable passthrough, Silicon cable passthrough, zip tie for securing the speaker cable)
  Quick Start Guide
