CLUX-11CA
Supports HDMI audio sampling rates up to 192 kHz , Supports Optical S/PDIF audio sampling rate up to 48 kHz , Supports TMDS clock frequency up to 225 MHz , Supports high-bit-rate (HBR) audio , HDMI cable distance tested with 1080p at 8-bit or 12-bit resolution, the input and output can run up to 15 meters (8-bit) or 10 meters (12-bit), Low power consumption , Supports 3D signal
| Hersteller-Nr. | CLUX-11CA |
| Hersteller | Cypress Technology |
|
Interfaces |
|
|
Input Port |

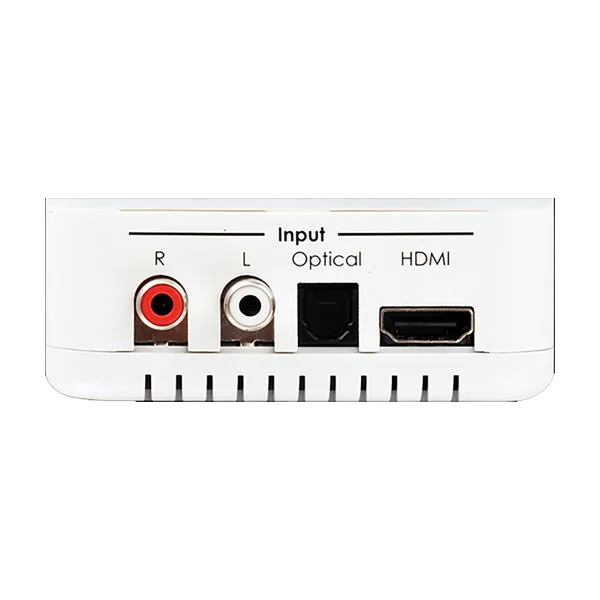

1×HDMI 1×Optical (Digital Audio) 1×L/R (Analog Audio) |
|
Output Port |

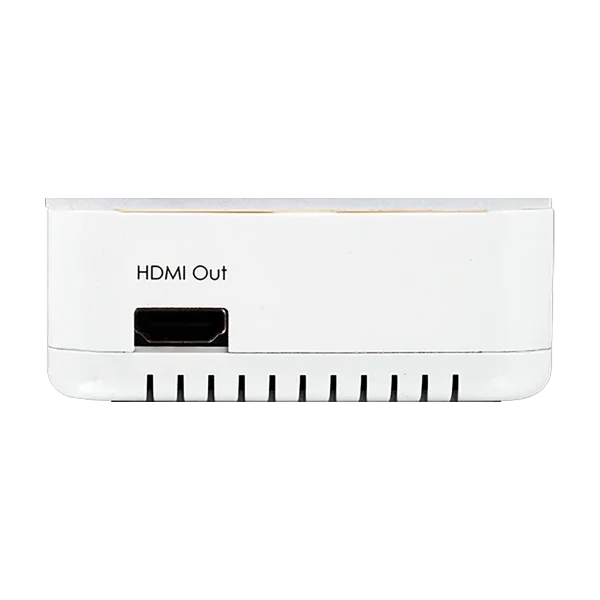

1×HDMI |
|
Video |
||
|
HDMI Compliance |
HDMI 1.4a (DVI 1.0) |
|
|
HDCP Compliance |
1.4 |
|
|
Input Signal Type |
1080p60 12-bit |
|
|
Output Signal Type |
1080p60 12-bit |
|
|
Resolutions |
||
|
Maximum Input |
HDMI |
1920×1080p@60 |
|
Maximum Output |
HDMI |
1920×1080p@60 |
|
Audio |
|
|
HDMI |
LPCM 2/5.1/7.1, Dolby 5.1, DTS 5.1, Dolby Digital+, Dolby TrueHD & DTSHD Master Audio |
|
Optical |
LPCM 2, Dolby Digital & DTS Digital Audio 5.1 |
|
Power |
|
|
Power Supply |
5 V/1 A linear power adaptor (US/EU Standards, CE/FCC/UL Certified) or 5 V/1.2 A switching power adaptor (with universal plug, CE/FCC/UL certified) |
|
Power Consumption |
2.7W |
|
Enclosure |
|
|
Chassis Material |
Plastic |
|
Chassis Color |
White |
|
Dimensions (W×H×D) |
90.7mm × 34mm × 85.8mm |
|
Weight |
107g |
|
Field Firmware Update |
|
|
PCB on board, uses RS232 |
|
ORDERING INFORMATION |
|
|
Model No. |
Product Description |
|
CLUX-11CA |
HDMI Audio Inserter |
Keine Maßangaben verfügbar.
