Compact HDMI to HDMI Scaler Box
Klicken zum Vergrößern
Cypress Technology

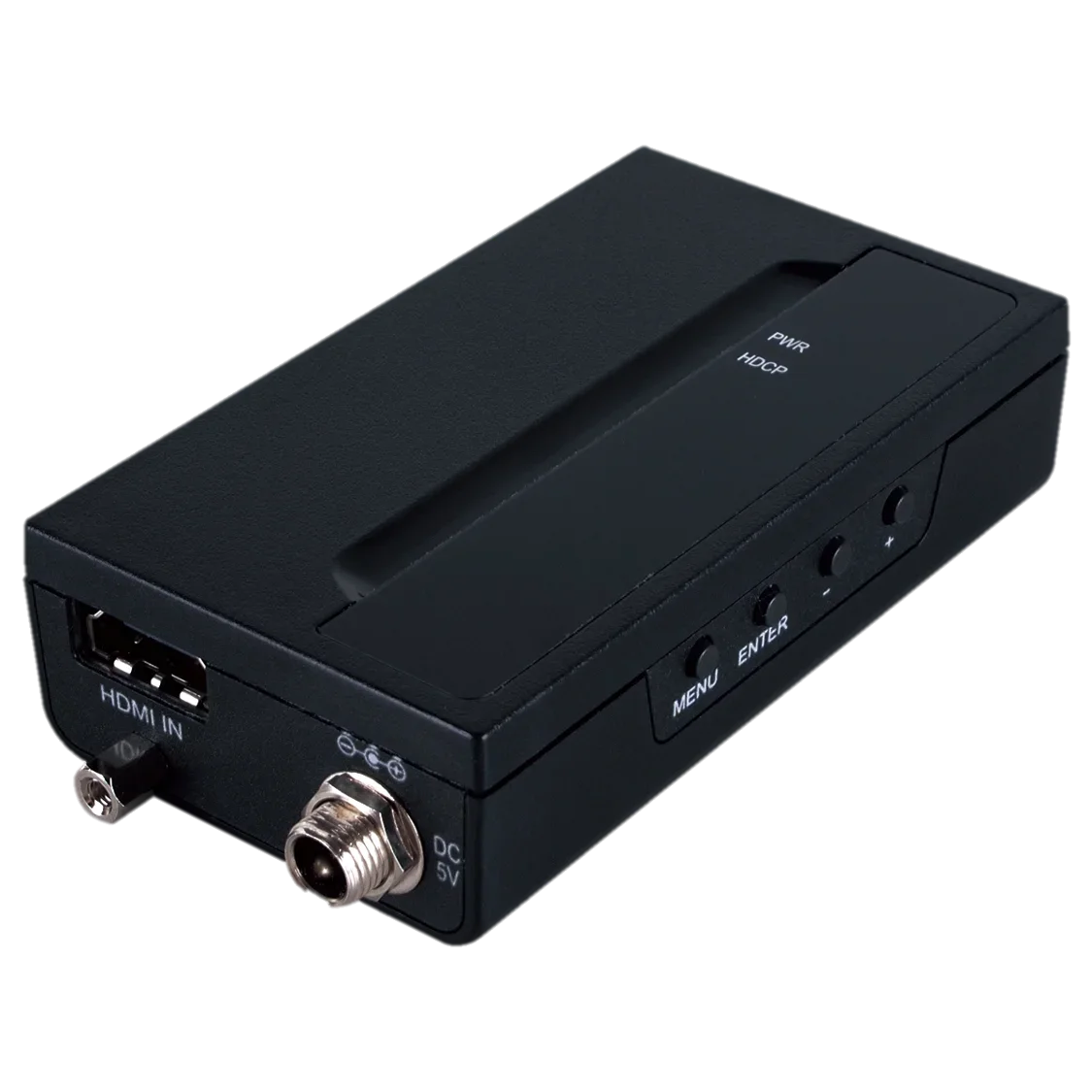

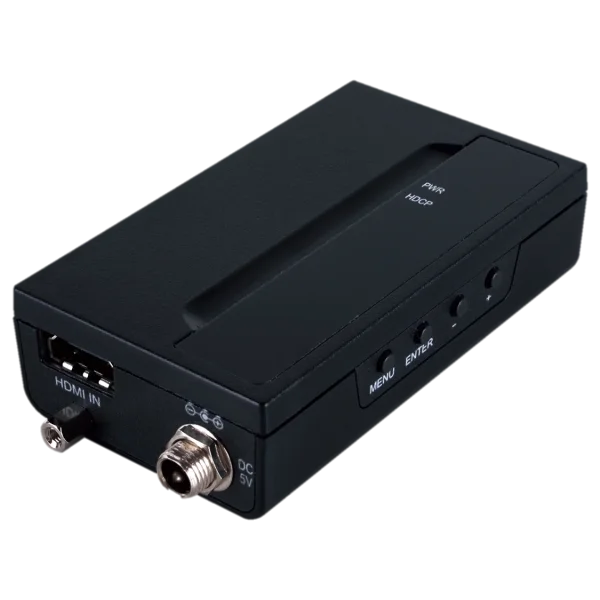

Compact HDMI to HDMI Scaler Box

Manual adjustments for contrast, brightness, hue and saturation are achievable, Free run output mode that provides stable timing once no video input is present , Maximum pixel rate 165Mhz on output and 225Mhz on input. Support resolution up to 1920x1200@60RB and 1080P@60 , Support LPCM, Bitstream and HD Bitstream audio , Support audio mute and maximum audio sampling rate of 192kHz , Supports color space, frame rate and deep color conversion , Supports CEC bypass , Supports Native EDID copies from sink device such as TV , Easily firmware update via USB in field

Hersteller-Nr.CP-302MN
HerstellerCypress Technology
The compact HDMI to HDMI Scaler box is designed to scale HDMI sources, either HD or PC resolution, to an alternative HDMI resolution (HD or PC). Both of maximum support input and output resolution is up to 1920 x 1200. The HDMI, HDCP and DVI are compliant which is perfect solution for the integration of sources where resolution and/or resolution type requires conversion. The video contrast, brightness, hue and saturation are able to be adjusted manually.
Interfaces

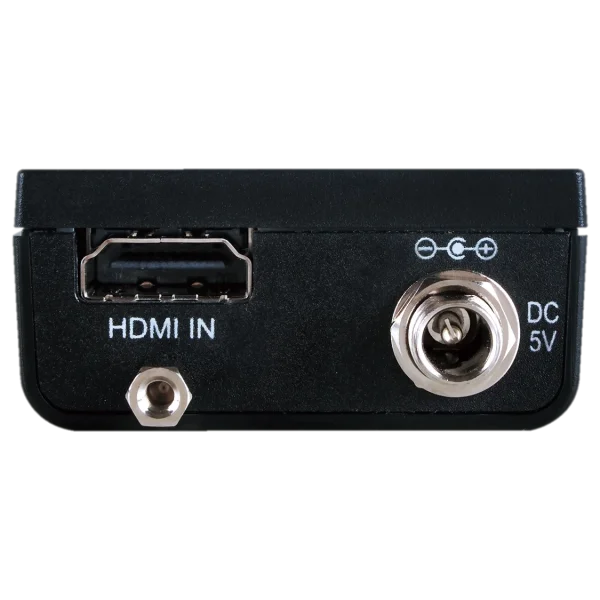

Input Port
  • 1 HDMI
  • 1 Mini USB (Service only)

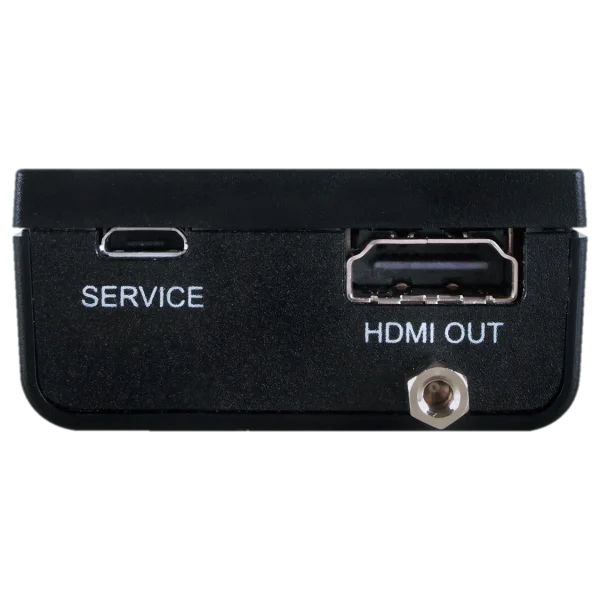

Output Port
  • 1 HDMI
Video
HDMI Compliance
  • HDMI 1.3 (DVI 1.0)
HDCP Compliance
  • 1.4
Input Signal Type
  • 1080p@ 12bit
Output Signal Types
  • 1080p@ 8bit
Resolutions
Maximum Input

HDMI

  • 1080p
Maximum Output HDMI
  • 1080p
Enclosure
Chassis Material
  • Plastic
Chassis Color
  • Black
Dimensions (W×H×D)
  • 51 mm x 22.5 mm x 98 mm [Case Only]
  • 50 mm x 22.5 mm x 85 mm [All Inclusive]
Weight
  • 75g
Power
Power Supply
  • 5V / 2.6A
Power Consumption
  • 2.42 W
Field Firmware Update



Interface
  • USB
Ordering Information
Model No.Product Description
CP-302MN
  • Compact HDMI to HDMI Scaler Box

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)
Auf Anfrage
zzgl. 10,00 € Versand • ab 500 € versandkostenfrei
Auf Bestellung
Lieferzeit: ca. 30 Tage
