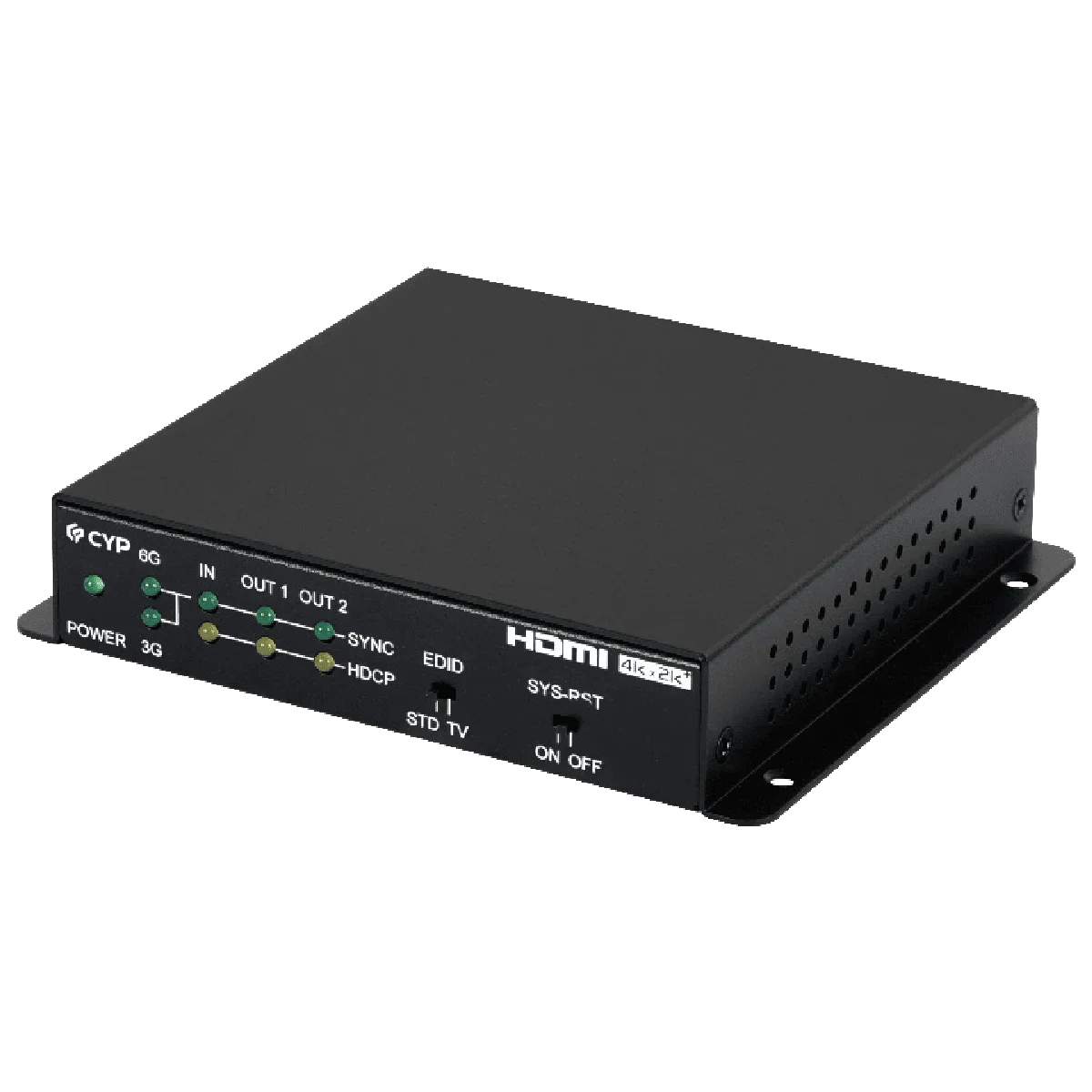

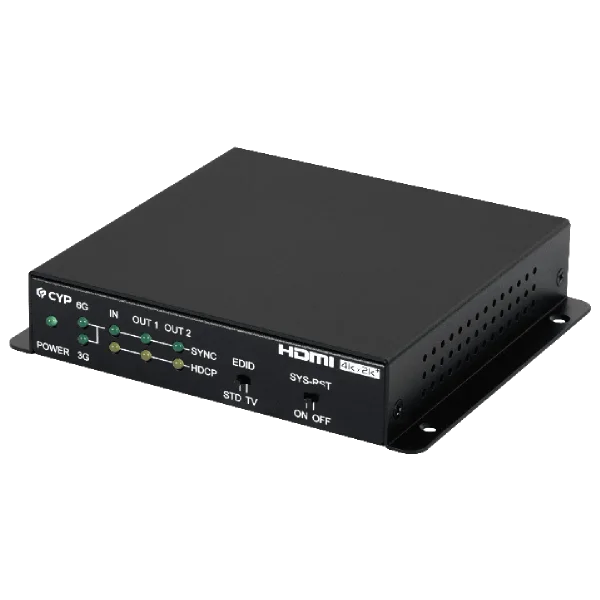

CPLUS-V2TN

HDMI with HDR, 3D & 4K@60Hz support, Supports pass-through of LPCM 7.1, Bitstream and advanced HD Bitstream audio formats, Automatic 4K to 1080p down-scaling and color space conversion (4:4:4 to 4:2:0) for each independent output based on each connected display’s EDID, Independent HDCP management engine for each output ensures stable HDCP performance, Simple to use EDID management options, Support for the CEC “active source” command to periodically reset input selection on CEC-compatible connected displays, Controllable via front-panel switches

Hersteller-Nr.	CPLUS-V2TN
Hersteller	Cypress Technology

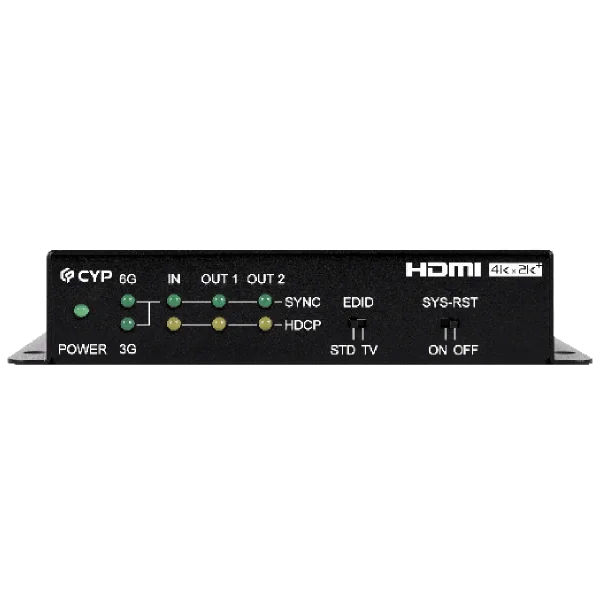

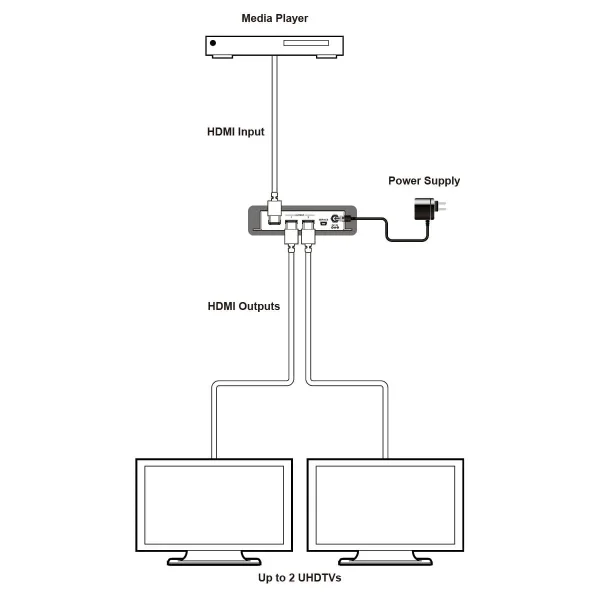

This 4K UHD HDMI Splitter with HDCP 2.2 is an advanced solution providing high performance audio and video support including HDR and other features defined by the HDMI 2.0a specification. 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR, are able to be passed along to 2 outputs. Pass-through of multiple digital audio formats such as LPCM 7.1, Bitstream and advanced HD Bitstream with audio sampling rates up to 192kHz are also supported. An independent HDCP management engine for each output ensures stable HDCP performance. When a mixture of displays with different specifications are connected, each output will automatically scale 4K to 1080p or apply color space conversion (4:4:4 to 4:2:0), as appropriate, based on each connected display’s EDID. Support for the CEC “active source” command to periodically reset input selection on CEC-compatible connected displays is also included. This unit is controllable via simple front-panel switches with easy to read informational LEDs.

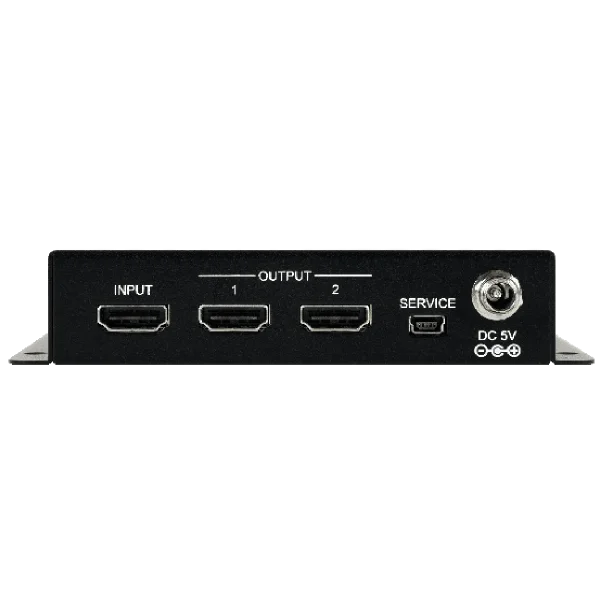

Interfaces
Input Port	1 HDMI (Type-A)
Output Port	2 HDMI (Type-A)
Service Port	USB (Mini B)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.2
Input Signal Type	4K@60 8bit YUV 4:4:4, HDR 12
Output Signal Type	4K@60 8bit YUV 4:4:4, HDR 12
		Resolutions
Maximum Input	HDMI	4096×2160p@60
Maximum Output	HDMI	4096×2160p@60

Audio
Digital Format	HDMI LPCM(8 Channels), Bitstream, HD Bitstream

Power
Power Supply	5V/1.2A DC
Power Consumption	2.2W

Enclosure
Chassis Material	Metal
Chassis Color	Black
Dimensions (W×H×D)	128mm×25mm×108mm [Case Only] 128mm×30mm×117mm [All Inclusive]
Weight	358g

Field Firmware Update
PC

ORDERING INFORMATION

Model No.	Product Description
CPLUS-V2TN	UHD+ 1×2 HDMI Splitter

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
