CSC-107

Switchable HDMI input and VGA input with a 3.5mm analog stereo audio input , Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output over HDMI , Supports up to 1080p or WUXGA (1920x120060Hz RB) video input over VGA , Auto input switching by detecting HDMI/VGA signal. , Output preferred resolution of connected display(NATIVE mode) , Comprehensive output picture adjustments via RS-232 (contrast, brightness, hue, saturation, sharpness, RGB (color tone) level and aspect ratio size) , Supports LPCM 2.0 digital/analog audio input and output

Hersteller-Nr.	CSC-107
Hersteller	Cypress Technology

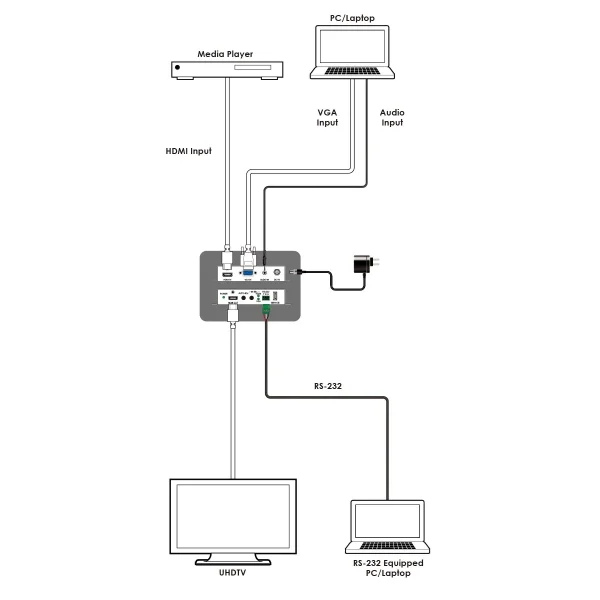

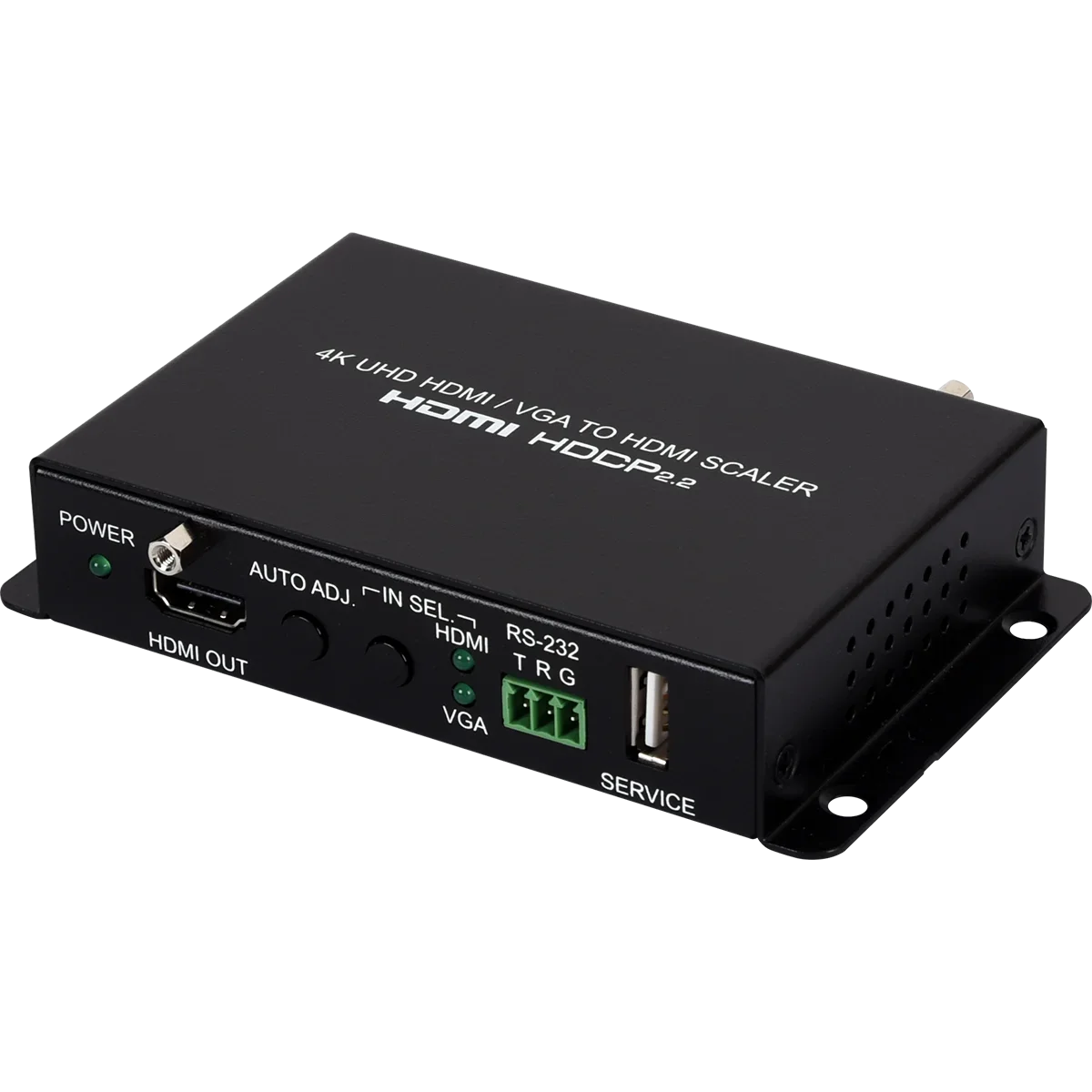

This compact 4K UHD HDMI/VGA to HDMI Switching Scaler accepts a wide range of resolutions from 480i up to 1080p/WUXGA over the VGA input and up to 4K@60Hz (4:4:4) on the HDMI input. With the use of the 3.5mm audio input, stereo audio may be embedded with either source as well. Scaled HDMI output resolutions are available up to 4K@60Hz (4:4:4). Integrated EDID management options allow for control over the way connected sources detect the unit. The included automatic source detection and switching feature allows the unit to switch automatically to the most recently connected source, or to switch to the alternate input if the current one becomes disconnected. The Auto Adjustment function, activated by a button on the unit, can automatically adjust the image position of the VGA source if necessary. This unit is an ideal device for integrating previously incompatible sources and displays, or for providing a flexible auto-detection input point for a small boardroom or huddle space. This unit is controllable via front panel buttons and RS-232.

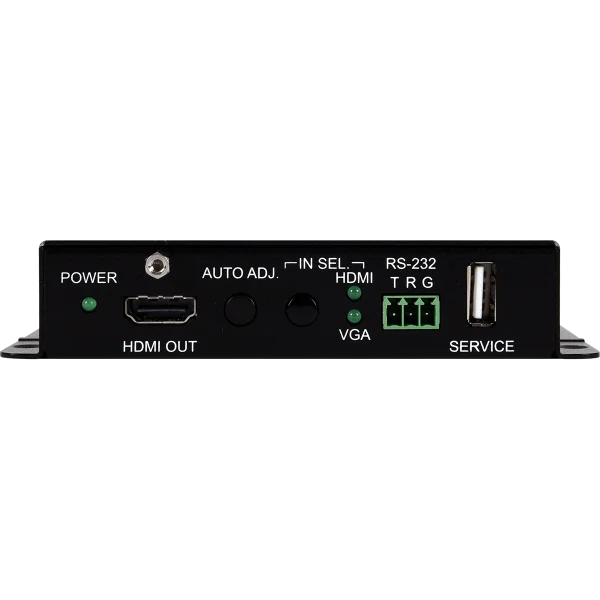

Interfaces

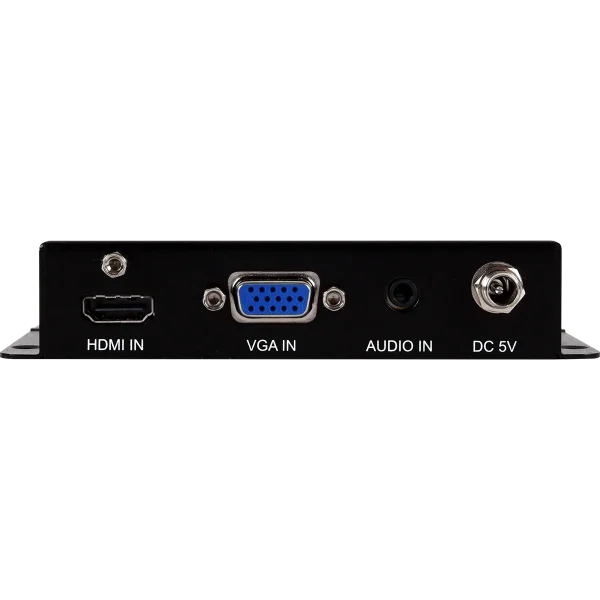

Input Port	1 HDMI(Type-A) 1 VGA
Output Port	1 HDMI (Type A)
Control I/O	1 RS-232 (3-pin Terminal Block)
Audio	1 Analog stereo (3.5mm)
Service Port	1 USB (Type-A)

Video
HDMI Compliance	2.0 (DVI 1.0)
HDCP Compliance	2.x
Input Signal Types	4K@60 8-bit 4:4:4, HDR10
Output Signal Type	s 4K@60 8-bit 4:4:4 VGA WUXGA

Resolutions
Maximum Input	HDMI	4096×2160p@60
	VGA	1920x1200@60RB
Maximum Output	HDMI	4096×2160p@60

Audio
	HDMI	LPCM (8 Channels), Bitstream, High Bit Rate Bitstream
	Analog Input	2 Vrms impedance 40kΩ

Power
Power Supply	5V/2.6A (Locking)
Power Consumption	6.29W

Enclosure
Chassis Material	Metal
Chassis Color	Black
Dimensions (W×H×D)	108mm×24mm×75mm [Case Only] 110mm×25mm×75mm [All Inclusive]
Weight	244g

Ordering Information
Model No.	Product Description
CSC-107	UHD+ 2x1 HDMI/VGA to HDMI Scaler

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
