CSLUX-300I

Supports HDMI, Composite Video, S-Video, PC (VGA)/HD (Component) and SDI inputs, Supports HDMI and VGA/Component (with adaptor) outputs, Supports SDI loop through output, Supports analog stereo, optical and coaxial digital inputs and optical digital output, analog stereo output or embedding to HDMI output, Supports conversion of multiple video formats and audio input to HDMI or PC/HD and analog stereo outputs, Supports EDID and HDCP, Supports 3D de-interlacing, noise reduction and 3D comb filter, Supports frame rate conversion, Supports RS-232, remote handset, and front panel control, Supports SDI Standards of SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292M, SMPTE 259M-C, Supports SDI bit rates at 2.970 Gb/s, 2.970/1.001 Gb/s, 1.485 Gb/s, 1.485/1.001 Gb/s and 270 Mb/s, Supports SDI signal input and output distances of up to 300m for SD signals, 200m for HD signals and 100m for 3G signals

Hersteller-Nr.	CSLUX-300I
Hersteller	Cypress Technology

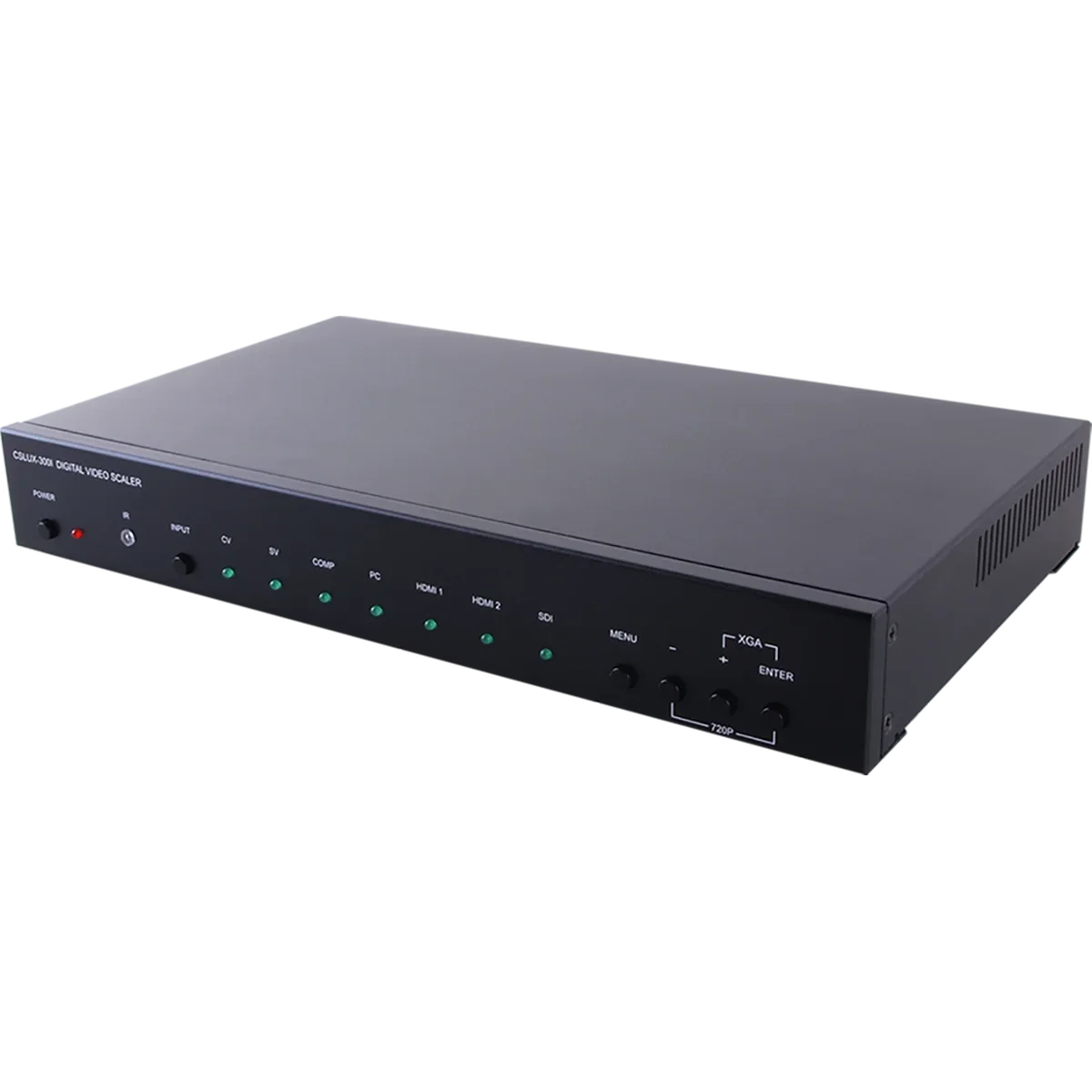

This Multi-Format to HDMI Scaler is an advanced HDMI, PC, SDI, Composite, S-Video and Component switcher/scaler. This device can scale and switch input sources and display them to its HDMI and VGA/HD outputs simultaneously, with their associated audio signals, at a wide range of output resolutions (up to 1080p or WUXGA(RB)). It also has the added benefit of an SDI Loop Out for monitoring or extending the SDI input signal. Control is via the IR remote, RS-232, or via front panel buttons and includes an on-screen menu providing settings and system information.

Video Bandwidth	340 MHz/10.2 Gbps

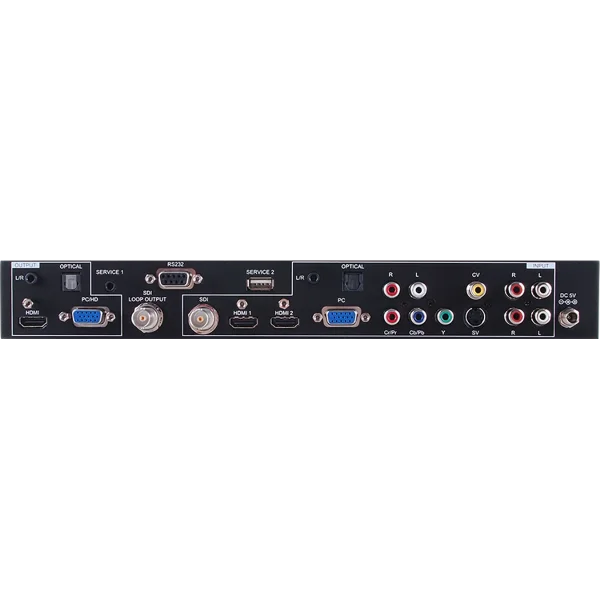

Input Ports	1×SDI, 2×HDMI, 1×VGA, 1×Component Video, 1×Composite Video, 1×S-Video, 1×TOSLINK (S/PDIF), 6×RCA (Analog Stereo), 1×3.5mm (Analog Stereo)
Output Ports	1× SDI (Loop-through), 1×HDMI, 1×VGA, 1×TOSLINK (S/PDIF), 1×3.5mm (Analog Stereo)
Control Port	1×RS-232
Service Ports	1×3.5mm, 1×USB
Power Supply	5V/3A DC (US/EU standards, CE/FCC/UL certified)
Dimensions	320mm (W)×182mm (D)×44mm (H)
Weight	1,600g
Chassis Material	Metal
Color	Black
Operating Temperature	0˚C - 40˚C/32˚F - 104˚F
Storage Temperature	−20˚C - 60˚C/−4˚F - 140˚F
Relative Humidity	20 - 90% RH (No-condensing)
Power Consumption	10.5W
