DRAGINO · Gateway · LoRa · Indoor IoT Gateway · LPS8v2-868 (ohne 4G)

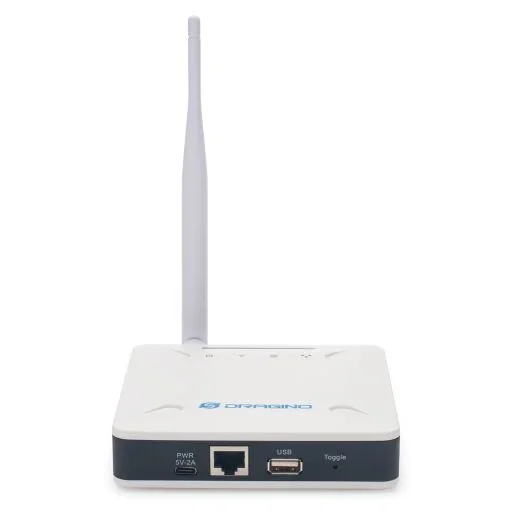

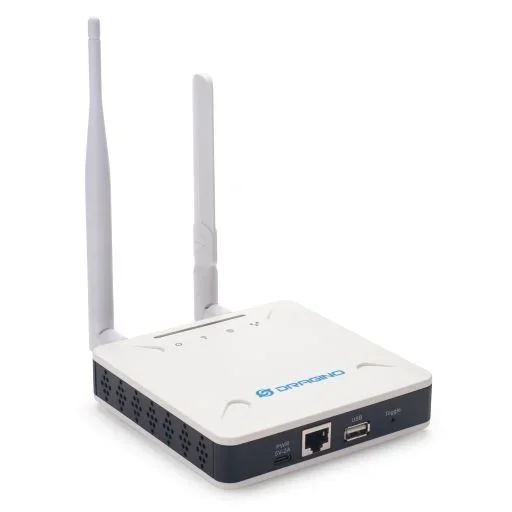

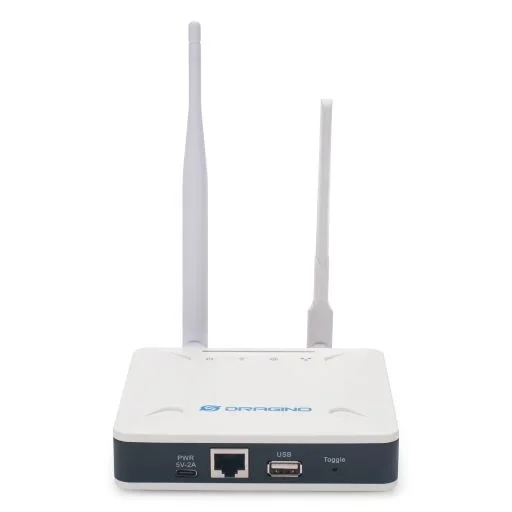

DRAGINO LPS8v2 Indoor IoT Gateway Overview The LPS8v2 is an open-source LoRaWAN Gateway. It lets you bridge LoRa wireless network to an IP network via WiFi , Ethernet or Cellular Network (via Optional 4G module). The LoRa wireless allows users to send data and reach extremely long ranges at low data rates. The LPS8v2 is fully compatible with LoRaWAN protocol. It supports different kinds of LoRaWAN Network Connections such as: Semtech UDP Packet Forwarder, LoRaWAN Basic Station, ChirpStack MQTT Bridge, and so on. This makes LPS8V2 work with most LoRaWAN platforms in the market. LPS8v2 also includes a built-in LoRaWAN Server and IoT server, which provide the possibility for the system integrator to deploy the IoT service without cloud service or 3rd servers. Different countries use different LoRaWAN frequency bands. LPS8v2 has these bands pre-configured. Users can also customize the frequency bands to use in their own LoRa network. LPS8v2 supports remote management. System Integrator can easy to remote monitor the gateway and maintain it. Features Open Source Debian system Managed by Web GUI, SSH via WAN or WiFi Remote Management Auto-provisioning for batch deployment and management LoRaWAN Gateway 10 programmable parallel demodulation paths Pre-configured to support different LoRaWAN regional settings. Allow customizing LoRaWAN regional parameters. Different kinds of LoRaWAN Connections such as: Semtech UDP Packet Forwarder LoRaWAN Basic Station ChirpStack-Gateway-Bridge (MQTT) Built-in The Things Network local LoRaWAN server. Built-in Node-Red local Application server . Usecases Smart Buildings & Home Automation Logistics and Supply Chain Management Smart Metering Smart Agriculture Smart Cities Smart Factory LoRa Spec 1 x SX1302 + 2 x 1250 LoRa Tranceiver General Specifikations CPU: Quad-core Cortex-A7 1.2Ghz RAM: 512MB eMMC: 4GB 10M/100M RJ45 Ports x 1 Multi-Channel LoRaWAN Wireless WiFi 802.11 b/g/n Work Temperature: -20 ~ 65°C Storage Temperature: -20 ~ 65°C Power Input: 5V, 2A, DC Package contents 1 x LPS8v2 Gateway 1 x LoRa Antenna 1 x USB Type C Charge Enviromental Package
