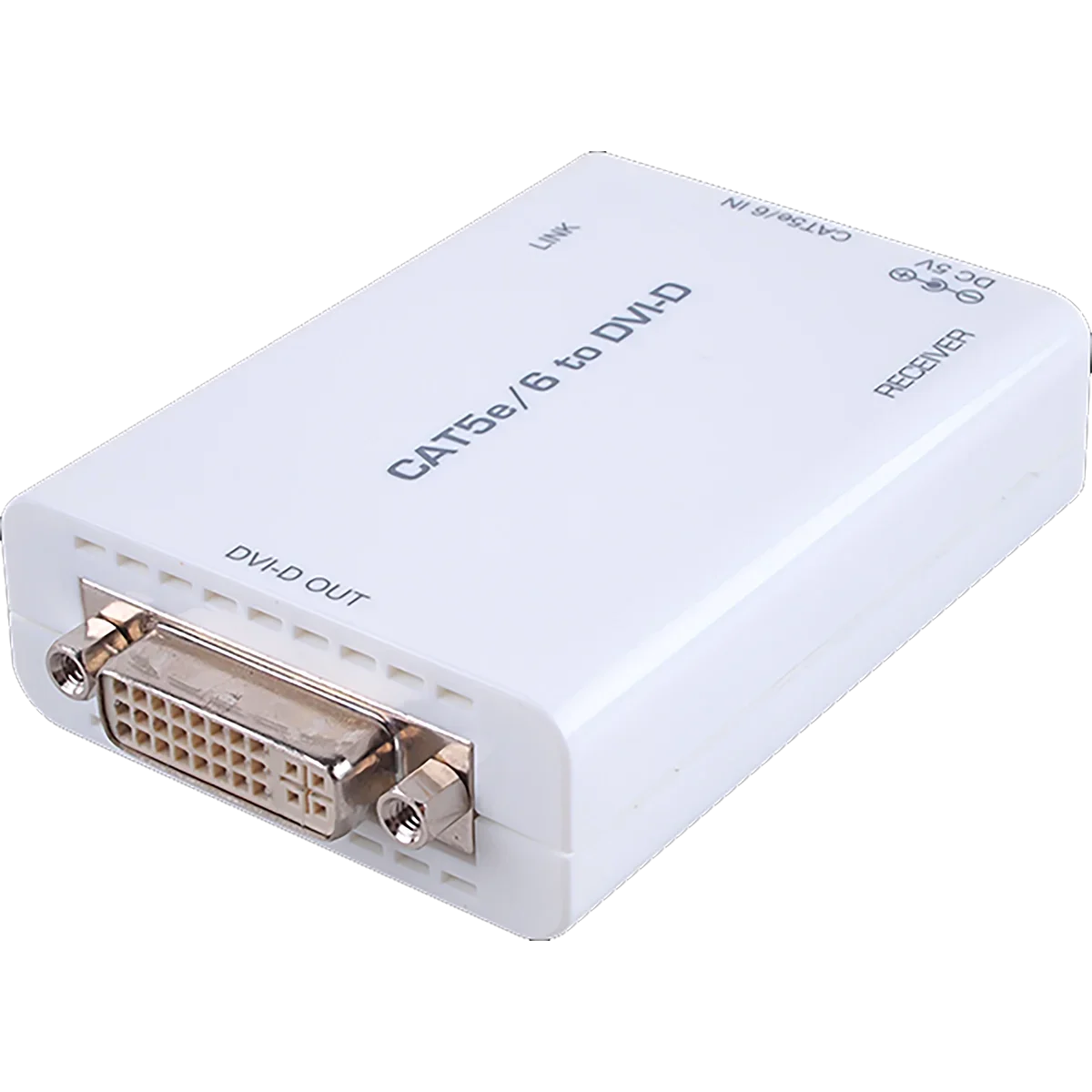

DVI over CAT5e/6 Receiver (1920 × 1080 (RB) up to 60M)
Klicken zum Vergrößern
Cypress Technology

DVI over CAT5e/6 Receiver (1920 × 1080 (RB) up to 60M)

Complies with the HDBaseT-Lite class, CAT5e/6/7HDMI (including HDCP with HDMI to DVI adaptor) over a single CAT5e/6/7 up to 60m, Full HD resolution support (1080p@60Hz/36-bit) and PC resolution support (VGA to WUXGA) over CAT5e/6 cable, Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream over HDMI

Hersteller-Nr.CDVI-513RXL
HerstellerCypress Technology

The DVI Extender over single CAT5e/6/7 allows for a more efficient system setup and is easy to install.

Uncompressed video and audio can be transmitted to distances of up to 60 meters at 1080p and 3D with High-Definition Audio up to 7.1CH (with HDMI to DVI adaptor).

Designed with HDBaseT technology for greater flexibility in custom installations with full DVI signal transfer over a single CAT5e/6/7 cable.

Interfaces
Input Port
  • 1×HDBaseT (RJ-45)
Output Port
  • DVI(DVI-I)
Video
HDMI Compliance
  • HDCP2.x
Input Signal Types
  • 1080p60 12-bit
Output Signal Type
  • 1080p60 12-bit
Resolutions
Maximum Input

 HDBaseT6

  • 1920×1080p@60
  • 1920×1200p@60RB
Maximum Output DVI
  • 1920×1080p@60
  • 1920×1200p@60RB
Power
Power Supply
  • 2×5 V/2.6 A DC (US/EU standards, CE/FCC/UL certified)
Power Consumption
  • 5.5 W
Enclosure
Chassis Material
  • Plastic
Chassis Color
  • White
Dimensions (W×H×D)
  • 55 mm × 22.5 mm × 82 mm
Weight
  • 64g
Ordering Information
Model No. Product Description
CDVI-513RXL
  • DVI over CAT5e/6/7 Receiver
CDVI-513TXL
  • DVI over CAT5e/6/7 Transmitter

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)
Auf Anfrage
zzgl. 10,00 € Versand • ab 500 € versandkostenfrei
Auf Bestellung
Lieferzeit: ca. 30 Tage
