EXSYS EX-41052-2 2S RS-232 PCI Karte
EX-41052-2 2S RS-232 PCI Karte MosChip Set
| EAN/GTIN | 4718359415258 |
| Hersteller-Nr. | EX-41052-2 |
| Hersteller | EXSYS |

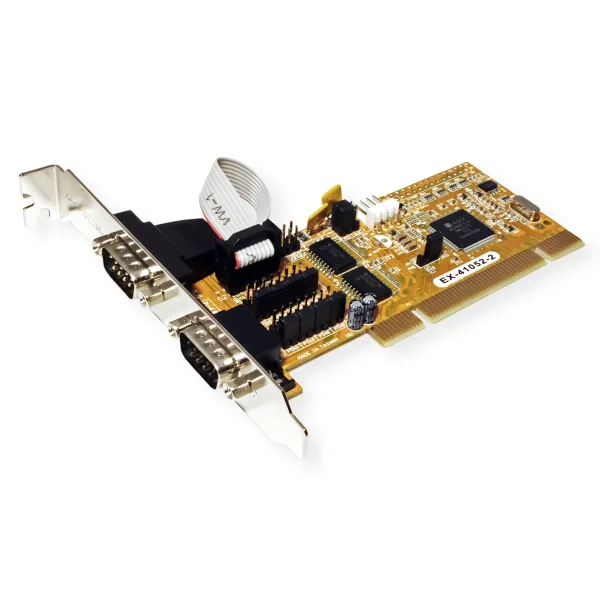

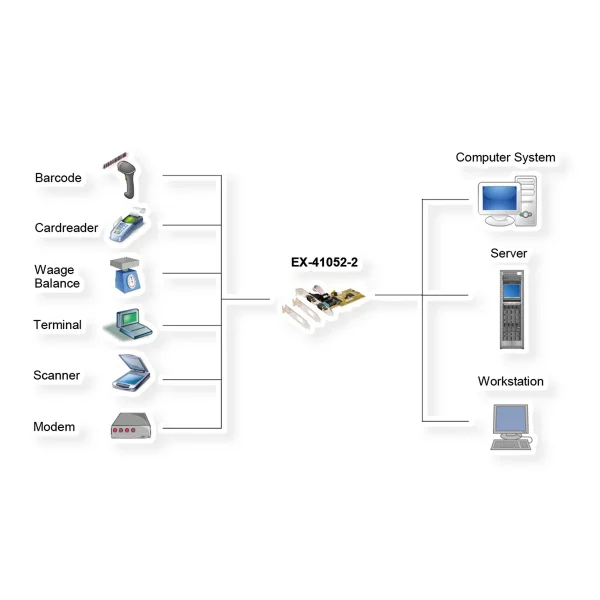

Die EX-41052-2 PCI I/O Karte stellt zwei serielle RS-232 High Performance UART 16C550 Ausgänge zur Verfügung. Sie ist entwickelt worden um zwei weitere Serielle Ausgänge für PC, kleine Workstation oder Server über den PCI– oder PCI-X Bus zu erweitern.

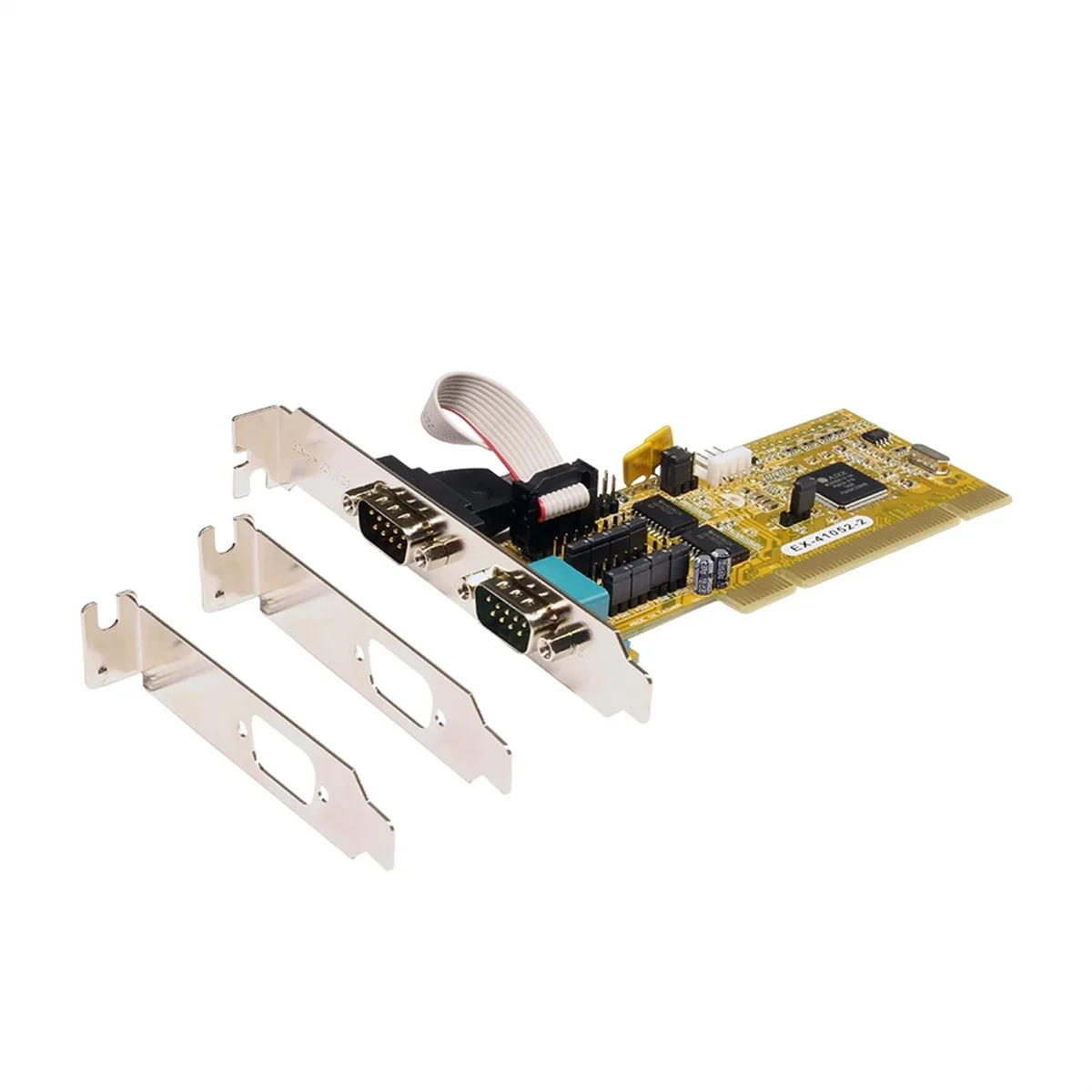

+5V und +12V sind auf Pin 9 der seriellen Steckers konfigurierbar POS System (Power over System). Mit der EX-41052-2 werden zwei Low Profile Bügel für schmale Computer Gehäuse bis 8cm Bauhöhe mitgeliefert.
- Schnittstelle: RS232 V.24
- FIFO Buffer: 16C550 mit 256Byte
- ±15kV IEC1000-4-2 ESD Schutz für RS232 I/O's
- I/O Adressen und Interrupt wird vom System BIOS vergeben
- Daten Bits: 5, 6, 7, 8 / Stop Bits: 1, 1.5, 2
- Parity: none, even, odd, space, mark
- Signale: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- +5V oder +12V auf Pin 9 von beiden Seriellen Stecker einstellbar
- Unterstützt Motherboard mit 5V und 3.3V
- Chip-Set: MosChip MCS9865IV-AA
Spezifikationen
| Hersteller | EXSYS |
|---|---|
| Produktgruppe | Schnittstellenkarten |
| Produkttyp | PCI-Adapterkarte |
| Lieferumfang | EX-41052-2, 2 x Low Profile Bügel, Treiber CD, Handbuch |
| Bus-System | PCI |
| Schnittstellen | 2x seriell RS-232 |
| RS-232 Schnittstelle | ja |
| Datentransfer-Rate | 300Baud bis 115.2KBaud |
| Chipsatz | MosChip Chip-Set |
| Betriebssysteme | DOS, Win9.x/ME/2000/XP/Vista/7/8.x/10 (32&64)Server 200x & 2012 R2, Linux |
| Anschlüsse | 2 x 9 Pin D-SUB Seriell Stecker, 1 x 4 Pin Stecker für den Anschluss des PC Netzteils |
| Bauhöhe | Low Profile |
| Installationsanleitung / Handbuch | ja |
| Gewicht | 180 g |
| Verpackungshöhe | 40 mm |
| Verpackungsbreite | 150 mm |
| Verpackungstiefe | 230 mm |
| Paketgewicht | 0.156 kg |
Keine Maßangaben verfügbar.
