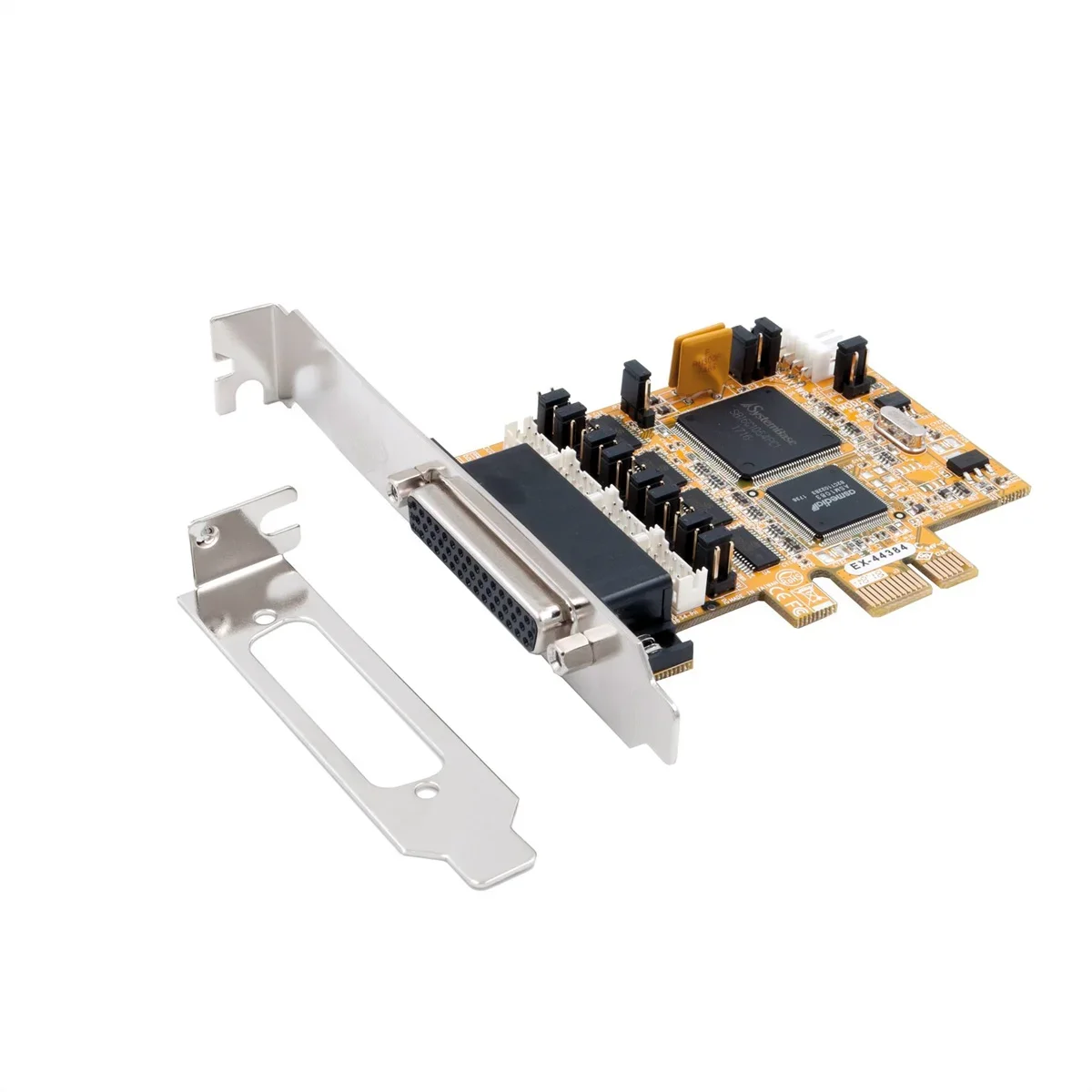

EXSYS EX-44384 PCI Express x1 Karte 4x seriell RS-232 (Kabel mit 4x 9pin Stecker)
EX-44384 PCIe x1 - 4x seriell RS-232 inkl. LowProfile Bügel
| EAN/GTIN | 4718359443848 |
| Hersteller-Nr. | EX-44384 |
| Hersteller | EXSYS |
Die EX-44384 PCI-Express I/O-Karte stellt vier serielle RS-232 High Performance UART 16C1050 Ausgänge zur Verfügung. Sie ist entwickelt worden um vier weitere serielle Ports für PC, kleine Workstation oder Server über den PCI Express Bus zu erweitern.
Die Karte ist voll PCI-Express Plug-and-Play kompatibel und hat keine Probleme mit IRQ und I/O Adressen Konflikten. Zusätzlich ist +5V oder +12V auf Pin 9 des seriellen Steckers konfigurierbar für ein POS System (Power over System). Mit der EX-44384 wird ein Low Profile Bügel mitgeliefert damit die Karte auch in schmales PC Gehäuse eingebaut werden kann.- 4x seriell RS-232 (über Kabel mit 4x 9pin Stecker)
- 1 x 4 Pin Stecker für den Anschluss vom PC Netzteil
- PCI Express x1, unterstützt auch PCI Express Slot x2, x4, x8, x16
- Betriebssystem: MS Windows 2000 / XP(32&64) / Vista(32&64) / Win7 / 8 / 10 (32&64) / CE(4.2&5.0) / Server(200x-2012R), Linux(2.4. oder höher)
Spezifikationen
| Hersteller | EXSYS |
|---|---|
| Produktgruppe | Schnittstellenkarten |
| Produkttyp | PCI-Express-Adapterkarte |

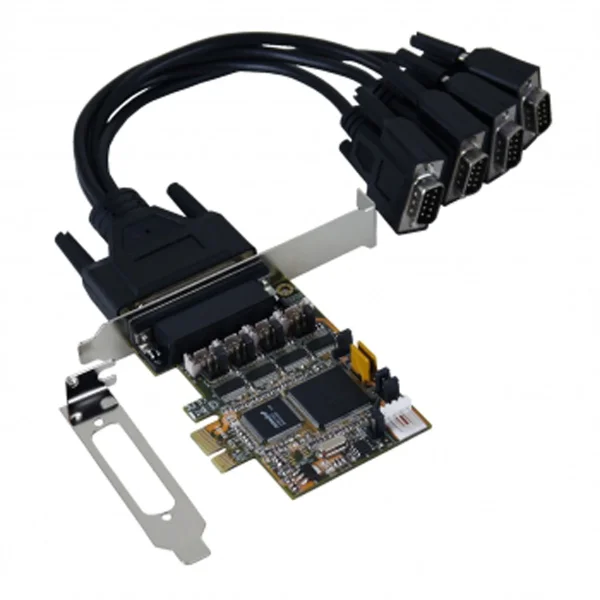

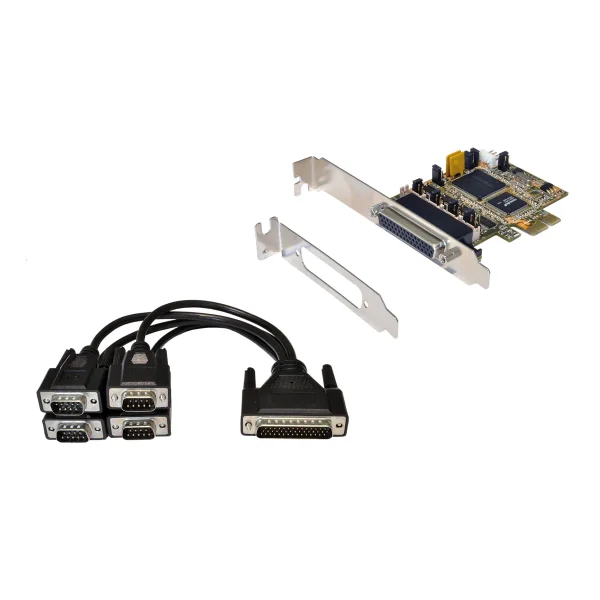

| Lieferumfang | EX-44384, 1x Oktopus Kabel mit 4x 9 Pin Stecker, 1x LowProfile Bügel, Treiber CD, Handbuch |
| Bus-System | PCI Express |
| Schnittstellen | 4x seriell RS-232 |
| RS-232 Schnittstelle | ja |
| Betriebssysteme | Win98, ME, 2000/XP/Vista/7/8.x/10 (32&64) Sever 200x & 2012R2, SCO-Unix, Linux 2.4 oder höher |
| Bauhöhe | Full Profile |
| Installationsanleitung / Handbuch | ja |
| Technische Besonderheiten | Windows WHQL zertifiziert, LowProfile Bügel wird mitgeliefert für schmale Gehäuse bis max. 8cm, Octopus Kabel mit 8x 9 Pin |
| Gewicht | 800 g |
| Verpackungshöhe | 70 mm |
| Verpackungsbreite | 180 mm |
| Verpackungstiefe | 260 mm |
| Paketgewicht | 0.43 kg |
Keine Maßangaben verfügbar.
