GIGA H610M H V3 DDR4 S1700/DDR4/µATX
| EAN/GTIN | 4719331859718 |
| Hersteller-Nr. | H610M H V3 DDR4 |
| Hersteller | Gigabyte |
Prozessor
| Prozessorhersteller | Intel |
| Prozessorsockel | LGA 1700 |
| Kompatible Prozessoren | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Unterstützte Prozessorsteckplätze | LGA 1700 |
Speicher
| Unterstützte Arbeitsspeicher | DDR4-SDRAM |
| Anzahl der Speichersteckplätze | 2 |
| Arbeitsspeicher Typ | DIMM |
| Speicherkanäle | Zweikanalig |
| ECC-Kompatibilität | ECC & Nicht-ECC |
| Unterstützte Arbeitsspeichergeschwindigkeit | 3200, 3000, 2933, 2666, 2400, 2133 MHz |
| Unterstützte Speichertaktrate (max.) | 3200 MHz |
| RAM-Speicher maximal | 64 GB |
| Unterstützte Speichermodulkapazitäten | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB |
| Unbuffered Speicher | Ja |
Speicher-Controller
| Unterstützte Speicherlaufwerke | HDD & SSD |
| Unterstützte Speicherlaufwerk-Schnittstellen | M.2, SATA III |
| Maximale unterstützte Anzahl der HDD | 1 |
| Anzahl der unterstützten Speicherlaufwerke | 5 |
Grafik
| Parallele Verarbeitungstechnologie | Nicht unterstützt |
| Grafikkarte-Familie | Intel |
| Grafikkarte | HD Graphics |
| Maximale Auflösung | 4096 x 2304 Pixel |
| HDCP | Ja |
Interne E/A-Anschlüsse
| Anzahl USB 2.0 Schnittstellen | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse | 1 |
| SATA III Anschlüsse | 4 |
| Front Panel Audiostecker | Ja |
| Frontpanel-Stecker | Ja |
| ATX Stromstecker (24-pol.) | Ja |
| CPU Ventilatorstecker | Ja |
| EPS Stromstecker (8-pin) | Ja |
| TPM-Anschluss | Ja |
| Serielle Port-Headers | 1 |
| 12-V-Stromanschluss | Ja |
| RGB-LED-Stiftleiste | Ja |

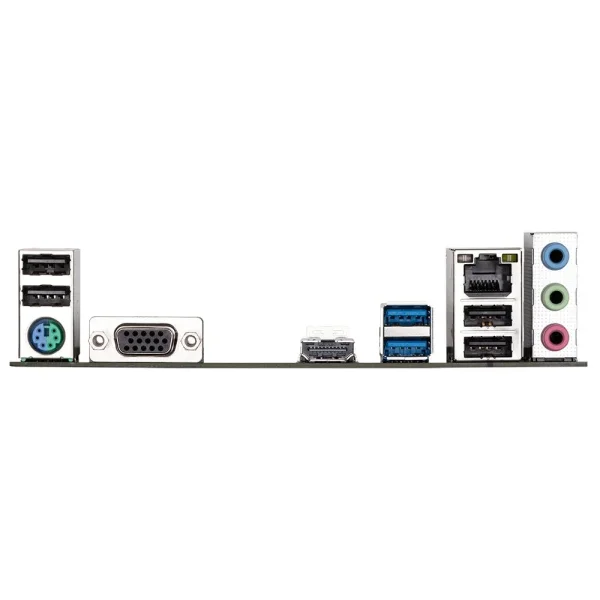

E/A-Anschlüsse auf der Rückseite
| Anzahl USB 2.0 Anschlüsse | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 2 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Anzahl PS/2 Anschlüsse | 1 |
| Anzahl VGA (D-Sub) Anschlüsse | 1 |
| Anzahl HDMI-Anschlüsse | 1 |
| Anzahl DVI-D-Anschlüsse | 1 |
| Anzahl DisplayPort Anschlüsse | 2 |
| Kopfhörerausgänge | 3 |
| Mikrofon-Eingang | Ja |
| USB-Stecker | USB Typ-A |
Netzwerk
| Ethernet/LAN | Ja |
| Ethernet Schnittstellen Typ | Gigabit Ethernet |
| WLAN | Nein |
Merkmale
| Motherboard Chipsatz | Intel H610 Express |
| Audio-Chip | Realtek ALC897 |
| Audio Kanäle | 7.1 Kanäle |
| Produktfarbe | Schwarz |
| PC Gesundheitsüberwachung | Ventilator, Temperatur, Spannung, Water cooling |
| Komponente für | PC |
| Motherboardformfaktor | micro ATX |
| Motherboard Chipsatz Familie | Intel |
| Kühlung | Aktiv |
| Energiequelle | ATX |
| Unterstützt Windows-Betriebssysteme | Windows 10 x64, Windows 11 x64 |
Erweiterungssteckplätze
| PCI-Express x1-Slots | 1 |
| PCI-Express x16-Slots | 1 |
| Anzahl der M.2 (M)-Steckplätze | 1 |
BIOS
| BIOS-Typ | UEFI AMI |
| BIOS-Speichergröße | 128 Mbit |
| ACPI-Version | 5.0 |
| Clear CMOS-Jumper | Ja |
| Clear-CMOS-Taste | Ja |
| Desktop Management Interface (DMI) Version | 2.7 |
| Systemverwaltung BIOS (SMBIOS) Version | 2.7 |
Akku/Batterie
| Batteriegewicht | 3 g |
| Lithiumgewicht pro Akku | 0,07 g |
| Anzahl Batteriezellen | 1 |
| Akku-/Batterietechnologie | Lithium-Manganese Dioxide (LiMnO2) |
| Akku-/Batterietyp | CR2032 |
Gewicht und Abmessungen
| Breite | 230 mm |
| Tiefe | 215 mm |
| Höhe | 35 mm |
Lieferumfang
| Mitgelieferte Kabel | SATA |
| Akkus/Batterien enthalten | Ja |
| Mitgelieferte Software | Norton Internet Security (OEM version) LAN bandwidth management software |
Technische Details
| Garantiezeit | 3 Jahr(e) |
Specs: Icecat.biz
Keine Maßangaben verfügbar.
