HDMI 4 to 1 Switcher
Klicken zum Vergrößern
Cypress Technology

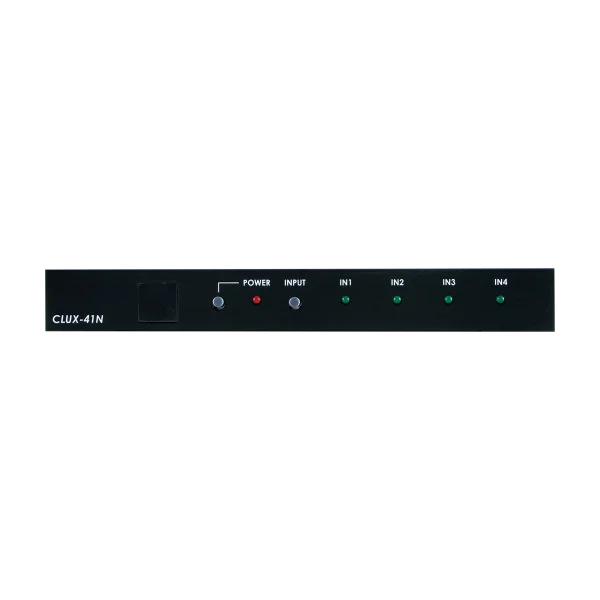

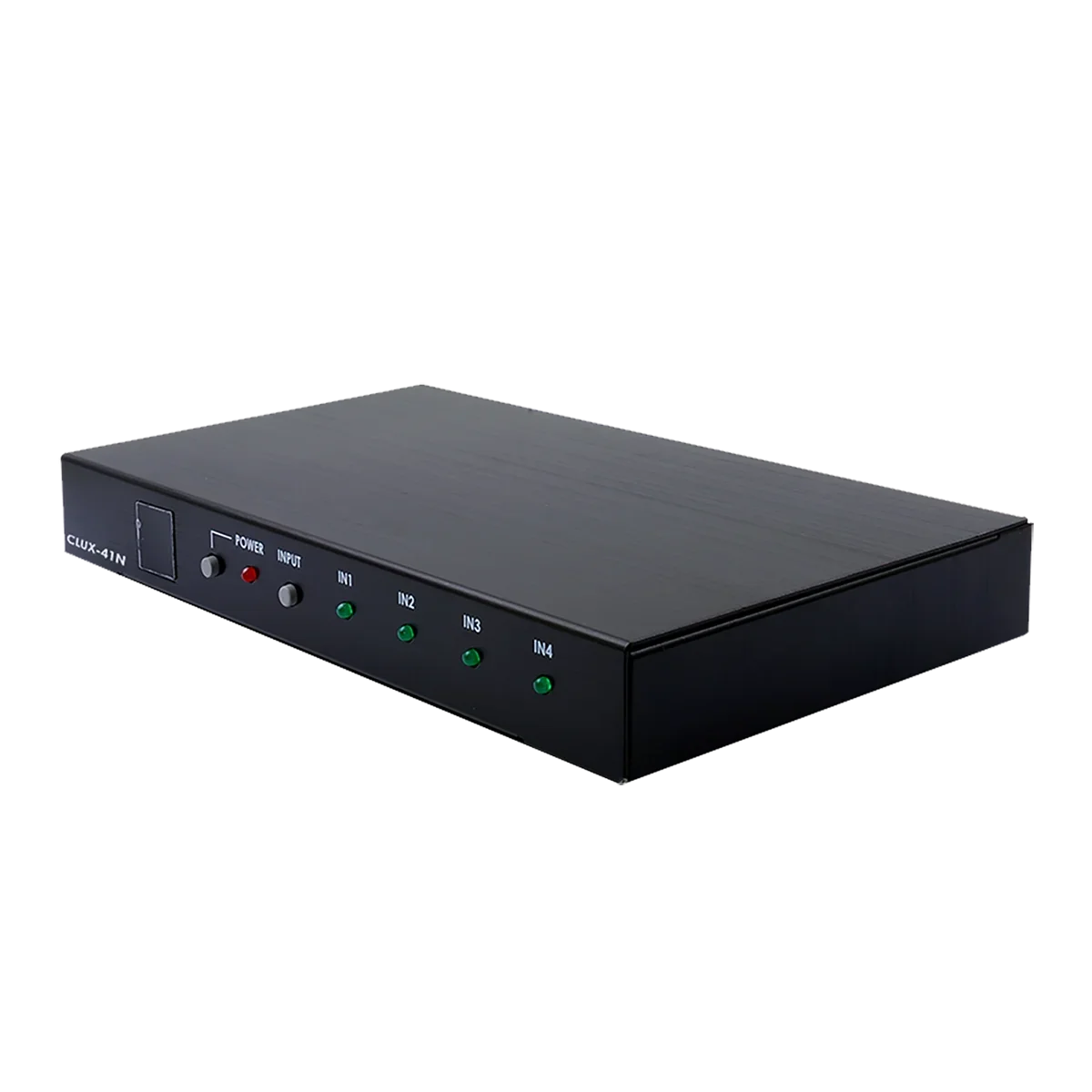

HDMI 4 to 1 Switcher

Supports 24/30/36-bit color depth display , Supports Bitstream , Auto Signal Enhancement that improves signal quality for long distance transmission , Auto input detection with LED indicators, EDID bypass , Supports HDMI 3D signals, Supports up to 1920 x 1200p(RB)@60Hz , Control via front panel buttons and IR remote contro

Hersteller-Nr.CLUX-41N
HerstellerCypress Technology

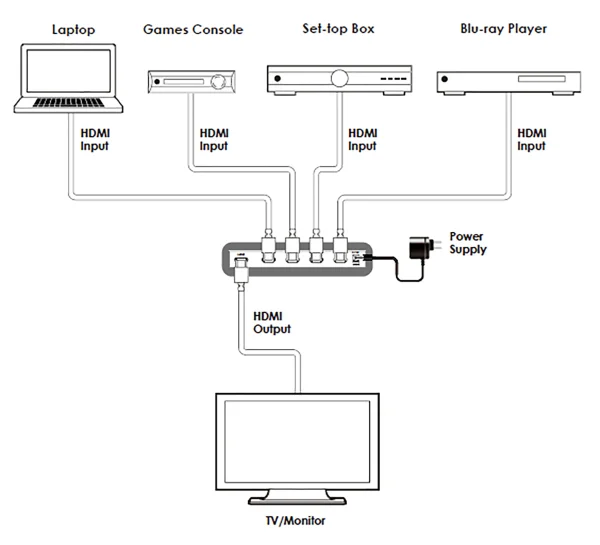

The HDMI 4 to 1 Switcher allows 4 HDMI sources to be connected to the same HDMI TV/Monitor input. It has IR, automatic and manual input selection and a ‘last memory’ function that remembers the last input selection used. The EDID bypass function ensures the best resolution. The switcher is also DVI compatible with the use of DVI to HDMI adaptor.

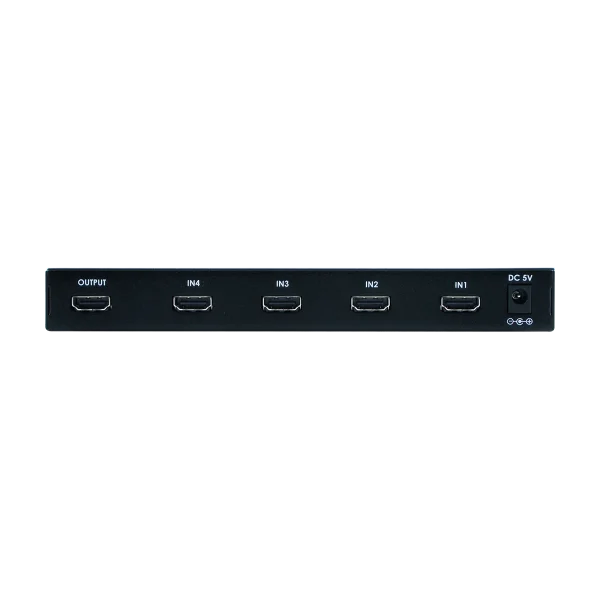

Interfaces
Input Port
  • 4HDMI (Type-A)
Output Port
  • 1HDMI (Type-A)
Video
HDMI Compliance
  • HDMI 1.4 (DVI 1.0)
HDCP Compliance
  • 1.4
Input Signal Types
  • 1080p60 12-bit
Output Signal Type
  • 1080p60 12-bit
Resolutions
Maximum Input HDMI
  • 1920×1200p@60RB
Maximum Output HDMI
  • 1920×1200p@60RB
Power
Power Supply
  • 5 V/2.6 A DC
Power Consumption
  • 5.7 W
Enclosure
Chassis Material
  • Aluminum
Chassis Color
  • Black
Dimensions (W×H×D)
  • 200 mm × 25 mm × 104 mm
Weight
  • 268g
Field Firmware Update
Interface
  • PCB on board, uses RS232
Ordering Information
Model No. Product Description
CLUX-41N
  • HDMI 4 to 1 Switcher

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)
Auf Anfrage
zzgl. 10,00 € Versand • ab 500 € versandkostenfrei
Auf Bestellung
Lieferzeit: ca. 30 Tage
