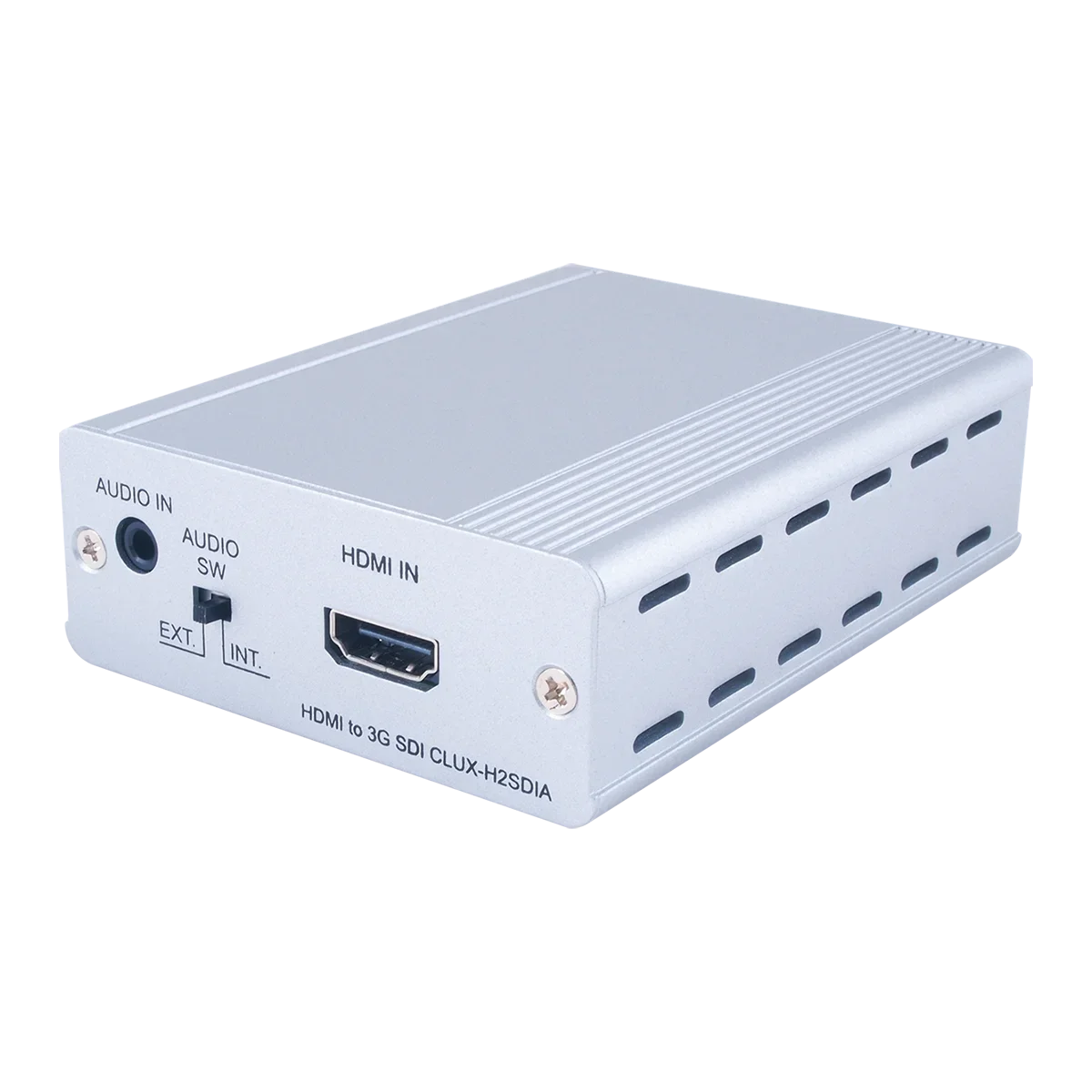

HDMI to 3G SDI Converter

Shows HDMI source on SDI display, Supports SDI bitrates of 2.970Gbit/s & 2.970/1.001Gbit/s, 1.485Gbit/s & 1.485/1.001Gbit/s, and 270Mbit/s, Converts HDMI format to SDI: 480i/576i to SD-SDI (SMPTE 259M-C@270Mbit/s), 720p/1080i to HD-SDI (SMPTE 292M@1.485Gbit/s & 1.485/1.001Gbit/s), 1080p to 3G-SDI (SMPTE 424M/425M-A@2.970Gbit/s & 2.970/1.001Gbit/s), Supports HDMI input timings of 480i@59.94Hz, 576i, 720p@50/59.94/60Hz, 1080i@50/59.94/60Hz, 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)

Hersteller-Nr.	CLUX-H2SDIA
Hersteller	Cypress Technology

This unit allows HDMI signals to be shown on SDI display while ensuring high bit rates of 2.970 Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high def HDMI signal with audio to SDI for long distance transmission and display your work on SDI display. In addition, the external audio input allows the user to insert the sound from a different audio source instead of the HDMI embedded audio, and send to the SDI output.

Video Bandwidth	225 MHz/6.75Gbps

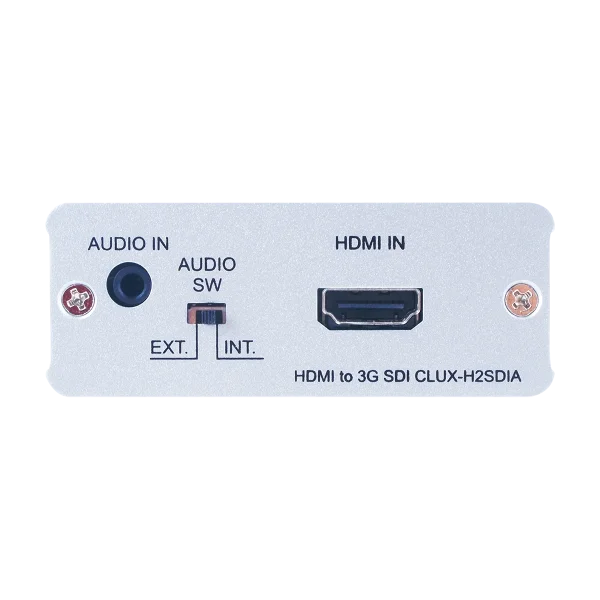

Input	1×HDMI, 1×3.5 mm Phone Jack

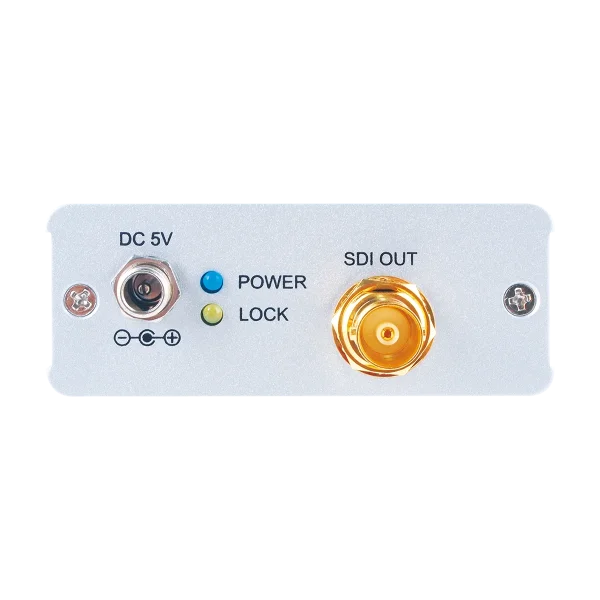

Output	1×BNC (SD/HD/3G-SDI)
	480i@59.94, 576i, 720p@50/59.94/60
HDMI Timing Support	1080i@50/59.94/60 1080p@23.98/24/25/29.97/30/50/59.94/60
	SD-SDI: SMPTE 259M-C, 270 Mbit/s
SDI Timing Support	HD-SDI: SMPTE 292M, 1.485 & 1.485/1.001 Gbit/s
	3G-SDI: SMPTE 424M/425M-AB, 2.970 & 2.970/1.001 Gbit/s
Audio Input Support	Internal: PCM 2/5.1/7.1 CH External: Analog L/R
ESD Protection	Human body model:	±8 kV (Air-gap discharge) ±4 kV (Contact discharge)
Power Supply	5V/2.6 A DC (US/EU standards, CE/FCC/UL certified)
SDI Cable Distance	3G/HD/SD-SDI up to 100/200/300 meters with BELDEN 1694A cable
Dimensions (mm)	78.5 mm (W)×124 mm (D)×30 mm (H)
Weight(g)	198 g
Chassis Material	Aluminum
Silkscreen Color	Silver
Operating Temperature	0 ºC~40 ºC/32 ºF~104 ºF
Storage Temperature	−20ºC~60ºC/−4 ºF~140 ºF
Relative Humidity	20~90 % RH (non-condensing)
Power Consumption	5 W
