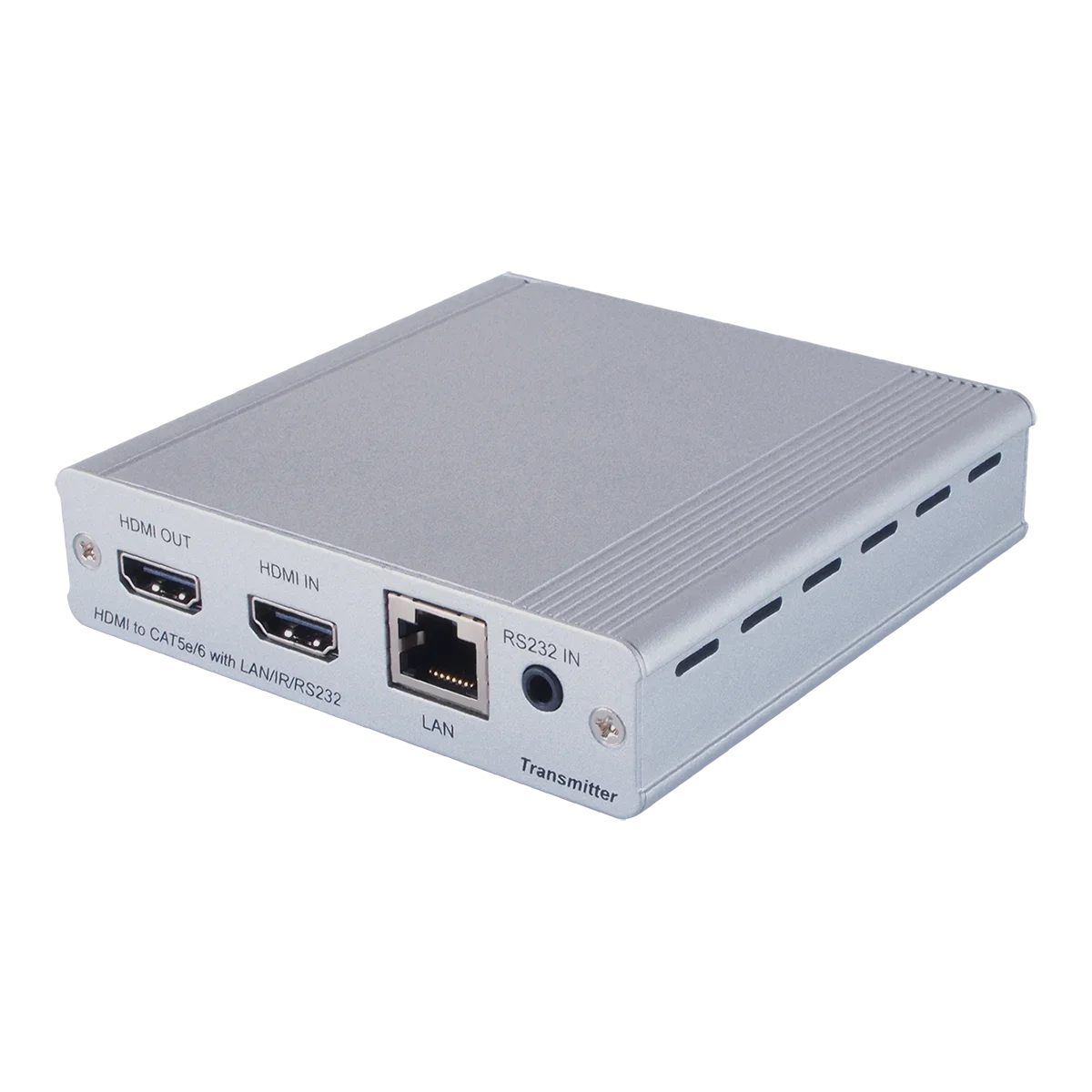

HDMI to CAT5e/6 with LAN/IR/RS232
Klicken zum Vergrößern
Cypress Technology

HDMI to CAT5e/6 with LAN/IR/RS232

Simultaneous HDMI and CAT5e/6/7 outputs ,  Supports data rate from 250Mbps up to 3Gbps, Supports up to 4096x2160@60Hz YUV 4:2:0 , Supports LPCM 7.1CH, Bitstream, HD Bitstream transmission (32-192kHz sample rate) , Supports distances up to 100 meters through CAT5e/6/7 cables , Supports Ethernet network rate up to 100Mbps , Can select Standard or TV EDID , Provides 24V DC power to or received from compatible PoE Receiver through CAT5e/6/7, Supports control of devices via RS-232 and 2-way IR , The 3D signal display follow by display TV’s EDID, Supports Bidirectional IR PoC

Hersteller-Nr.CHDBT-1H1CE
HerstellerCypress Technology

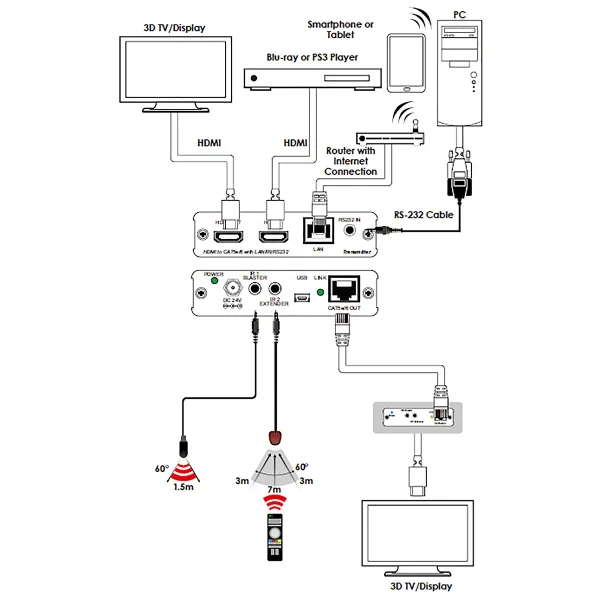

The HDMI over HDMI and CAT5e/6/7 Transmitter can convert a single HDMI input, 2-way IR and RS-232 control and LAN serving to a single CAT5e/6/7 output and includes a simultaneous HDMI bypass output. It supports resolutions up to 1080p Full HD, 4K×2K timing, 3D and multi-channel digital audio formats (such as LPCM 7.1CH, Bitstream, HD Bitstream). The HDMI bypass output can be connected to an HDMI display or cascaded to another splitter. The CAT5e/6/7 output can be connected to a CAT5e/6/7 to HDMI Receiver to extend the operating distance up to 100 meters. Additionally, the LAN connectivity will allow a 100BaseT network to be served to smart TVs or games consoles. The Bidirectional Power over Cable (PoC) function provides greater flexibility in installations.

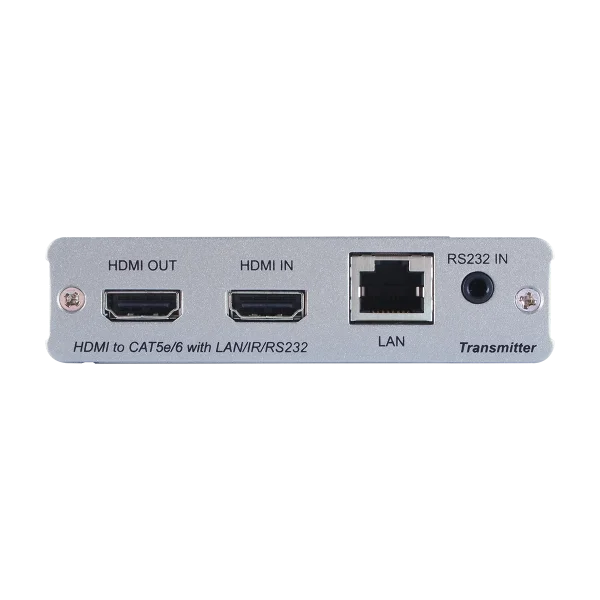

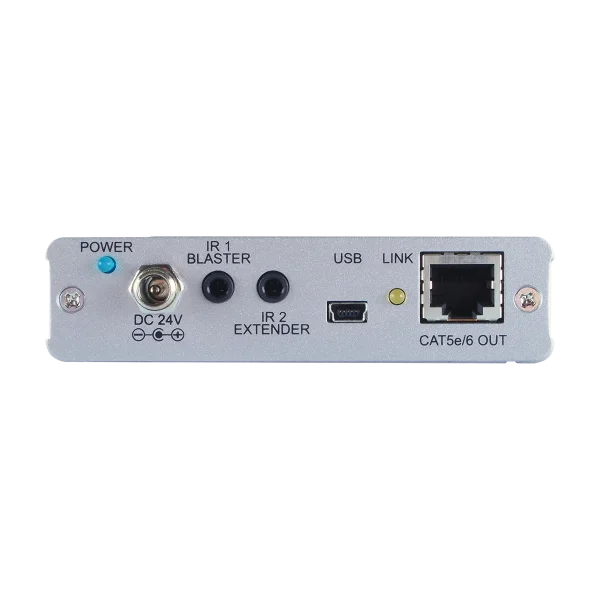

Interfaces
Input Port
  • 1 HDMI (Type-A)
Output Port
  • 1 HDMI (Type-A)
  • 1 HDBaseT (RJ-45)
Pass-through Port
  • 1 RS-232 (3.5mm)
  • 1 IR IN (3.5mm)
  • 1 IR OUT (3.5mm)
  • 1 LAN(RJ-45)
Service Port
  • 1 USB(Mini-B)
Video
HDMI Compliance
  • HDMI 2.0 (DVI 1.0)
HDCP Compliance
  • 2.X
Input Signal Types
  • 4096x2160@60Hz YUV 4:2:0 8bit
Output Signal Type
  • 4K@60 4:2:0
Resolutions
Maximum Input HDMI
  • 4096×2160p@60 4:2:0
Maximum Output HDMI
  • 4096×2160p@60 4:2:0
  HDBaseT
  • 4096×2160p@60 4:2:0
Audio
  HDMI
  • LPCM(8CH), Bitstream, HD Bitstream
  HDBase T
  • LPCM(8CH), Bitstream, HD Bitstream
Power
Power Supply
  • 24V / 1.25A DC
Power Consumption
  • 6.3W
Enclosure
Chassis Material
  • Metal
Chassis Color
  • Gray
Dimensions (W×H×D)
  • 102 mm x 25 mm x 102 mm [Case Only]
  • 102 mm x 25 mm x 110 mm [All Inclusive]
Weight
  • 252g
Field Firmware Update
Interface
  • PC

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)
Auf Anfrage
zzgl. 10,00 € Versand • ab 500 € versandkostenfrei
Auf Bestellung
Lieferzeit: ca. 30 Tage
