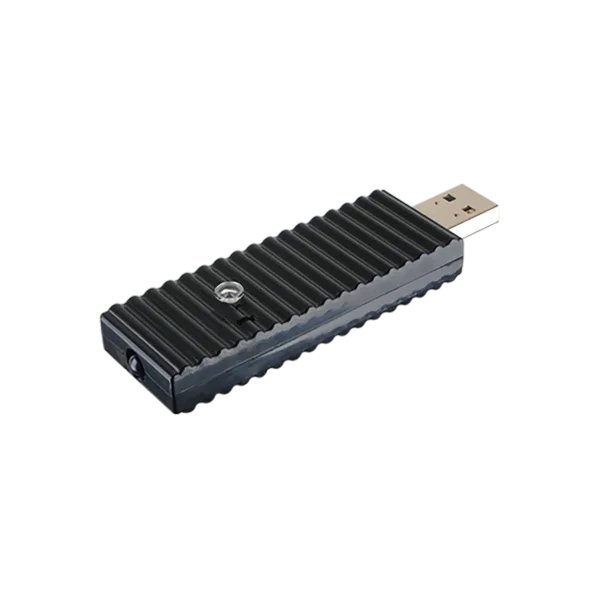

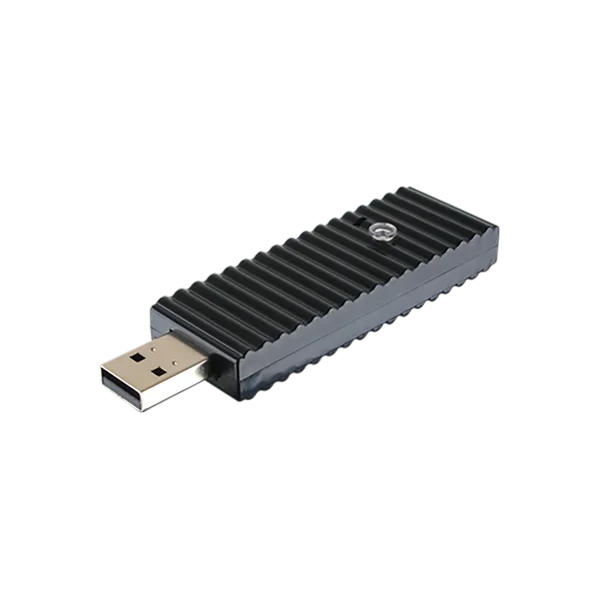

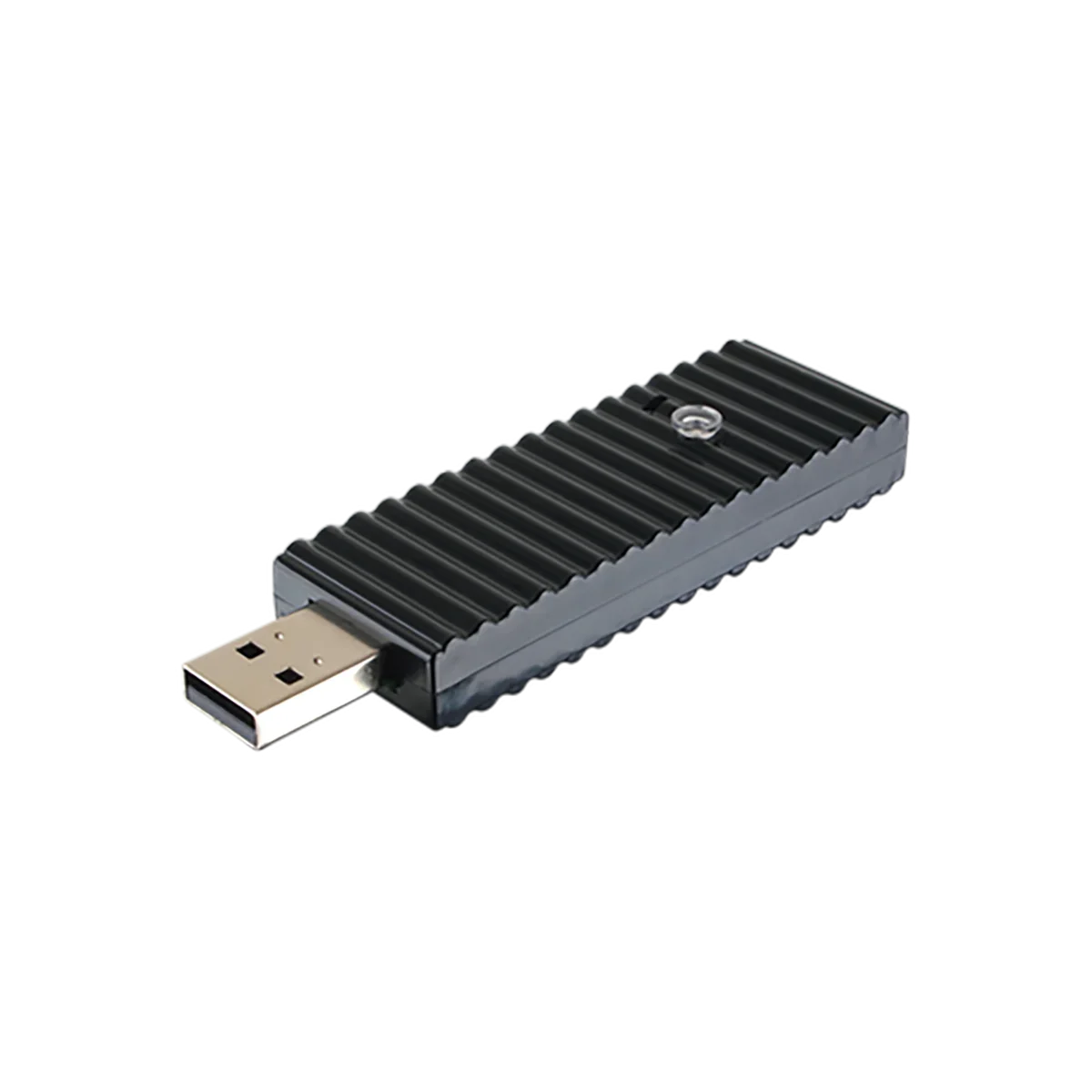

Infrared Learner

Receives and transmit an IR command to confirm successful learning , Converts an IR signal into digital data for control system usage , Compatible with a wide range of IR format and IR frequencies , Compact USB dongle design , Simple software installation

Hersteller-Nr.	CDPS-IRL
Hersteller	Cypress Technology

The Infrared Learner is a versatile tool for all your control system design needs. This compact yet functional unit can convert your analog IR commands into digital data and store it for many uses. With the simple software tool the user can store the commands from multiple IR remote controls in a single convenient location such as a laptop for later recall as required. The unit not only learns the IR command but it can also test that the learning was successful by re-transmitting the command to prove that it has been learned correctly. It is compatible with a wide range of IR frequencies and source devices.

Input Port	1 x IR
Output port	1 x IR 1 x USB
IR Frequency	20~60kHz

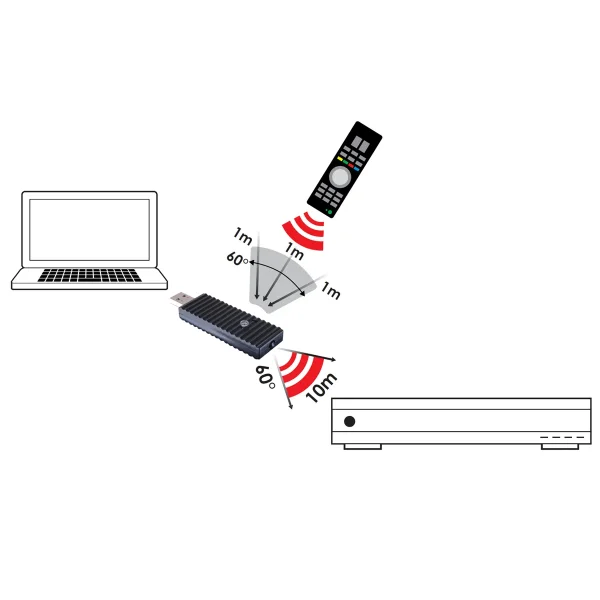

IR Input Signal Distance	Up to 1M
IR Blaster Out Distance	Up to 10M
ESD Protection	Human Body model: ± 8kV (air-gap discharge) ± 4kV (contact discharge)
Dimensions	70.5mm (W) x 25mm (D) x 11mm (H)/Jacks Excluded 85.5mm (W) x 25mm (D) x 12mm (H)/Jacks Included
Weight	14g
Chassis Material	Plastic
Silkscreen Color	Black
Operating Temperature	0˚C~40˚C / 32˚F ~ 104˚F
Storage temperature	-20˚C~60˚C / -4˚F ~ 140˚F
Relative Humidity	20~90% RH (no condensation)

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
