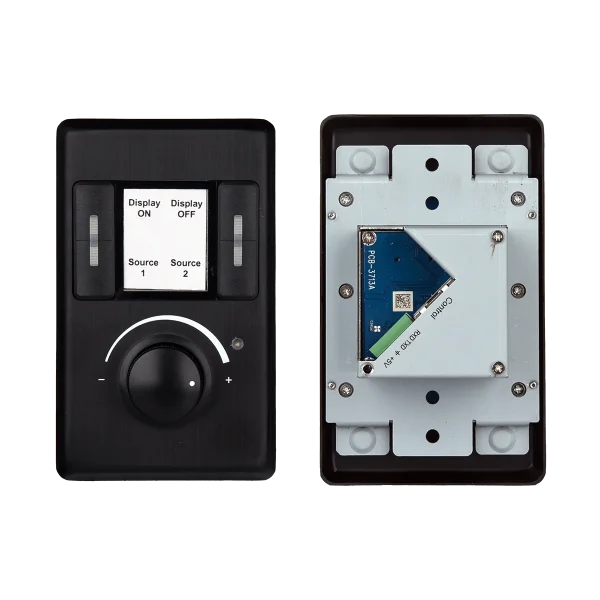

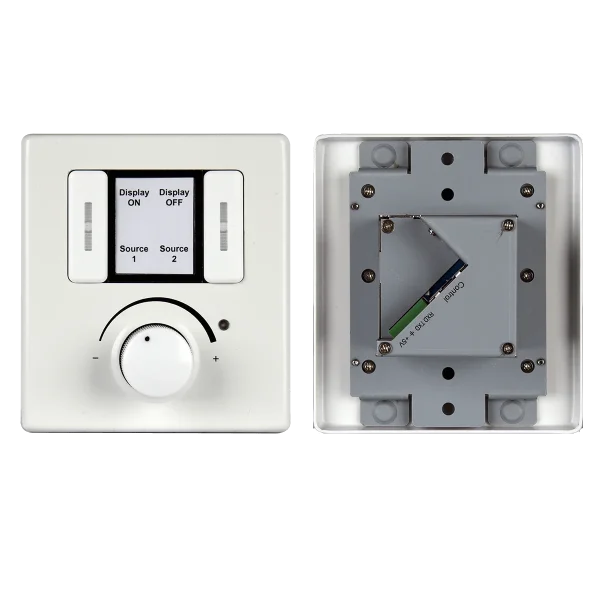

IP Keypad with Rotary Encoder

Klicken zum Vergrößern

Cypress Technology

IP Keypad with Rotary Encoder

1-Gang (US or EU/UK) wall plate design with customizable tri-color LED buttons, Can be powered by an Ethernet switch that supports the IEEE 802.3af PoE standard (Optional), Supports up to two years of backup power for the internal clock and schedule function to protect against blackouts and temporary power loss, Controllable via keypad, RS-232, Telnet and WebGUI, 7 macros for controlling user equipment, Up to 128 total commands can be stored and used across all macros in the system, Supports customizable daylight savings time configuration, Supports condition checking within macro commands for expanded macro design flexibility, Supports time and date macro scheduling (single and recurring), Firmware update via micro USB and WebGUI

Hersteller-Nr.	CDPW-K3RTSeries
Hersteller	Cypress Technology

This keypad is a versatile and useful product for both system integrators and smart home users. It can send commands to any Ethernet-controlled device in your system. Equipped with 4 physical macro buttons and a rotary knob for 3 additional macro controls, users can recall up to 7 distinct macros. Additionally, it can store up to 128 commands and can be used for projector control in a meeting rooms or for environmental control over audio and video.

Primary control is via a comprehensive WebGUI interface, complemented by Telnet commands. The built-in clock and calendar-based scheduling feature enables triggering macros to control devices at specific times or on a recurring schedule, enhancing automation within your installation.

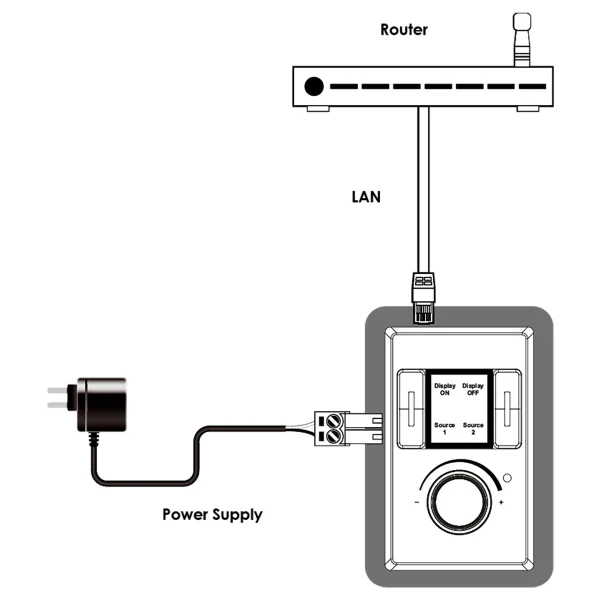

The buttons feature vibrant RGB LED lighting, making them suitable for any environment. With PoE (Power over Ethernet) support, users can place the keypad creatively without needing proximity to a live power source. Functions can be customized to suit individual needs, such as configuring the rotary knob to adjust volume levels or control lighting brightness, providing enhanced flexibility and usability.

Interfaces

Control Interface

4×LED Buttons

1×Rotary Knob

Control Ports

1×IP Control (RJ-45)

1×RS-232 (4-pin Terminal Block)

Service Port

1×USB 2.0 (Micro USB)

Power

Power Supply

5V/2.6A DC (Optional)

(US/EU standards, CE/FCC/UL certified)

or PoE (802.3af)

Power Consumption

1 W (Adapter)

1.9 W (PoE)

Enclosure
Chassis Material	Metal (Alumimum) & Plastic
Chassis Color	Black/White
Dimensions (W×H×D)	US 69.8mm×114.3mm×32.4mm [Case Only] 69.8mm×114.3mm×38.9mm [All Inclusive] EUK 90mm×100mm×38.9mm [Case Only] 90mm×100mm×40.15mm [All Inclusive]
Weight	145g

Field Firmware Update
USB Flash Drive, WebGUI

ORDERING INFORMATION

Model No.	Product Description

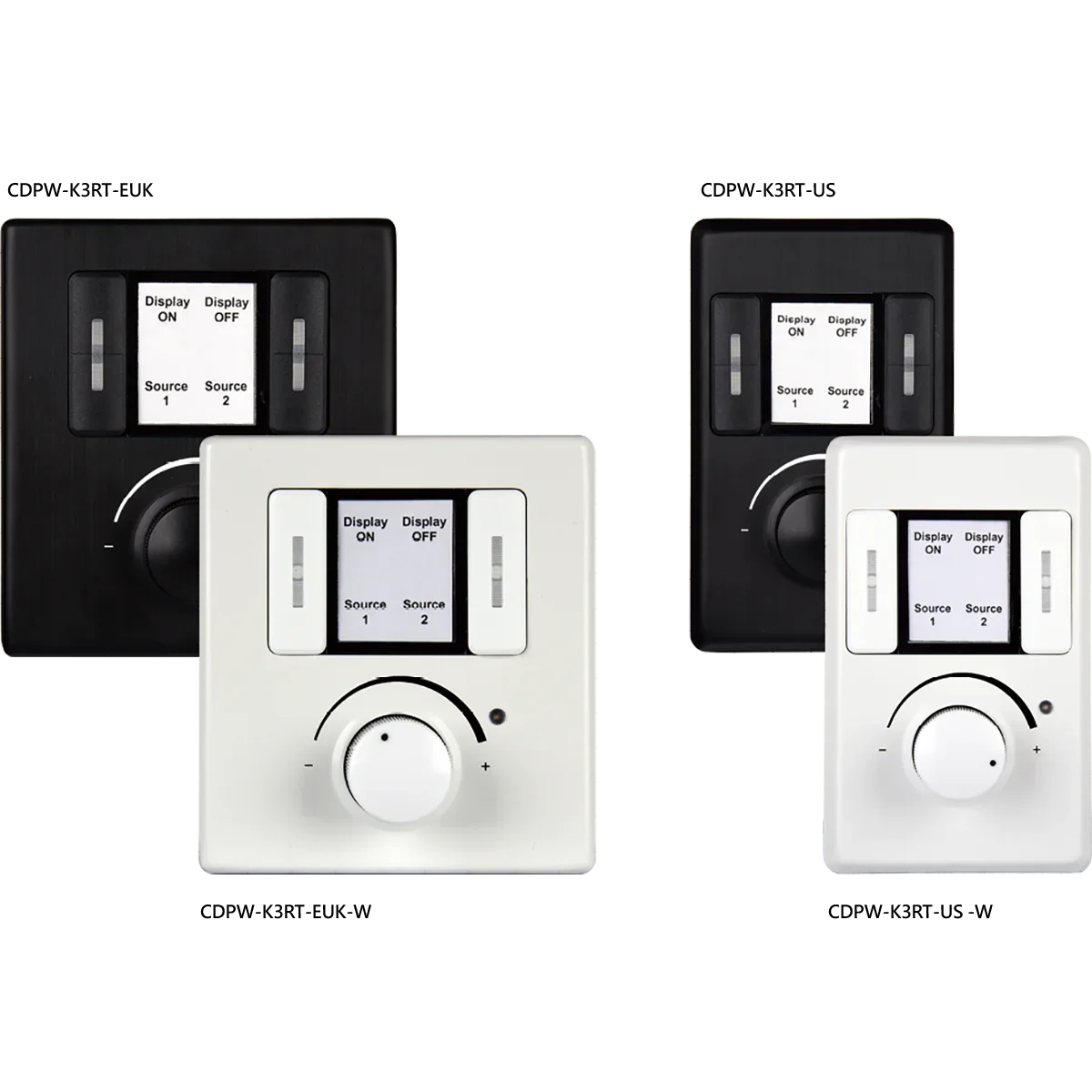

CDPW-K3RT-US	IP Keypad with Rotary Encoder (US Faceplate, Black)
CDPW-K3RT-US-W	IP Keypad with Rotary Encoder (US Faceplate, White)
CDPW-K3RT-EUK	IP Keypad with Rotary Encoder (EU/UK Faceplate, Black)
CDPW-K3RT-EUK-W	IP Keypad with Rotary Encoder (EU/UK Faceplate, White)
ADP-0274AEGS00CB	5V/2.6A Adapter

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
