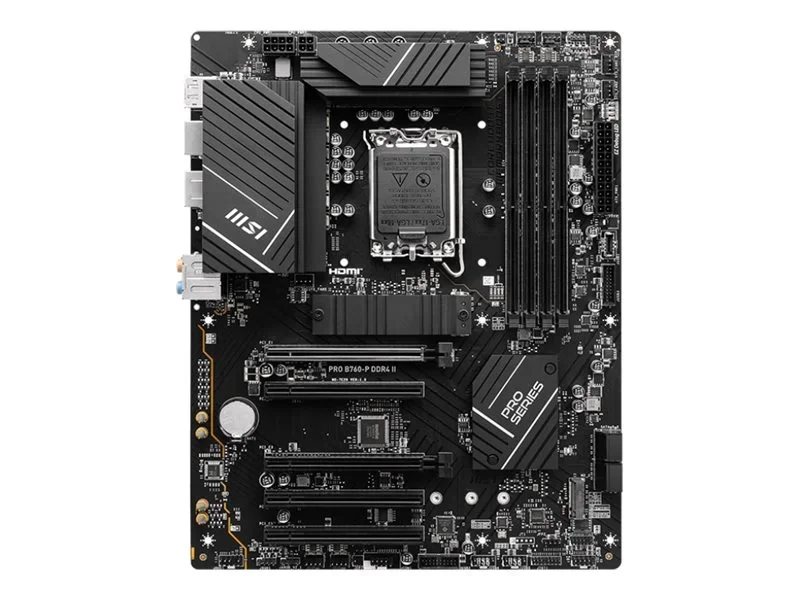

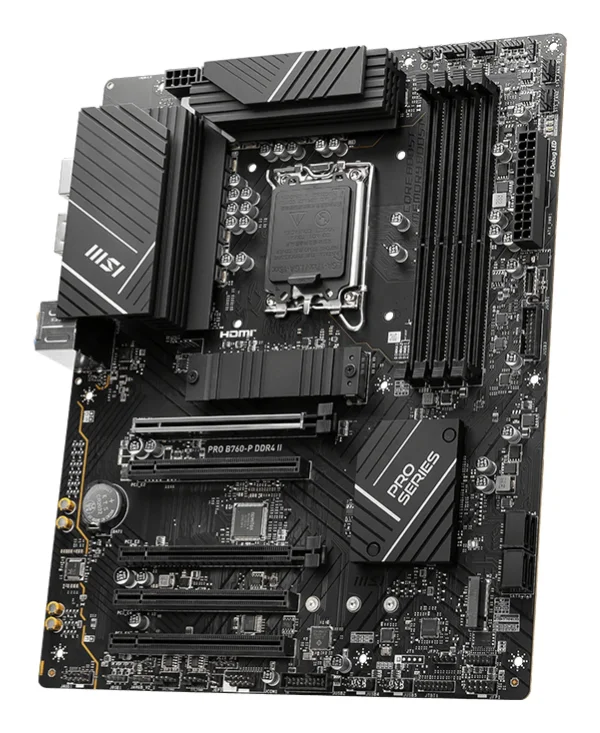

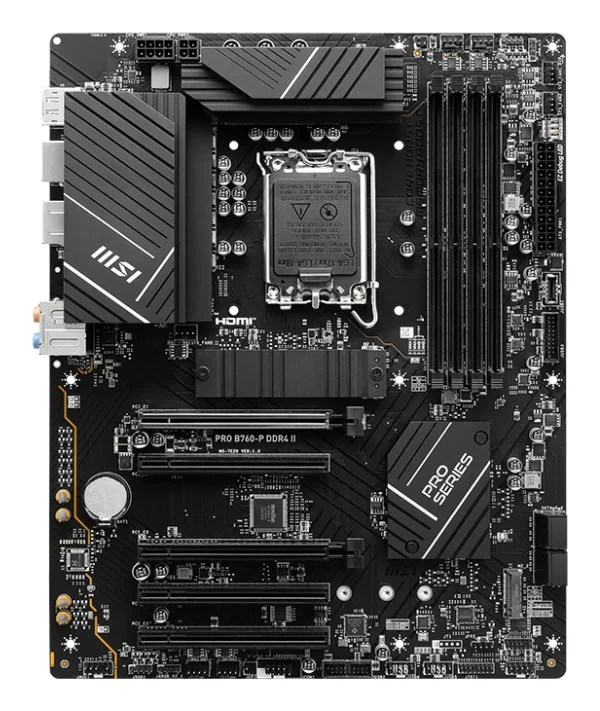

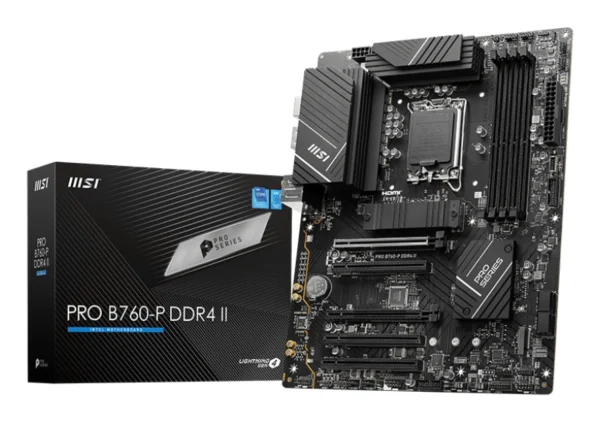

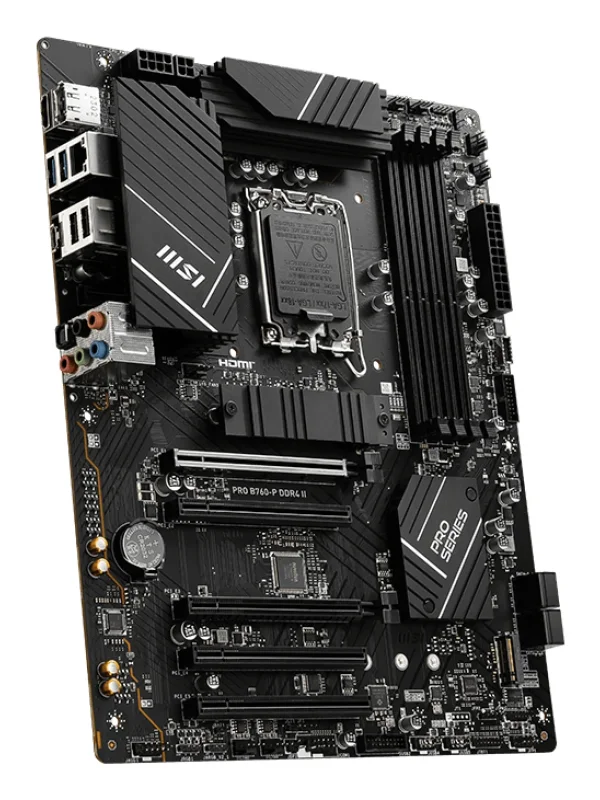

MSI Pro B760-P DDR4 II LGA1700 Atx MB
MSI PRO B760-P DDR4 II LGA1700 ATX MB 4xDDR4 4xSATA 2xM.2
| EAN/GTIN | 4711377128889 |
| Hersteller-Nr. | 7E29-001R |
| Hersteller | MSI |
| Herkunftsland | Taiwan |
| Zolltarifnr. | 84733020 |
| Garantie | 36 Monate |
Keine ausführliche Beschreibung verfügbar.
Prozessor
| Prozessorhersteller | Intel |
| Prozessorsockel | LGA 1700 |
| Kompatible Prozessoren | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium® Gold |
Speicher
| Unterstützte Arbeitsspeicher | DDR4-SDRAM |
| Anzahl der Speichersteckplätze | 4 |
| Arbeitsspeicher Typ | DIMM |
| Speicherkanäle | Zweikanalig |
| ECC-Kompatibilität | Nicht-ECC |
| Unterstützte Speichertaktrate (max.) | 5333 MHz |
| RAM-Speicher maximal | 128 GB |
| Unbuffered Speicher | Ja |
Speicher-Controller
| Unterstützte Speicherlaufwerk-Schnittstellen | SATA III |
| RAID-Unterstützung | Ja |
| RAID Level | 0, 1, 5, 10 |
Interne E/A-Anschlüsse
| Anzahl USB 2.0 Schnittstellen | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anschlüsse | 1 |
| SATA III Anschlüsse | 4 |
| S/PDIF aus Stecker | Ja |
| Front Panel Audiostecker | Ja |
| Frontpanel-Stecker | Ja |
| ATX Stromstecker (24-pol.) | Ja |
| Power Fan Connector | Ja |
| CPU Ventilatorstecker | Ja |
| Chassis Intrusion Stecker | Ja |
| 12-V-Stromanschluss | Ja |

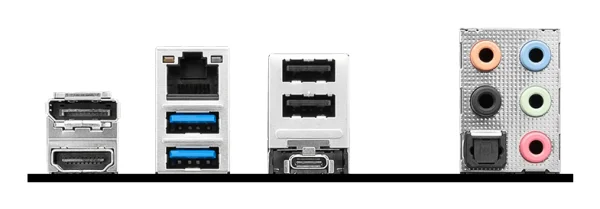

E/A-Anschlüsse auf der Rückseite
| Anzahl USB 2.0 Anschlüsse | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ C | 1 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Anzahl HDMI-Anschlüsse | 1 |
| HDMI-Version | 2.1 |
| Anzahl DisplayPort Anschlüsse | 1 |
| DisplayPorts-Version | 1.4 |
Netzwerk
| Ethernet/LAN | Ja |
| Ethernet Schnittstellen Typ | 2.5 Gigabit Ethernet |
| LAN-Controller | Realtek RTL8125-BG |
| WLAN | Nein |
Merkmale
| Motherboard Chipsatz | Intel B760 |
| Audio-Chip | Realtek ALC897 |
| Audio Kanäle | 7.1 Kanäle |
| Komponente für | PC |
| Motherboardformfaktor | ATX |
| Motherboard Chipsatz Familie | Intel |
| Unterstützt Windows-Betriebssysteme | Windows 10 x64, Windows 11 x64 |
Erweiterungssteckplätze
| PCI-Express x1 (Gen 3.x)-Anschlüsse | 1 |
| PCI Express x1-Steckplätze (Gen 4.x) | 2 |
| PCI Express x4-Steckplätze (Gen 4.x) | 1 |
| PCI Express x16-Steckplätze (Gen 4.x) | 1 |
| Anzahl der M.2 (M)-Steckplätze | 2 |
Gewicht und Abmessungen
| Breite | 243,8 mm |
| Tiefe | 304,8 mm |
Lieferumfang
| Mitgelieferte Kabel | SATA |
| Treiber enthalten | Ja |
Specs: Icecat.biz
| Länge | 35,00 cm |
| Breite | 27,00 cm |
| Höhe | 6,50 cm |
| Gewicht | 1,43 kg |
