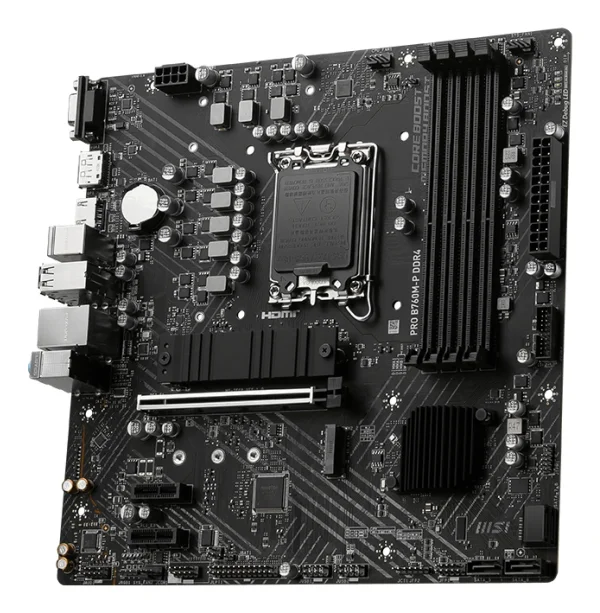

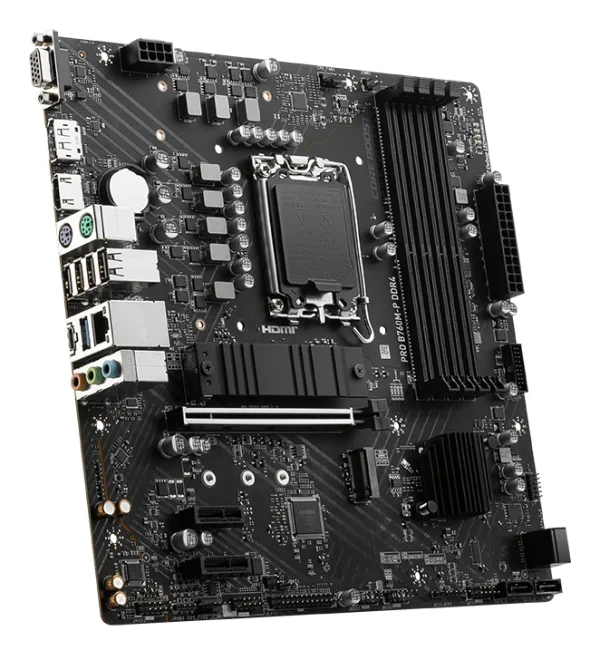

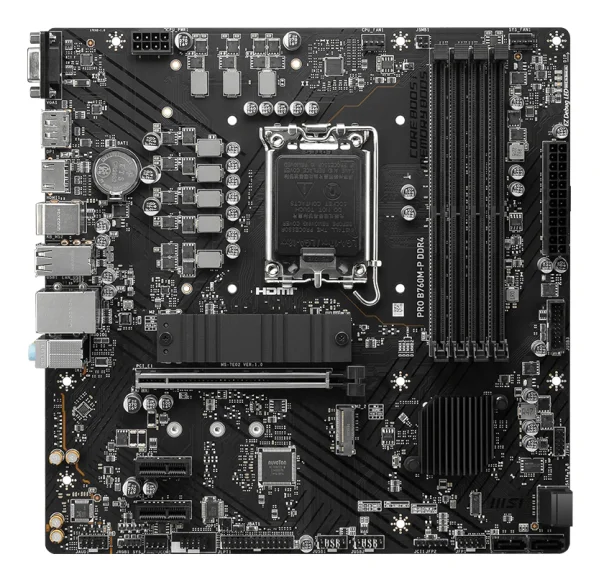

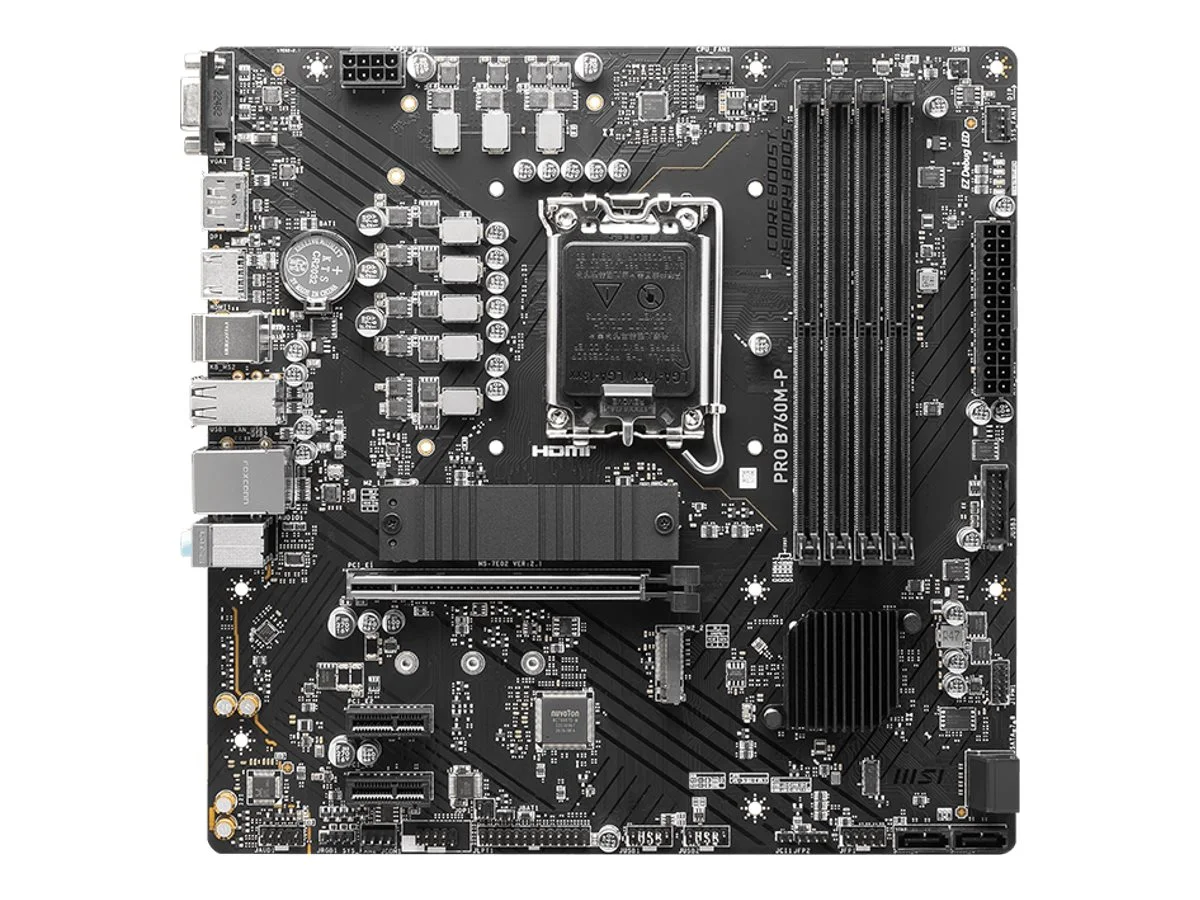

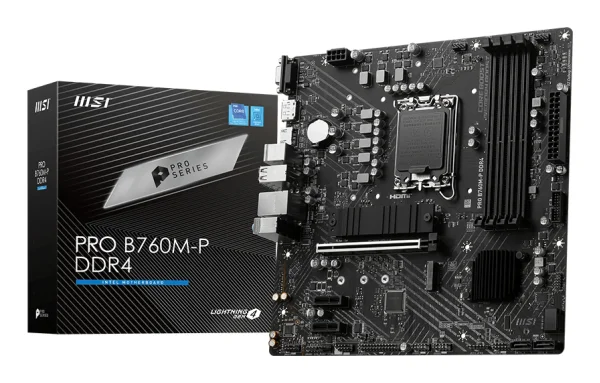

MSI Pro B760M-P LGA1700 DDR4
MSI PRO B760M-P LGA1700 DDR4
| EAN/GTIN | 4711377030991 |
| Hersteller-Nr. | 7E02-001R |
| Hersteller | MSI |
| Herkunftsland | Taiwan |
| Zolltarifnr. | 84733020 |
| Garantie | 36 Monate |
Die PRO-Serie ist auf Profis aus allen Bereichen des Lebens zugeschnitten. Die Produktreihe zeichnet sich durch beeindruckende Leistung und hohe Qualität aus und zielt darauf ab, dem Benutzer eine unglaubliche Erfahrung zu bieten. Anwender, die Wert auf Produktivität und Effizienz legen, können sich auf die MSI PRO Serie verlassen, um Multitasking und Effizienzsteigerung zu erreichen.
Prozessor
| Prozessorhersteller | Intel |
| Prozessorsockel | LGA 1700 |
| Kompatible Prozessoren | Intel® Celeron®, Intel® Pentium® Gold |
| Maximale Anzahl an SMP-Prozessoren | 1 |
| Unterstützte Prozessorsteckplätze | LGA 1700 |
Speicher
| Unterstützte Arbeitsspeicher | DDR4-SDRAM |
| Anzahl der Speichersteckplätze | 4 |
| Arbeitsspeicher Typ | DIMM |
| Speicherkanäle | Zweikanalig |
| ECC-Kompatibilität | Nicht-ECC |
| Unterstützte Arbeitsspeichergeschwindigkeit | 4800, 4600, 4400, 4266, 4200, 4000, 3800, 3733, 3600, 3466, 3400, 3333, 3200, 2933, 2666, 2400, 2133 MHz |
| Unterstützte Speichertaktrate (max.) | 4800 MHz |
| RAM-Speicher maximal | 128 GB |
Speicher-Controller
| Unterstützte Speicherlaufwerk-Schnittstellen | M.2, SATA III |
| RAID-Unterstützung | Ja |
| RAID Level | 0, 1, 5, 10 |
Grafik
| Eingebaute Grafikadapter | Nein |
Interne E/A-Anschlüsse
| Anzahl USB 2.0 Schnittstellen | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse | 2 |
| SATA III Anschlüsse | 4 |
| Front Panel Audiostecker | Ja |
| Frontpanel-Stecker | Ja |
| ATX Stromstecker (24-pol.) | Ja |
| CPU Ventilatorstecker | Ja |
| TPM-Anschluss | Ja |
| RGB-LED-Stiftleiste | Ja |

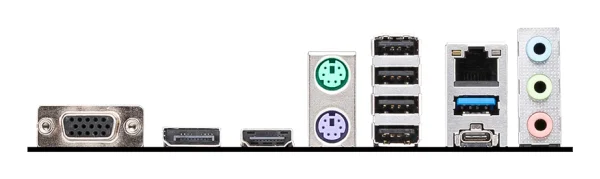

E/A-Anschlüsse auf der Rückseite
| Anzahl USB 2.0 Anschlüsse | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ C | 1 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Anzahl HDMI-Anschlüsse | 1 |
| HDMI-Version | 1.4 |
| Anzahl DisplayPort Anschlüsse | 1 |
| DisplayPorts-Version | 1.4 |
Netzwerk
| Ethernet/LAN | Ja |
| Ethernet Schnittstellen Typ | 2.5 Gigabit Ethernet |
| WLAN | Nein |
Merkmale
| Motherboard Chipsatz | Intel B760 |
| Audio-Chip | Realtek ALC897 |
| Audio Kanäle | 7.1 Kanäle |
| Produktfarbe | Schwarz |
| Komponente für | PC |
| Motherboardformfaktor | micro ATX |
| Motherboard Chipsatz Familie | Intel |
| Energiequelle | ATX |
| Unterstützt Windows-Betriebssysteme | Windows 10, Windows 11 |
Erweiterungssteckplätze
| PCI-Express x1 (Gen 3.x)-Anschlüsse | 2 |
| PCI-Express x16-Slots | 2 |
| Anzahl der M.2 (M)-Steckplätze | 2 |
BIOS
| BIOS-Typ | UEFI AMI |
| BIOS-Speichergröße | 256 Mbit |
| Systemverwaltung BIOS (SMBIOS) Version | 3.5 |
Gewicht und Abmessungen
| Breite | 243,8 mm |
| Tiefe | 243,8 mm |
Specs: Icecat.biz
| Länge | 30,00 cm |
| Breite | 27,50 cm |
| Höhe | 5,50 cm |
| Gewicht | 0,88 kg |
