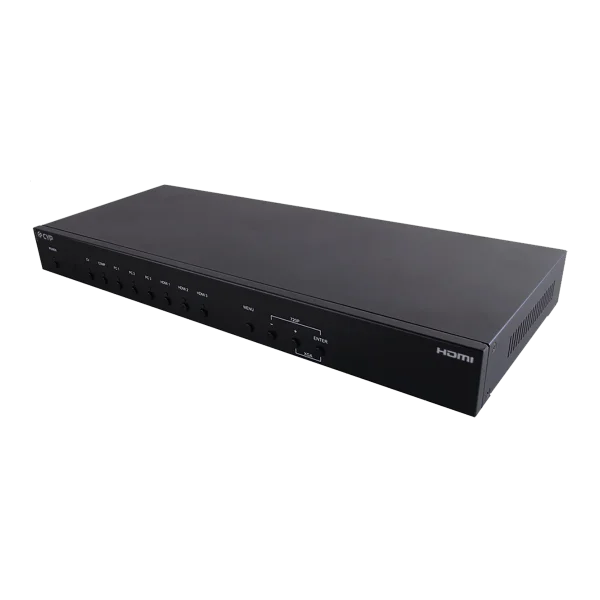

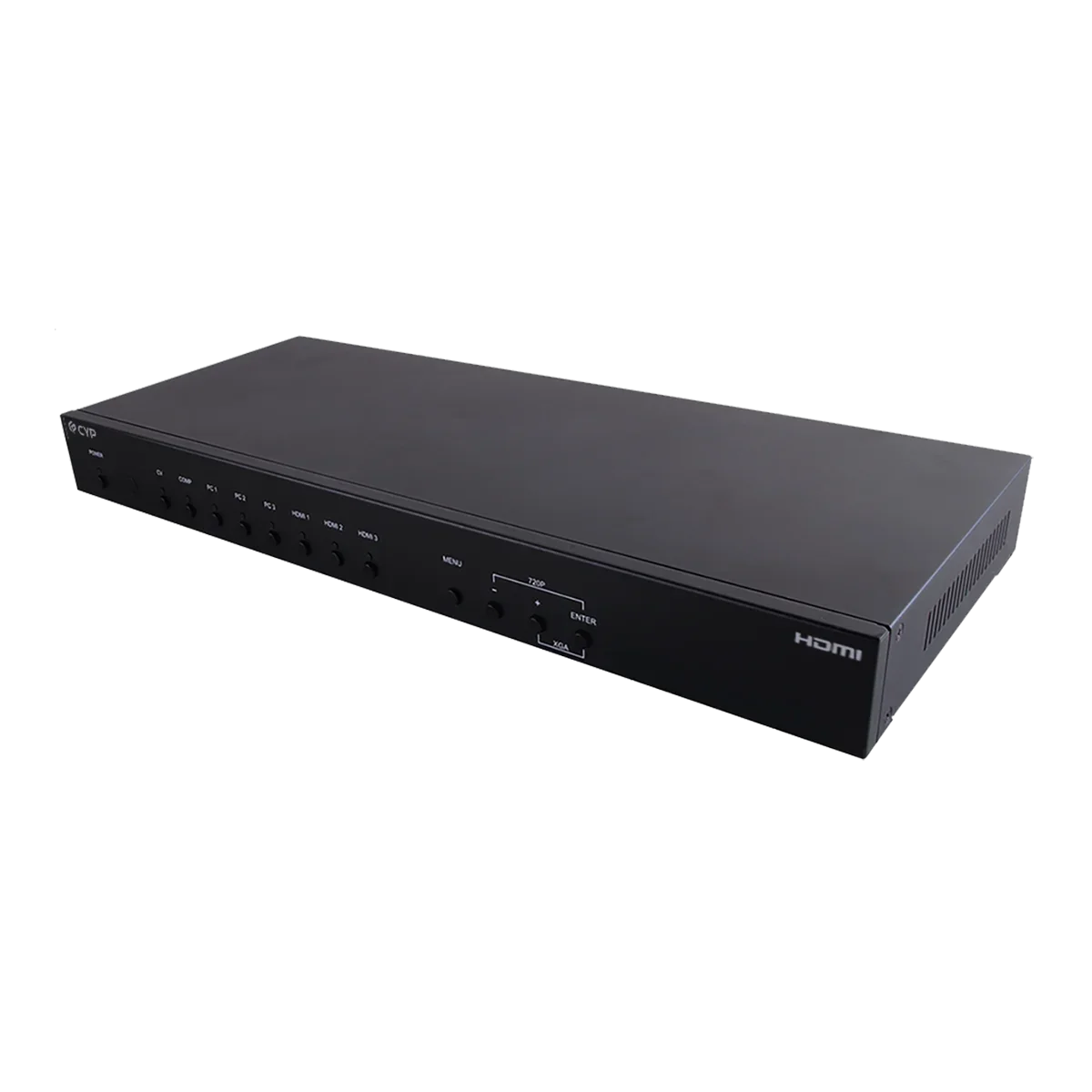

Multiple Inputs to HDMI/VGA Scaler

Supports switching and scaling of multi-format inputs to HDMI or PC/HD, Supports EDID management and HDCP compliance, Supports 3D de-interlace and 3D comb filter, Supports frame rate conversion, Supports RS-232, IP (Telnet/WebGUI) and IR controls, Supports output timing hot keys switching, Supports Digital to Analog (DAC) and Analog to Digital (ADC) Audio conversion

Hersteller-Nr.	CSC-5500N
Hersteller	Cypress Technology

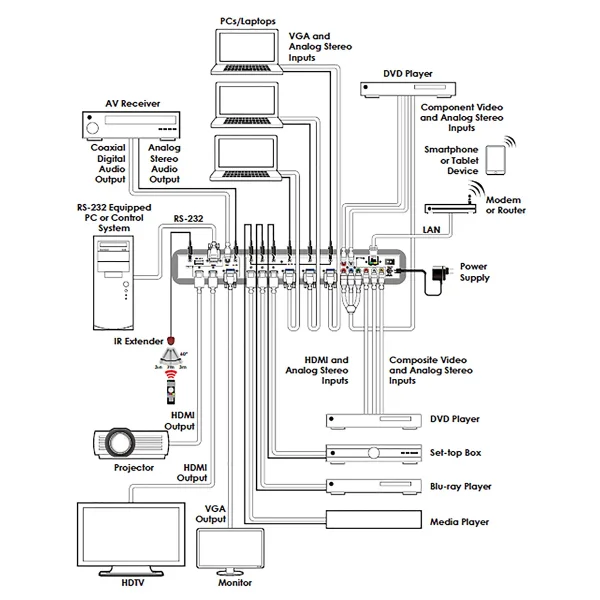

This Multi Inputs Scaler has Composite Video, Component Video, PC (VGA), and HDMI inputs. It can switch and scale the signal to HDMI or VGA with audio outputs. It supports HDMI output resolutions up to 1080p/WUXGA with Analog Digital Conversion (ADC) and Digital Analog Conversion (DAC), allowing multi-format inputs to be displayed on an HDMI or VGA monitor. In addition, the On-Screen Display (OSD), IR remote, RS-232, IP (Telnet/WebGUI) and on-panel controls make this product very versatile as it can be used in various scenarios.

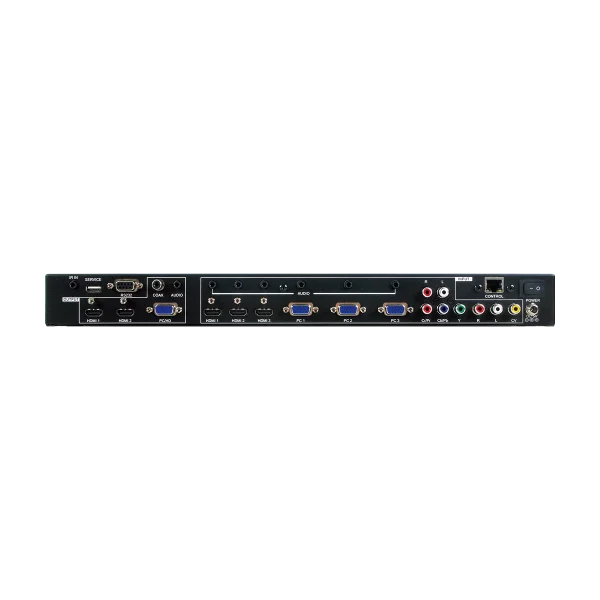

Interfaces

Input Port

3×HDMI

3×VGA (15-pin D-sub)

1×Component Video (COMP)

1×Composite Video (CV)

6×Stereo Audio (3.5mm)

4×RCA Stereo Audio

Output Port

2×HDMI

1×VGA (15-pin D-sub)

1×Coaxial Audio

1×Stereo Audio (3.5mm)

Video
HDMI Compliance	HDMI 1.3(DVI 1.0)
HDCP Compliance	HDCP 1.4
Input Signal Type	CVBS : NTSC, PAL, SECAM Component: Up to 1080@p60 PC: Up to WUXGA(RB) HDMI: Up to 1080@p60
		Resolutions
Maximum Input	HDMI	1920×1080p@60 1920×1200@60 (RB)
	CVBS	480i@60/576i@50
	Component	1920×1080p@60
	PC	1920x1200@60RB
Maximum Output	HDMI	1920×1080p@60 1920×1200@60 (RB)
	PC	1920x1080p@60Hz 1920×1200@60 (RB)
