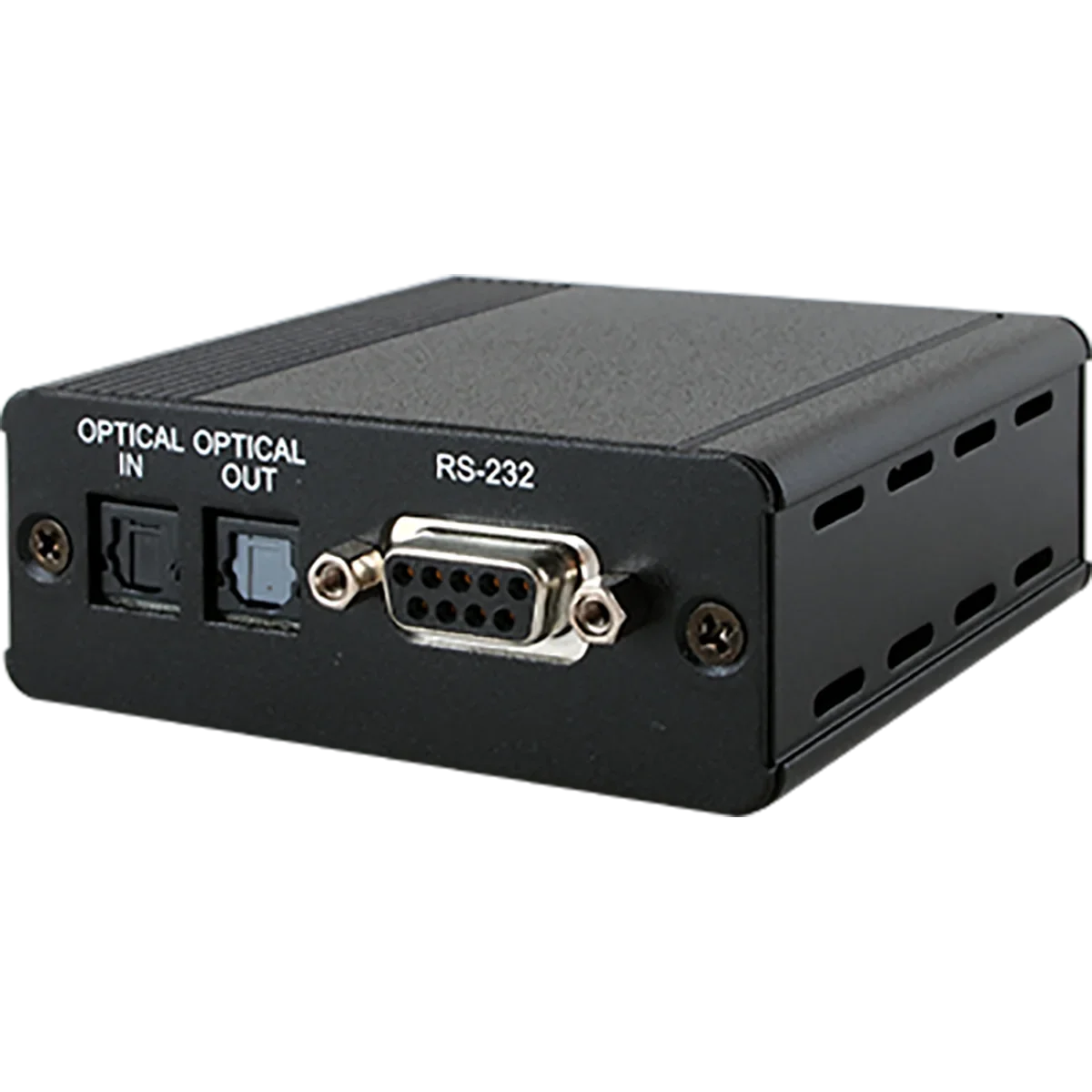

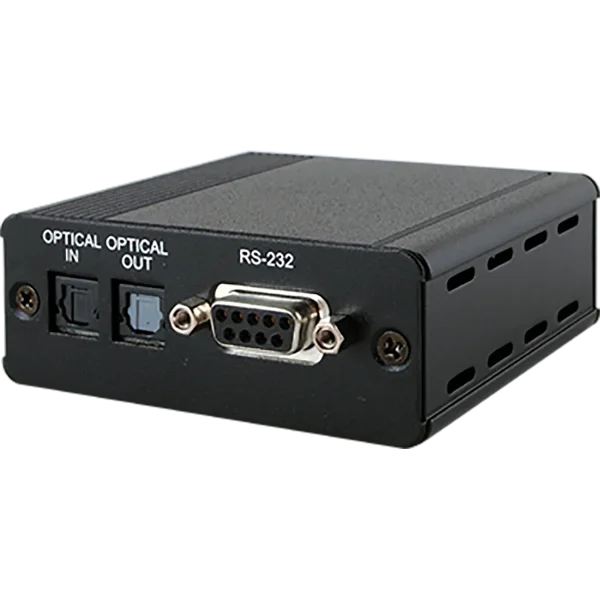

Optical and RS-232 Transmitter Operation

Supports S/PDIF IN & OUT and RS-232 control, Supports Optical S/PDIF audio sampling rate up to 192 kHz, The S/PDIF with 192kHz sampling rate over a single CAT5e/6/7 cable up to 100m/328ft, 96kHz sampling rate the cable up to 150m/492ft and 48kHz sampling rate the cable up to 300m/984ft, Supports LPCM 2CH,Dolby Digital 2~5.1CH, DTS 2~5.1CH (Pass through), Support Bi-direction Power over Cable (PoC), Bi-directional RS-232 control

Hersteller-Nr.	DCT-30TX
Hersteller	Cypress Technology

The Optical Digital Audio with RS-232 Transmitter and Receiver set can send and receive digital audio (S/PDIF) signals over a single run of CAT5e/6 cable up to 300m. It has the added benefit of RS-232 pass-through allowing control of devices and the bi-directional Power over Ethernet (PoE) function eliminates the need for a second power supply, providing greater flexibility in installations.

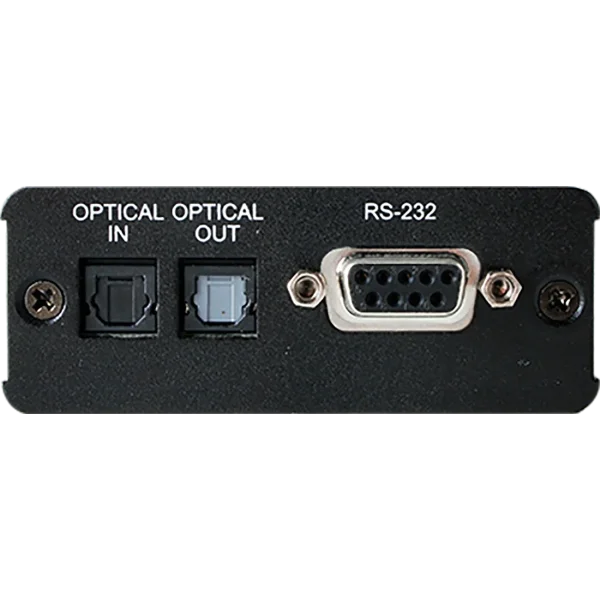

Transmitter
Input Ports	1 x L/R (2-RCA) 1 x RS-232

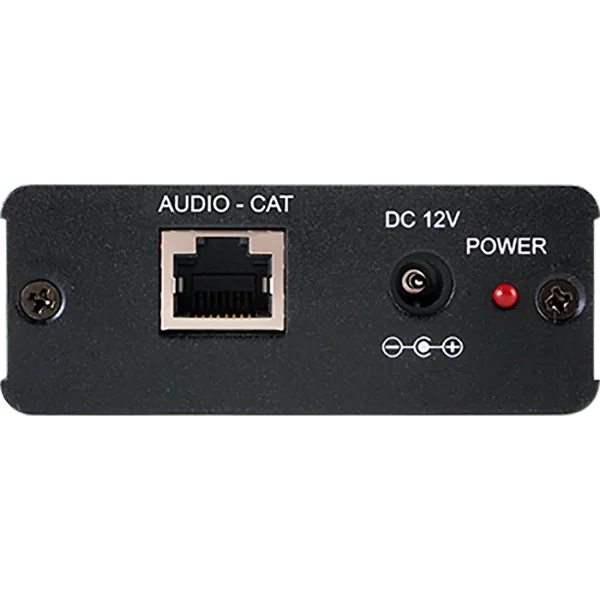

Output ports	1 x L/R (2-RCA) 1 x AUDIO-CAT
Receiver
Input Ports	1 x L/R (2-RCA) 1 x AUDIO-CAT
Output ports	1 x L/R (2-RCA) 1 x RS-232
Audio Formats	Analog Stereo 2CH
Output Level
THD+N	80dB
SNR	95dB
Frequency Response	± 3 dBFS/Vrms
Crosstalk	-88dB
CAT Cable Distance	300m
Power Supply	12VDC/1.25A (US/EU standards, CE/FCC/UL certified)
ESD Protection	Human body model: ± 8kV (air-gap discharge) ± 4kV (contact discharge)
Dimensions	102mm (W) x 102mm (D) x 25mm (H)/Jack Excluded 102mm (W) x 116.5mm (D) x 25mm (H)/Jack Included
Weight	242g/each
Chassis Material	Metal
Silkscreen Color	Black
Operating Temperature	0˚C~40˚C / 32˚F ~ 104˚F
