PC/HD to DVI Format Converter
Klicken zum Vergrößern
Cypress Technology

PC/HD to DVI Format Converter

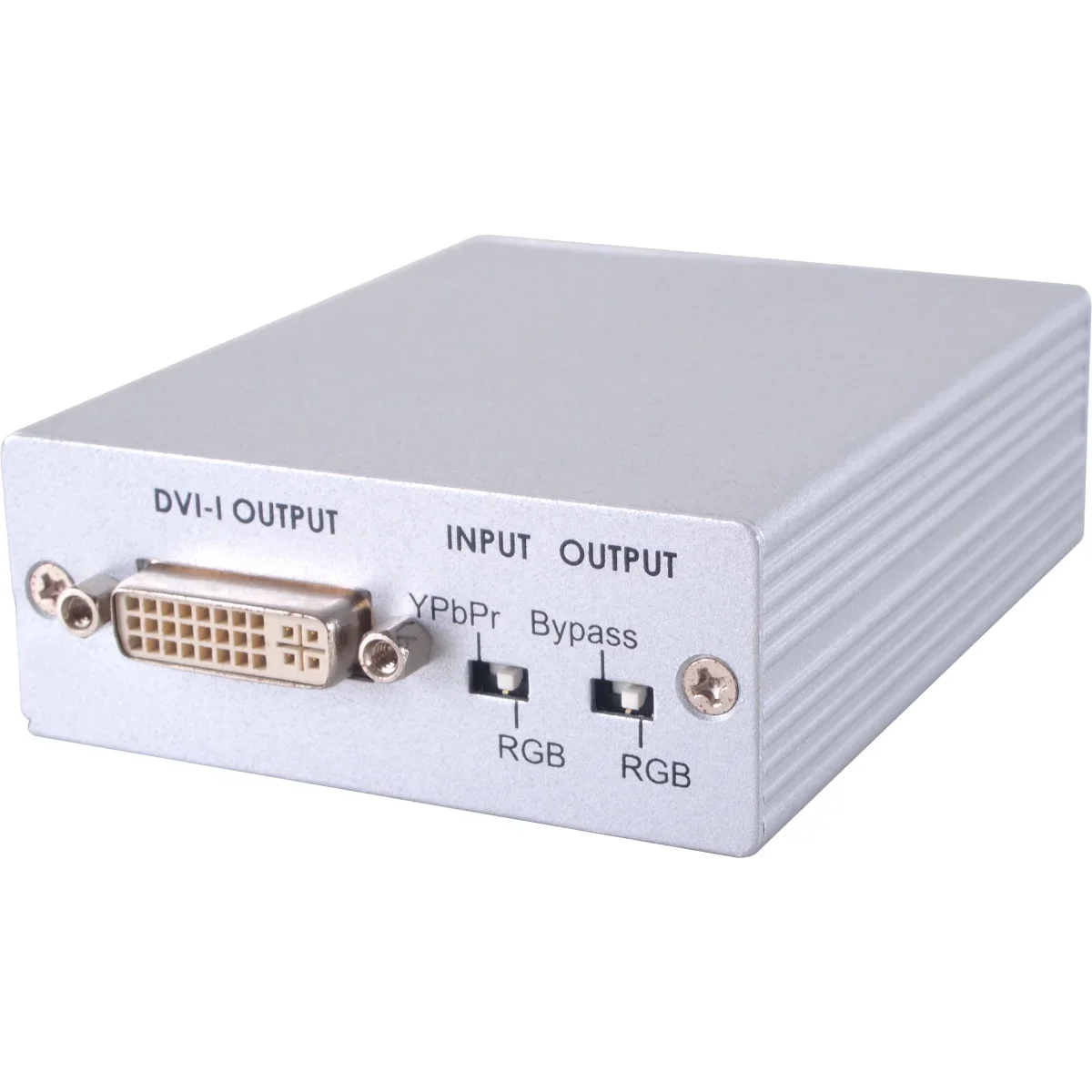

Connect computers with analog PC output or DVD Players with HD component output to digital DVI monitors or projectors, Manual selection of analog RGB or Component (YPbPr) sources, Manual selection of output between Bypass or digital RGB, Supports input resolutions up to 1920×1200@60 (RB) for PC and 1920×1080p@60 Hz for HD component, Built-in EDID management

Hersteller-Nr.CP-1261D-W
HerstellerCypress Technology

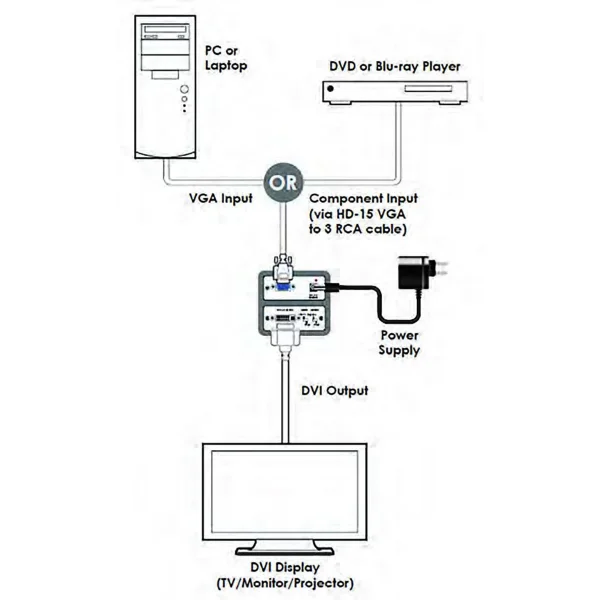

This PC/HD to DVI Format converter can convert and upgrade your input signal from analog to digital and VGA to a DVI signal, whether your source is a RGB signal from a PC or a Component signal (through the supplied HD-15 VGA to 3 RCA cable).

Interfaces
Input Port

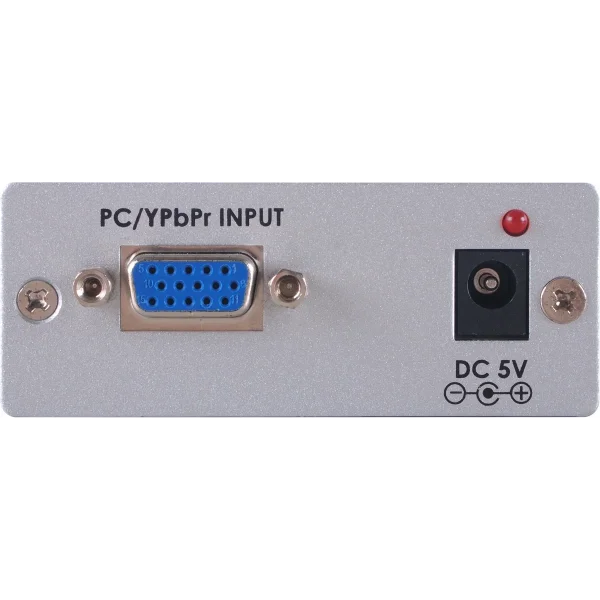

  • 1 Analog HD-15 (RGBHV or YPbPr)
Output Port

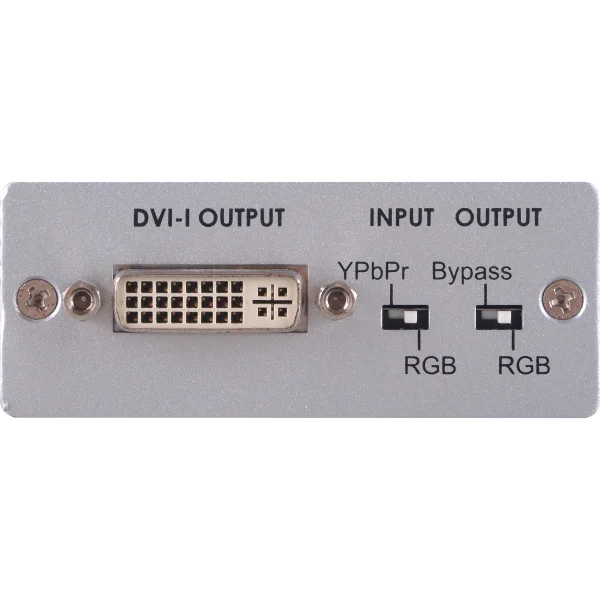

  • 1 DVI-I (DVI-D output only)
Video
HDMI Compliance
  • N/A
Input Signal Type
  • 1920×1080P@60
Output Signal Types
  • 1920x1080p@60
Resolutions
Maximum Input

HD-15

  • 1920×1200@60 (RB)
  • 1920×1080p@60
Maximum Output DVI
  • 1920×1080P@60
Enclosure
Chassis Material
  • Aluminum
Chassis Color
  • Silver
Dimensions (W×H×D)
  • 76 mm × 30 mm × 105 mm
Weight
  • 190g
Power
Power Supply
  • 5 V/1 A DC
Power Consumption
  • 3.6 W
Field Firmware Update



Interface
  • PCB on board, uses RS232
Ordering Information
Model No.Product Description
CP-1261D
  • PC/HD to DVI Format Converter

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)
Auf Anfrage
zzgl. 10,00 € Versand • ab 500 € versandkostenfrei
Auf Bestellung
Lieferzeit: ca. 30 Tage
