PC/YUV to HDMI Format Converter with Audio
Klicken zum Vergrößern
Cypress Technology

PC/YUV to HDMI Format Converter with Audio

Supports a wide range of YUV resolutions (480i~1080p) , Supports analog audio 2CH (48kHz sampling rate) , Support YCbCr to RGB color space conversion , Supports input format of RGBHV or YPbPr, Supports input resolutions up to 1920×1200@60RB for PC and 1080p for HD, Supports phase adjustment

Hersteller-Nr.CP-1261HS
HerstellerCypress Technology

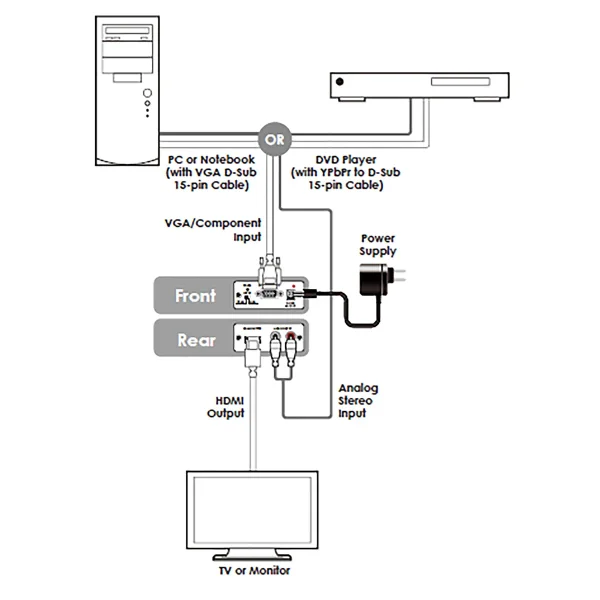

The PC/YUV to HDMI Format Converter allows analog PC RGBHV or YUV signals to be converted to digital HDMI format with embedding of analog stereo audio at the same time. Connect your analog RGBHV/YUV output from a PC or Component Video source to the digital HDMI input of the latest HD ready plasma, LCD or DLP displays. Its high bandwidth capability supports a wide range of PC and HDTV resolutions. Further, its phase enhancement function allows users to freely adjust phase to stabilize image quality.
Interfaces

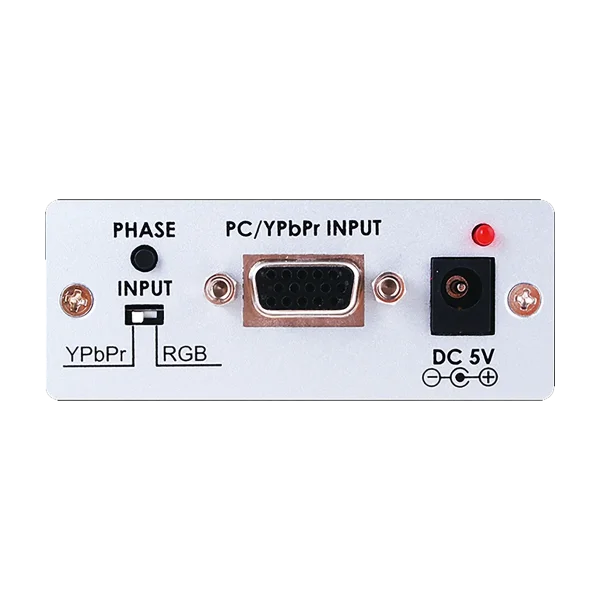

Input Port
  • 1 VGA (HD-15)
  • 1 L/R RCA jack

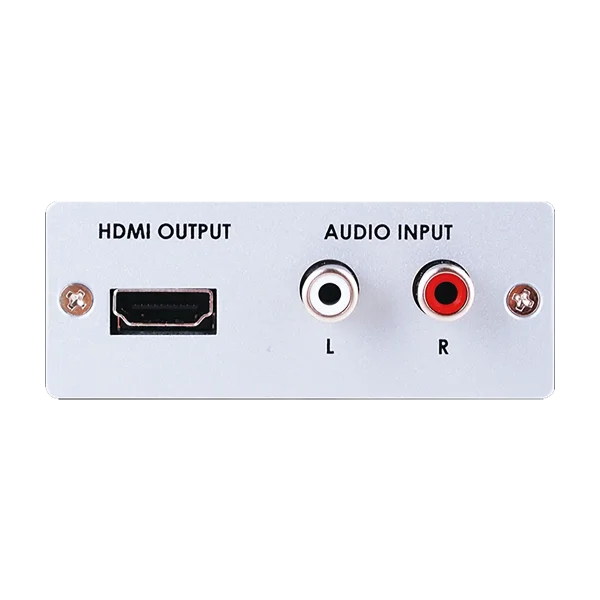

Output Port
  • 1 HDMI (Type-A)
Video
HDMI Compliance
  • HDMI 1.2(DVI 1.0)
HDCP Compliance
  • 1.4
Input Signal Type
  • 1920×1080P@60
Output Signal Types
  • 1920x1080p
Resolutions
Maximum Input

VGA (HD-15)

  • 1920×1080p@60
  • 1920×1200p@60RB
Maximum Output HDMI
  • 1920×1080p@60
  • 1920×1200p@60RB
Enclosure
Chassis Material
  • Aluminum
Chassis Color
  • Silver
Dimensions (W×H×D)
  • 76 mm × 30 mm × 105 mm
Weight
  • 190g
Power
Power Supply
  • 5 V/1 A DC
Power Consumption
  • 3.6W
Field Firmware Update



Interface
  • PCB on board, uses RS232
Ordering Information
Model No.Product Description
CP-1261HS
  • PC/YUV to HDMI Format Converter with Audio

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)
Auf Anfrage
zzgl. 10,00 € Versand • ab 500 € versandkostenfrei
Auf Bestellung
Lieferzeit: ca. 30 Tage
