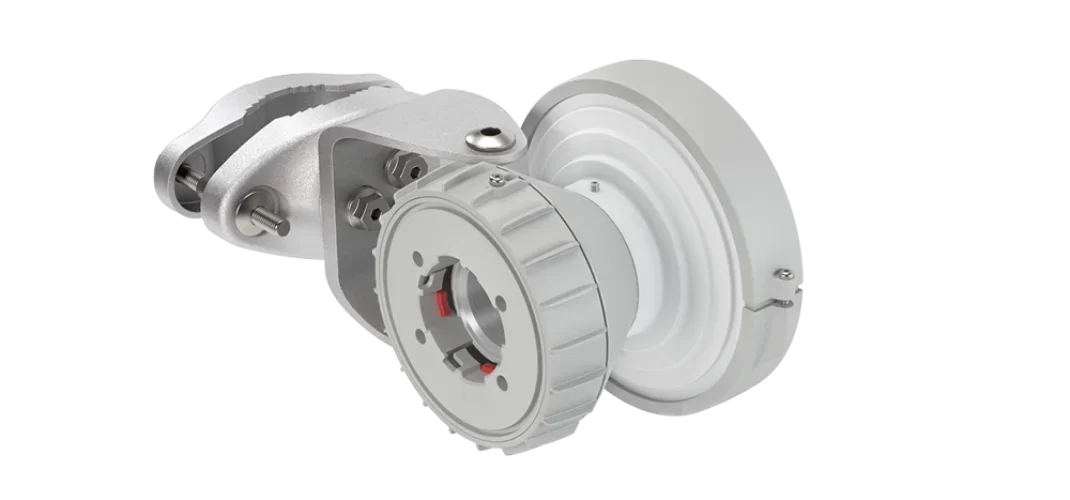

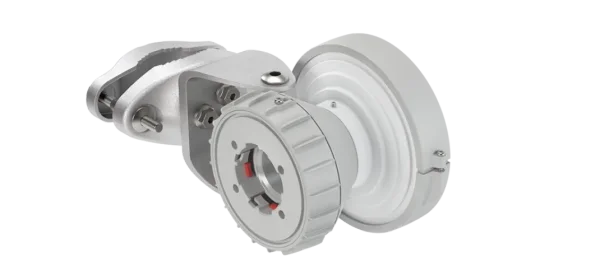

RF Elements Symmetrical Horn Antenna 70° Sector, SH-TP-5-70

Antenna Connection TwistPort™ - Quick Locking Waveguide Port Antenna Type Horn Materials UV Resistant ABS Plastic, Polycarbonate, Polypropylene, Aluminium, Stainless Steel Enviromental IP55 Pole Mounting Diameter 15-86 mm Temperature -30°C to +55°C (-22°F to +131°F) Wind Survival 160 km/hour Mechanical Tilt ± 25° Gain Max 11.5 dBi Gain Typical 11.4 dBi Azimuth Beam Width -3 dB H 50° / V 50° Elevation Beam Width -3 dB H 50° / V 50° Azimuth Beam Width -6 dB H 70° / V 70° Elevation Beam Width -6 dB H 70° / V 70° Front-to-Back Ratio 29 dB
