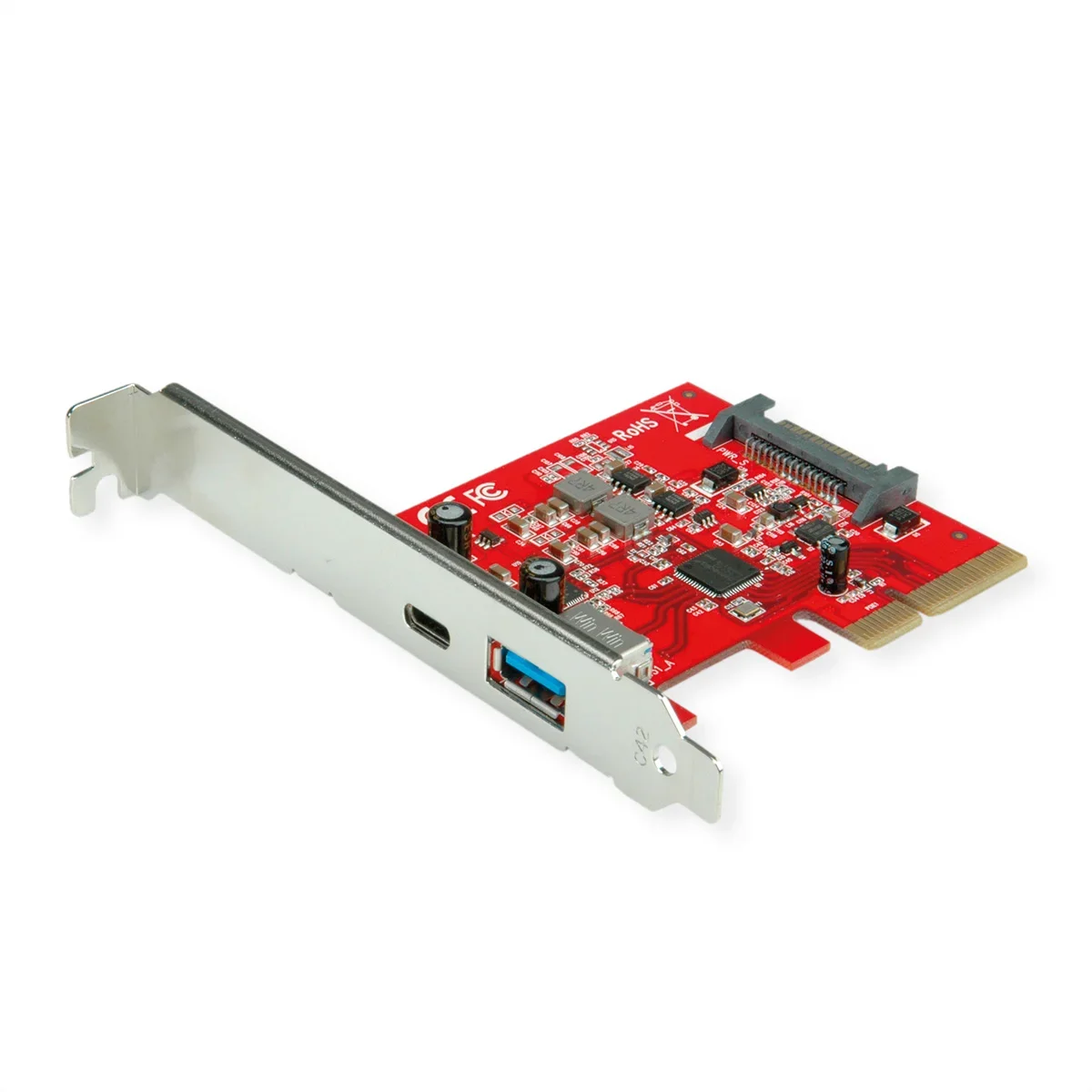

ROLINE PCI-Express-Karte, USB 3.2 Gen 2, 1x USB-A, 1x USB-C
ROLINE PCIe Adapter, USB3.2 Gen2, 2 Port 1x C + 1x A
| EAN/GTIN | 7630049621466 |
| Hersteller-Nr. | 15.06.2142 |
| Hersteller | ROLINE |

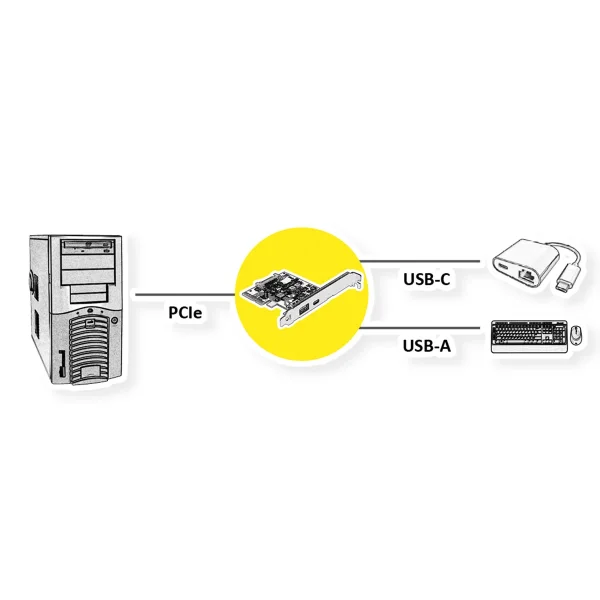

Erweitern Sie Ihren PC um einen USB-A SuperSpeed USB 3.2 Gen 2 und einen USB-C SuperSpeed USB 3.2 Gen 2 Port
- USB 3.2 Gen 2 PCIe x4 Host Adapter
- USB 3.2 Gen 2 bietet SuperSpeed Datentransferraten bis 10 Gbit/s
- Anschlüsse: 1x USB 3.2 Gen 2 Typ C, 1x USB 3.2 Gen 2 Typ A
- Entspricht Universal Serial Bus 3.1 Spezifikation Rev. 1.0
- Erfüllt die Intel eXtensible Host Controller Interface (xHCI) Spezifikation 1.1
- Erfüllt die USB Attached SCSI Protokoll Spezifikation 1.0
- Entspricht der PCI Express Spezifikation 3.0
- Unterstützt 5V3A USB Stromversorgung für jeden USB 3.2 Gen 2 Typ C Port
- Unterstützt PCIe 1.0, PCIe 2.0 und PCIe 3.0 Hauptplatinen
- Unterstützt USB 3.2 Gen 2, USB 3.2 Gen 1, USB 2.0 und USB 1.1 Geräte
- Unterstützt auch Low Profile PCIe (Low Profile Slotblech im Lieferumfang)
- Eingebauter 15-pin SATA Stromkonnektor für die Stromversorgung der USB-Ports
- Unterstützt Windows 11 / 10 / 8.1 / 8 / 7 / Vista / 2012 / 2008 / 2003
Hinweis: Gemäß den aktuellen Spezifikationen der USB.org haben wir die technischen Daten unserer USB 3 Produkte angepasst. Die neue Kennzeichnung für die Ihnen bereits bekannten USB Spezifikationen wurde auf USB 3.2 Gen 1 (vormals USB 3.0 bzw. USB 3.1 Gen 1) sowie USB 3.2 Gen 2 (vormals USB 3.1 bzw. USB 3.1 Gen 2) geändert.
Spezifikationen
| Hersteller | ROLINE |
|---|---|
| Produktgruppe | Schnittstellenkarten |
| Produkttyp | PCI-Express-Adapterkarte |
| Farbe | rot |
| Lieferumfang | Adapter, Low Profile PCI Slotblech, Treiber-CD, Bedienungsanleitung |
| Bus-System | PCI Express |
| Schnittstellen | USB 3.2 Gen 2 |
| USB 2.0 Schnittstelle | ja |
| USB 3.0 Schnittstelle | ja |
| USB 3.1 Schnittstelle | ja |
| Spannungsversorgung | Power-Kabel |
| Datentransfer-Rate | 10 Gbit/s |
| Betriebssysteme | Windows 11 / 10 / 8.1/ 8 / 7 / Vista / 2012 / 2008 / 2003 |
| Anschlüsse | 2x USB 3.2 Gen 2 extern (1x A, 1x C) |
| Bauhöhe | Full Profile |
| Installationsanleitung / Handbuch | ja |
| Gewicht | 47.7 g |
| Verpackungshöhe | 30 mm |
| Verpackungsbreite | 150 mm |
| Verpackungstiefe | 180 mm |
| Paketgewicht | 0.12 kg |
Keine Maßangaben verfügbar.
