SDM-E201R

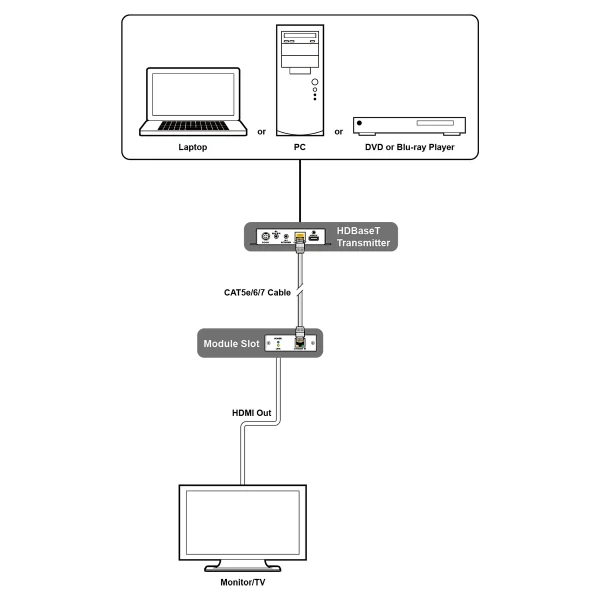

Signal extension for compatible module slot, Supports point to point extension for audio and video, CAT.6A/7 cable can reach up to 40 meters

Hersteller-Nr.	SDM-E201R
Hersteller	Cypress Technology

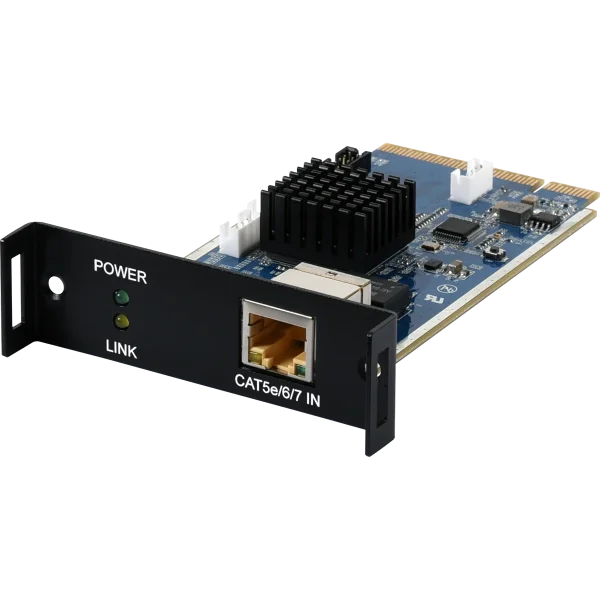

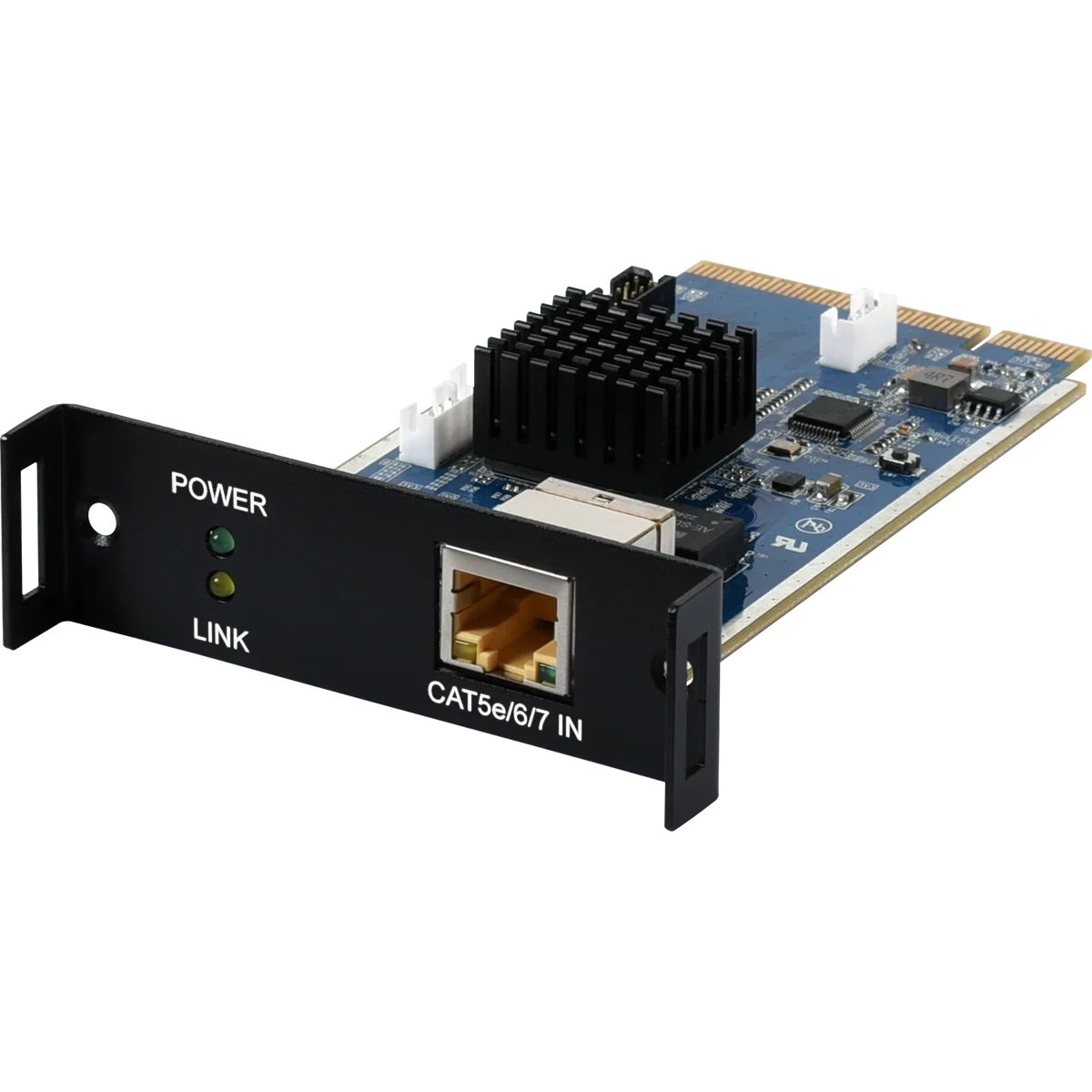

The HDBT Module Card is able to receive signals from compatible transmitter via Category cable, with resolutions up to 4K@60. The module card is compatible with CYP module slot, CPLUS-V32SDM. It can be combined with transmitters that have category interface. This module card offers flexible options to customers.

Interfaces

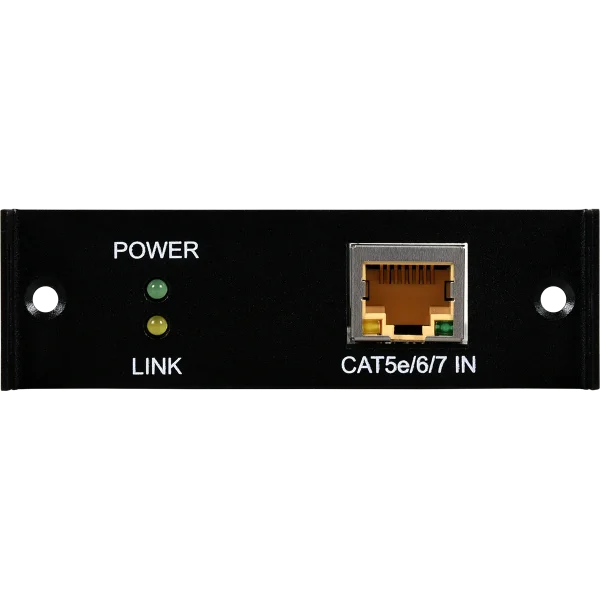

Input Port	1 HDBaseT (RJ-45)
Output Port	1 CYP Module(Edge Connector)

Video
HDMI Compliance	HDMI 2.0 (Edge Connector)
HDCP Compliance	2.2
Input Signal Type	4K@60 YUV 4:2:0
Output Signal Type	4K@60 YUV 4:2:0
Interface	Resolutions
Maximum Input	HDBaseT	4096×2160p@60 YUV 4:2:0
Maximum Output	HDMI (Edge Connector)	4096×2160p@60 YUV 4:2:0

Audio
HDMI	Bypass

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	122.2mm×25mm×82mm [Case Only] 122.2mm×25mm×82mm [All Inclusive]
Weight	60g

Field Firmware Update
CPLUS-V32SDM

ORDERING INFORMATION

Model No.	Product Description
SDM-E201R	HDBaseT Receiver Module
SDM-E201T	HDBaseT Transmitter Module
CPLUS-V32SDM	UHD+ Multi-format Matrix Switcher with USB Ethernet Hub
CSC-VPR-3421	UHD+ HDMI Multiview Processor with Multi-Function Extension Slot

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
