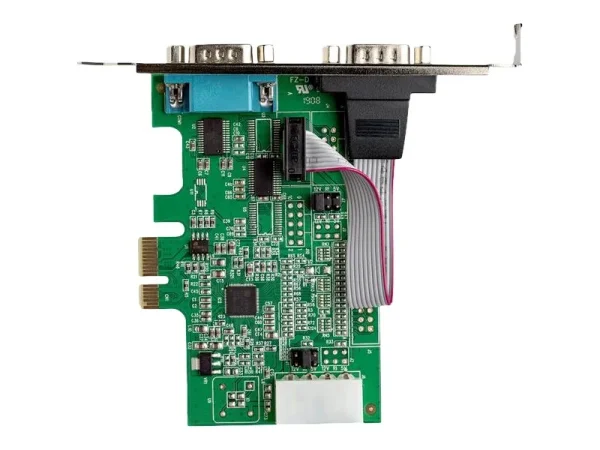

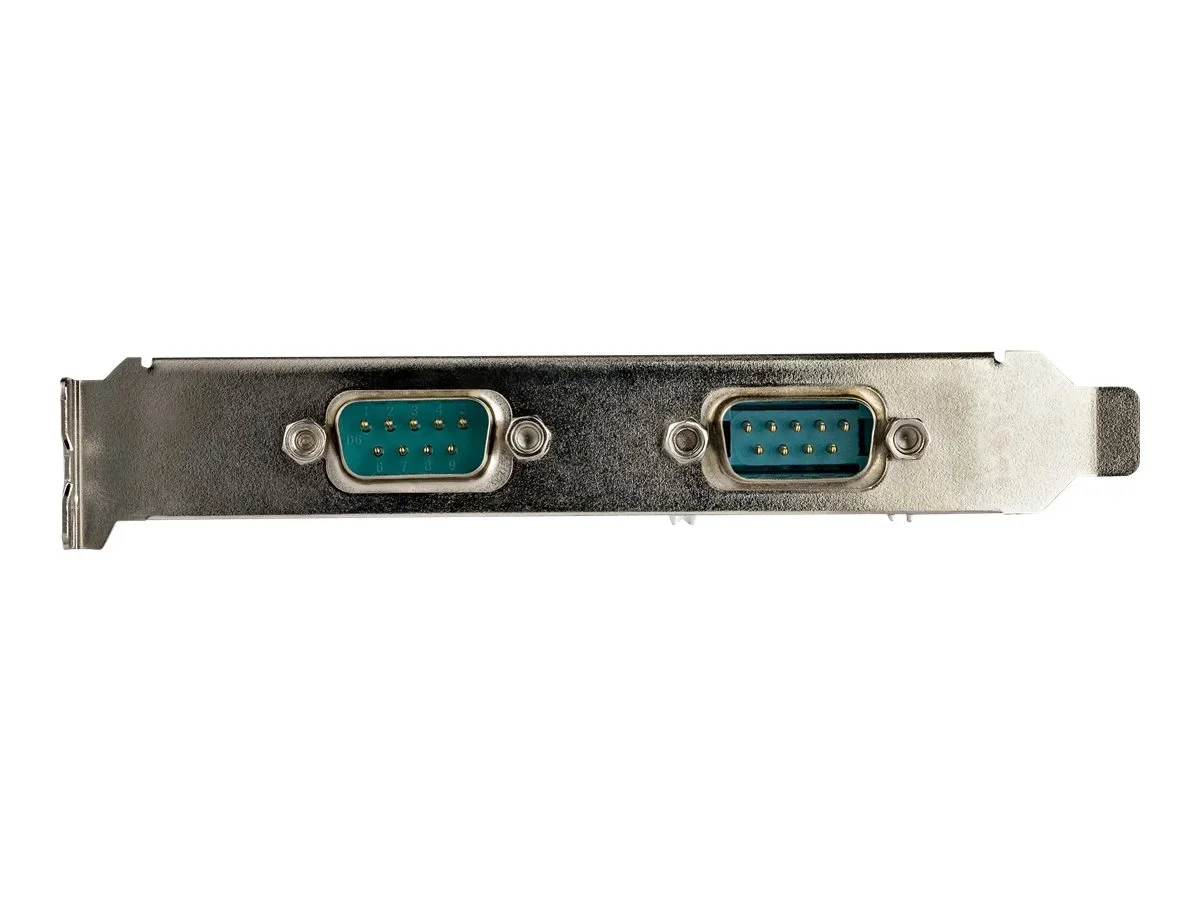

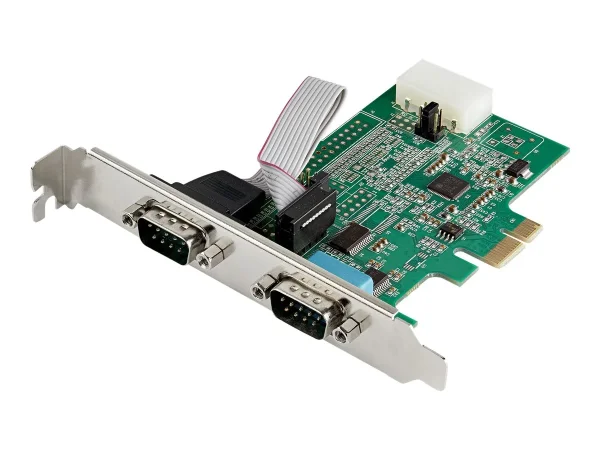

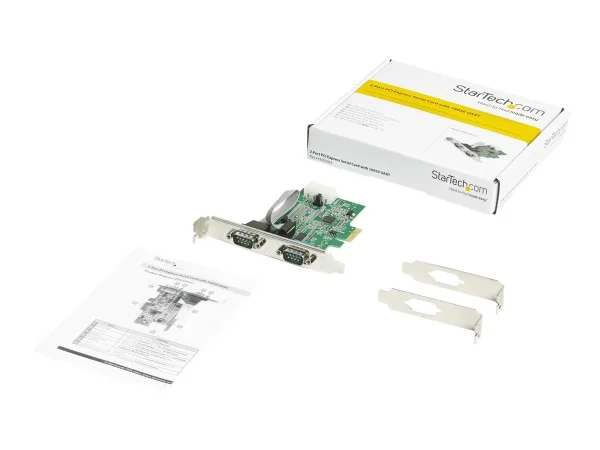

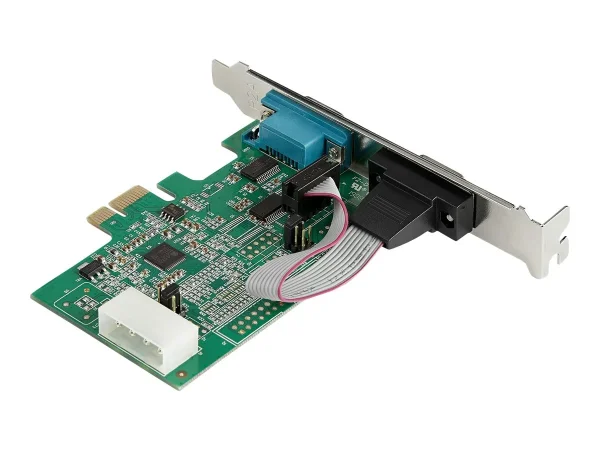

STARTECH PCIe RS232 Karte
STARTECH.COM 2 Port PCI Express serielle Schnittstellenkarte - 16950 UART - 256-Byte-FIFO-Cache - Adapterkarte
| EAN/GTIN | 0065030888332 |
| Hersteller-Nr. | PEX2S953 |
| Hersteller | STARTECH.COM |
| Herkunftsland | China |
| Zolltarifnr. | 84718000 |
| Garantie | 360 Monate |
Anschlüsse und Schnittstellen
| Hostschnittstelle | PCIe |
| Ausgangsschnittstelle | Seriell |
| Erweiterungskarte Standard | PCIe 1.1 |
| Anzahl serielle Anschlüsse | 2 |
| Serielle Schnittstelle | RS-232 |
Design
| Eingebaut | Ja |
| Produktfarbe | Grün |
| Mittlere Betriebsdauer zwischen Ausfällen (MTBF) | 222366 h |
Merkmale
| Chipsatz | Asix AX99100 |
| Baudrate | 921,6 Kbit/s |
| FIFO (First In, First Out) | 256 B |
| Datenbits | 5, 6, 7, 8, 9 |
| Stop bits | 1, 1.5, 2 |
| Parity bit | Eben, Markierung, Nein, Ungerade, Leerzeichen |
| Flusskontrolle Typ | Nein, RTS/CTS, XON/XOFF |
Betriebsbedingungen
| Betriebstemperatur | -10 - 80 °C |
| Temperaturbereich bei Lagerung | -20 - 100 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 85% |
Systemanforderung
| Unterstützt Windows-Betriebssysteme | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Unterstützte Linux-Betriebssysteme | Ja |
| Unterstützte Server-Betriebssysteme | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
Technische Details
| Nachhaltigkeitskonformität | Ja |
| Konformitätsbescheinigungen | CE, RoHS |
Gewicht und Abmessungen
| Breite | 63 mm |
| Tiefe | 75 mm |
| Höhe | 15 mm |
| Gewicht | 56 g |
Specs: Icecat.biz
| Länge | 17,30 cm |
| Breite | 14,30 cm |
| Höhe | 3,00 cm |
| Gewicht | 0,13 kg |
| 1.-84. Stk. | 42,48 € | |
| 85.-154. Stk. | 50,82 € |
