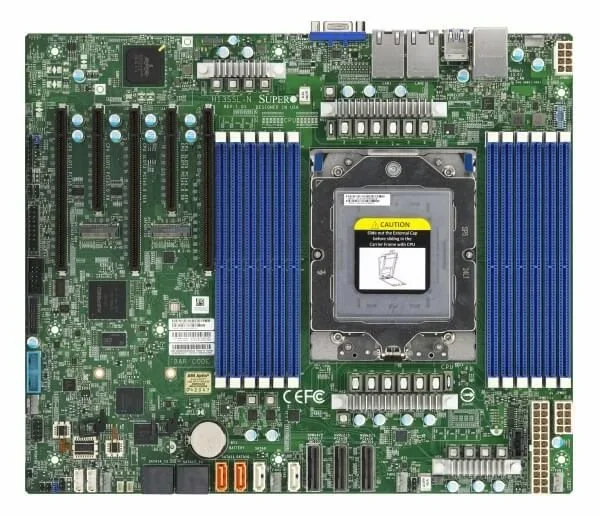

Supermicro H13SSL-N-B/1xSP5 ATX/12xDDR5/2x 1Gbe LAN/bulk/incl. OOB
Chipsatz: System on Chip (SoC) | CPU: 1x Sockel LGA6096 (SP5) für AMD EPYC 9004 CPUs (400W) | RAM: 12x DDR5 4800 REG ECC, max. 3072 GB | Anschlüsse/Typ: | KEIN Onboard-RAID möglich! Unabhängig vom Anschlusstyp! | 6x SATA3 | 2x SATA3 für SATA DOM | 2x M.2 SATA/PCIe 4.0 x4 NVMe (22110/2280) | Slotanzahl: | 3x PCIe 5.0 x16 @ x16 | 2x PCIe 5.0 x8 @ x8 | Schnittstellen (hinten): | 1x VGA (ASPEED AST2600) | 2x 1 GbE LAN (RJ-45) (Broadcom BCM5720) | 1x Mgmt LAN (ASPEED AST2600 BMC) | 4x USB 3.2 Gen1 | Optional: 1x seriell
| EAN/GTIN | 0672042517640 |
| Hersteller-Nr. | H13SSL-N-B |
| Hersteller | Supermicro |
| Prozessor | |
| Prozessorhersteller | AMD |
| Kompatible Prozessoren | AMD EPYC 9004 |
| Prozessorsockel | Socket SP5 |
| Unterstützte Prozessorsteckplätze | Socket SP5 |
| Speicher | |
| Arbeitsspeicher Typ | DIMM |
| Unterstützte Speichermodulkapazitäten | 16GB, 24GB, 32GB, 48GB, 64GB, 128GB |
| RAM-Speicher maximal | 3000 GB |
| Anzahl der Speichersteckplätze | 12 |
| Unterstützte Speichertaktrate (max.) | 4800 MHz |
| ECC-Kompatibilität | ECC |
| Speicherspannung | 1.1 V |
| Unterstützte Arbeitsspeicher | DDR5-SDRAM |
| Netzwerk | |
| Ethernet (LAN - Schnittstelle) | Ja - Gigabit Ethernet |
| LAN-Controller | Broadcom BCM5720 |
| Ethernet Schnittstelle | Gigabit Ethernet |
| Technische Details | |
| Hersteller | Supermicro |
| Erweiterungssteckplätze | |
| PCI Express x16-Steckplätze (Gen 5.x) | 3 |
| PCI-Express x8-Slots | 2 |
| BIOS | |
| BIOS-Speichergröße | 32 Mbit |
| BIOS-Typ | AMI |
| Systemverwaltung BIOS (SMBIOS) Version | 3.5 |
| ACPI-Version | 6.4 |
| Gewicht und Abmessungen | |
| Breite | 304.8 mm |
| Tiefe | 256.5 mm |
| Merkmale | |
| Motherboardformfaktor | ATX |
| Motherboard Chipsatz Familie | AMD |
| Komponente für | Server |
| Betriebsbedingungen | |
| Betriebstemperatur | 10 - 35 °C |
| Luftfeuchtigkeit bei Lagerung | 5 - 95 % |
| Relative Luftfeuchtigkeit in Betrieb | 8 - 90 % |
| Temperaturbereich bei Lagerung | -40 - 70 °C |
| Interne E/A-Anschlüsse | |
| Zahl der Chassisventilatorstecker | 6 |
| TPM-Anschluss | Ja |
| USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse | 2 |
| SATA III Anschlüsse | 8 |
| E/A-Anschlüsse auf der Rückseite | |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 6 |
| Anzahl LAN-Anschlüsse (RJ-45) | 1 |
| Anzahl VGA (D-Sub) Anschlüsse | 1 |
| Anzahl COM-Anschlüsse | 1 |
| IPMI LAN (RJ-45)-Anschluss | Ja |
| Speicher-Controller | |
| Speichermedien Typ | HDD & SSD |
| Speichermedien Schnittstellen | SATA III, M.2 |
| Maximale unterstützte Anzahl der HDD | 8 |
Keine Maßangaben verfügbar.
